Source for carbon Corse fairing

marvin

SPS wroteWell...... I did a LOT of yelling and pointing...... 😉

😁 OK, time to move on.

desmo57

erthmvr888 wroteHere's a couple of pictures of a RRR as it came out of the crate, Competition Cycle in New York had it for sale at the time, $33,000.00 was the price. I had four kids just getting ready for collage ( that did some major wallet violating, I had all 4 there the last year) so I had to pass. Not sure it helps the screen debate but thought I would post anyway Trav

...and that's the first time I've seen an Agip sticker like the one on the righthand fairingpanel on a brand new racing! 😁

851corsa

desmo57 wrote...and that's the first time I've seen an Agip sticker like the one on the righthand fairingpanel on a brand new racing! 😁

Carbon brake rod too!

Terry

erthmvr888

MarkT wroteTrav-- you had four at one time-- and I thought two were bad-- good for you! Here are a couple others of the same bike to add to yours. I was in the same position--$33K was --and still is-- a big wad . Did you talk to Augie (sic) at the time. I think they were called Ghost Motors way back- interesting place.

Hi Mark, I saw a ad in Walnecks? cycle trader (1996), Augie had listed 2 SP3's, a SP2 along with the RRR, 89 corsa (that Ferracci race in 1990) some F1 's and bevels and others, My friend talked to him, we were after the SP3's but they were already sold. He mailed us a list of what he had left along with the photos of the RRR and 1989 corsa 001 ( I know there is a 001 at the Ducati Museum, thats how murcky some of this vintage stuff gets) that was sold at a Bonhams Auction last year in Cal. I have never seen a another Agip sticker like that either maybe Augie added the formula moto part. He did tell my friend that it was unused/new . The photos are dated 95. The shipping crate with all the spares that were supplied came with the bike.

Trav

tubbylad

I know its an ancient thread bit did the original question get answered - I'm looking for a set of preferably pre preg, not wet lay, carbon panels that eliminate the cross support in the upper nose cone.
Thanks
Martin

stiglarsenDK

Nose cone stiffness

Here is my take on the nose cone stiffness issue.

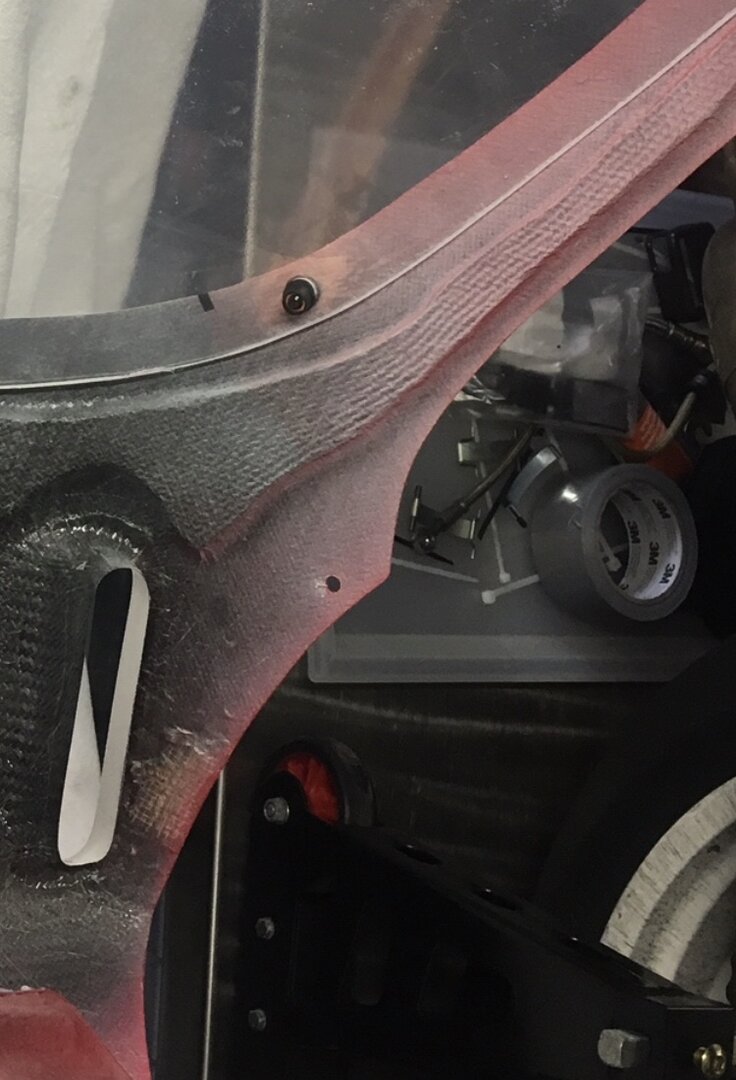

Picture 1, org corse nose cone. Very thin and super light, inside a rather thick beam, 7-8 mm. Looks like a foam profile covered w CF.. ( not very nice finish inside, but stiff enough I recon.
I have been thinking doing similar on the cheap GF cones.. a foam ie Polypropylene** covered w 1 layer of fine wet fiber.. (it's all about making a profile with a stiff skin/shell.
** a PP would not collapse due to resin / chemical exposure, where many materials ie eps, abs etc will melt in seconds.

My 2 cents & legal disclaimer ; I have not done it yet ;-)

MarkT

stiglarsenDK wroteHere is my take on the nose cone stiffness issue. Picture 1, org corse nose cone. Very thin and super light, inside a rather thick beam, 7-8 mm. Looks like a foam profile covered w CF.. ( not very nice finish inside, but stiff enough I recon. I have been thinking doing similar on the cheap GF cones.. a foam ie Polypropylene** covered w 1 layer of fine wet fiber.. (it's all about making a profile with a stiff skin/shell. ** a PP would not collapse due to resin / chemical exposure, where many materials ie eps, abs etc will melt in seconds. My 2 cents & legal disclaimer ; I have not done it yet ;-)

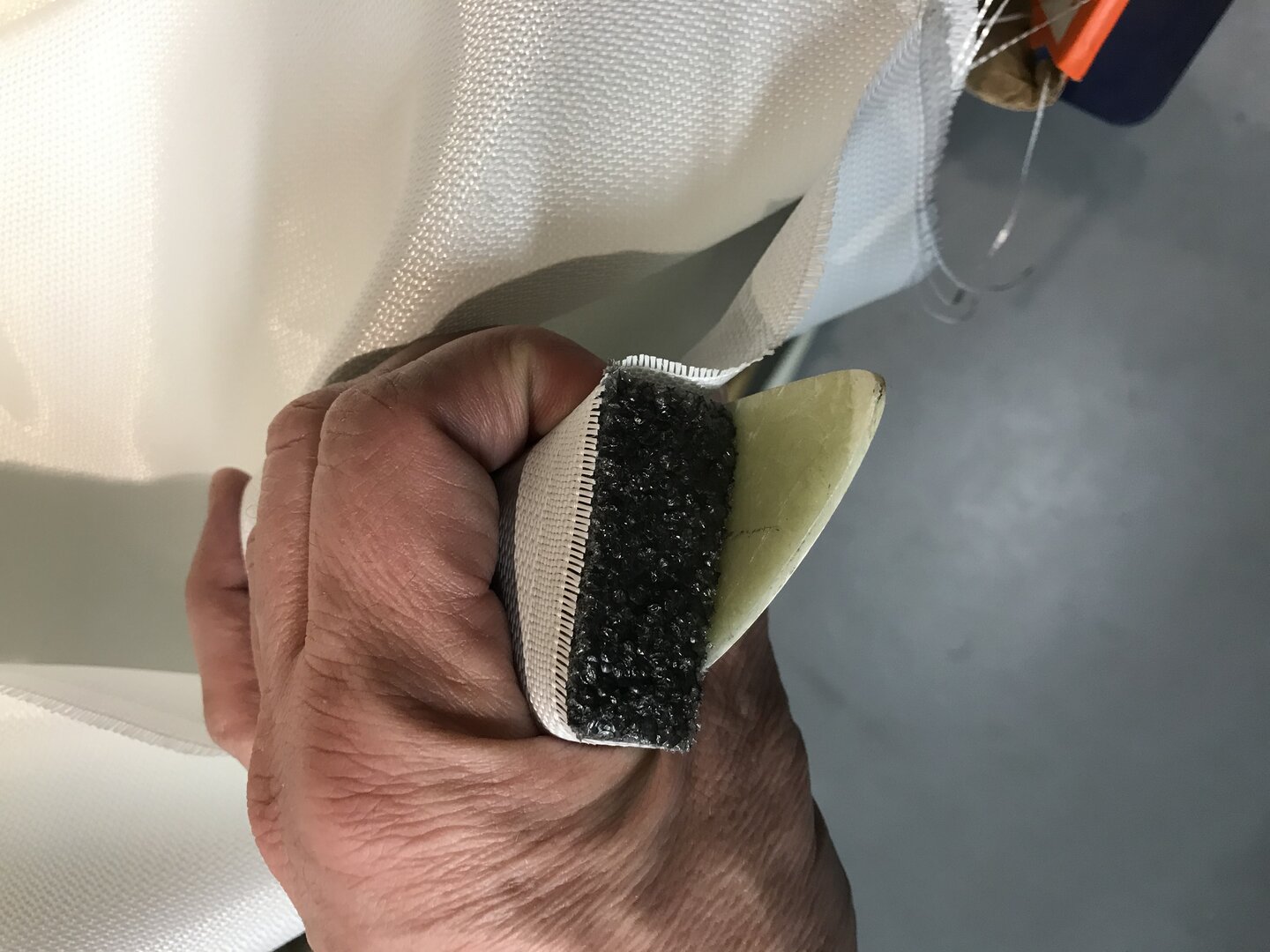

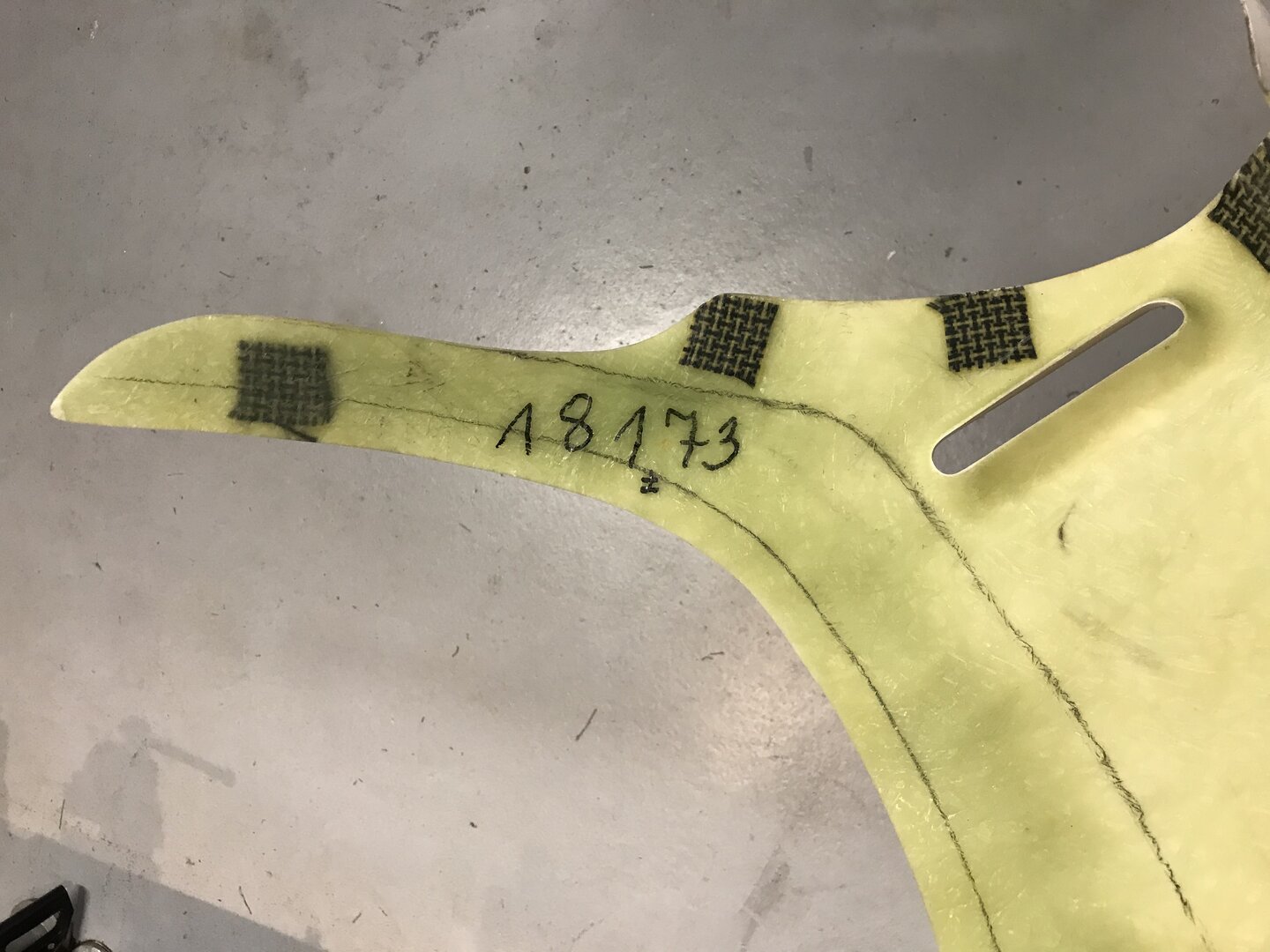

Stig-- the factory used thin Hexel sheet for the reinforcement- glued it down and then laid a sheet of carbon cloth over it. This was a common construction practice in the aero wolrd.

stiglarsenDK

Honey comb - yes !

yes mark , a honeycomb material would be the way to go .. just browsed the net, plenty of sources of 1/4 inch 3D bendable sheets out there .. I'll have a go at it when time allows

tubbylad

Great feedback chaps , thanks.

Any one have details of the/a supplier of the complete set of 888 corse fairings or any manufacturer with the moulds for a set?

Ducal

Corse Fairings

Google Franck Carbone, he is in France, I've had a couple off him with carbon V.
