Strada & SP5

Jack888

Can anyone list the visual differences between the 93 Strada and the SP5? Not interested in engine internals ect Also has the SP5 a floating rear disk?

Cheers Jack

Jasper

SP5, off the top of my head:

1.bronze coloured fork bottoms
2.numbered yoke plaque
3. Öhlins rear shock
4. Cast iron full floating front discs
5. Underslung rear caliper
6. Aluminium subframe
7. Carbon 50mm hi level exhausts
8.single seat unit
9.Fixed Footpegs
10.Eccentric Adjustable Rear Rocker arm
11.Carbon Front Mudguard
12.
13.

Amended as people add things!

Jack888

Jasper wroteSP5, off the top of my head: 1.bronze coloured fork bottoms 2.numbered yoke plaque 3. Öhlins rear shock 4. Cast iron full floating front discs 5. Underslung rear caliper 6. Aluminium subframe 7. 50mm hi level exhausts 8.single seat unit 9. 10. 11. Those are the ones that come immediately to mind and are easily spotted.

Thanks mate, I'm trying to get my strada as close as I can to replicate the sp5, I'm getting there

Mr.R

Non folding foot pegs,
Vented outer clutch cover.

Steve R

henk

Non folding foot pegs?did not know that either.

Henk!!!

stafford

Adjustable rear arm/hoop assembly

hindsight

Twin injectors, though not easily seen!

Jasper

Mr.R wroteNon folding foot pegs, Vented outer clutch cover. Steve R

Clutch cover wasn't vented. SP4 was.

It was carbon though.

Jasper

hindsight wroteTwin injectors, though not easily seen!

Along with G cams,ti rods etc! 😁

stiglarsenDK

Airbox

Airbox on SP5 is different, not sure if the Airbox made it to late 94 Strada's but i recall seeing it on SPO/LTDs

Other than that, i think all differences are now covered .. Engine aside.

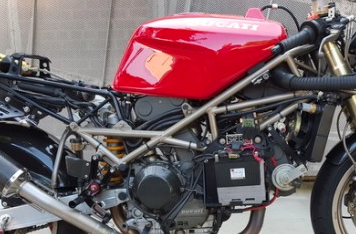

Update 1, picture from 94 LTD.. Airbox from SP5

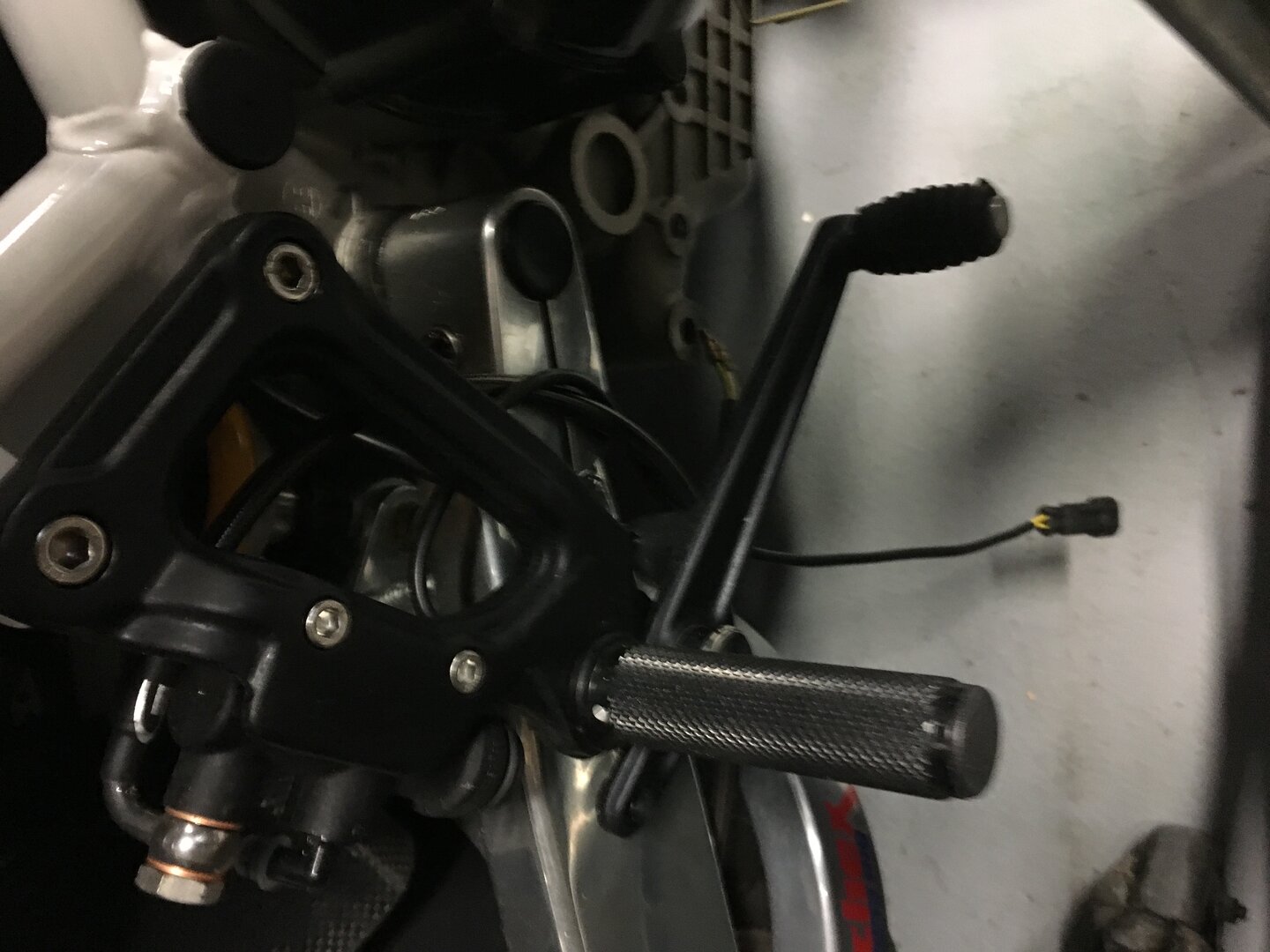

Update 2, SP5 rear set added. fixed pegs

RS02

Carbon front mudguard.

Michelin stickers on rear swingarm.

Exhausts end cans are carbon termignoni (as well as being high level).
