Engine Casings

Ducal

G'day,

Can anyone give clarity as to which engine casings are compatible with late 888 Racing. I want to build 955, I have most parts but not sure on the best casings, not too concerned about period parts, just the most durable. Any help would be appreciated.

hauge

I believe st4 is the latest cast with the same stud pattern and swing arm bearing as the 851/888.
st4s have the 996 stud pattern.

jakepeewee

hauge wroteI believe st4 is the latest cast with the same stud pattern and swing arm bearing as the 851/888. st4s have the 996 stud pattern.

I think the S4 cases are the same as the ST4 cases, those are supposed to be the strongest cases.

Jacco

Ducal

Thanks guys got to get searching

hauge

Did the st4/s4 ever get oil cooling on both pistons?
If I remember corect most of the engines only had oil cooling on the front cylinder until??
My 748R 01 does not have the rear cylinder oil cooling whilst my (what ever) ST4S cases in my 888/1026 have the cooling on both.
I belive the ST2 engines came in both types.

Mr.R

The late NOS ST4 cases that I have for my 955cc build, have the oil cooling jets under both front and rear pistons.
...and they spray from both sides of the crankcases.

Steve R

Ducal

Steve what is the part number for the casings please if you can make time to check

stiglarsenDK

S4 and ST4 cases

S4 22520411A 2001
Oil drillings on both

ST4 22520451A 2000
Only oil drilling on horisontal

Ducal

STIG .......Legend

brad black

i have a used set of 2002 s4 cases with the squirters on each side.

stiglarsenDK

brad black wrotei have a used set of 2002 s4 cases with the squirters on each side.

S4 2002 cases are : 22520771A (NEW still available) Hurry up before they sell out :-)

jakepeewee

Can anyone tell me what year my S4 cases are? Ther are supposed to be 2002 cases.
They are numbered RB81002479. Bought them of ebay, sourced in the US.

stiglarsenDK

jakepeewee wroteCan anyone tell me what year my S4 cases are? Ther are supposed to be 2002 cases. They are numbered RB81002479. Bought them of ebay, sourced in the US.

Please upload some good fotos incl all markings , ill compare with my cases...

jakepeewee

stiglarsenDK wrotePlease upload some good fotos incl all markings , ill compare with my cases...

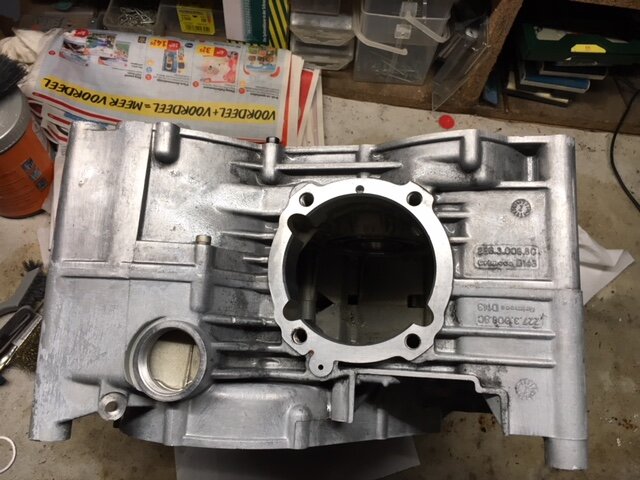

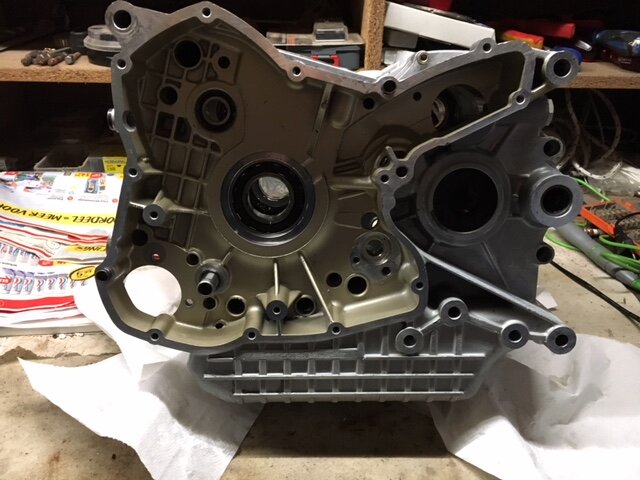

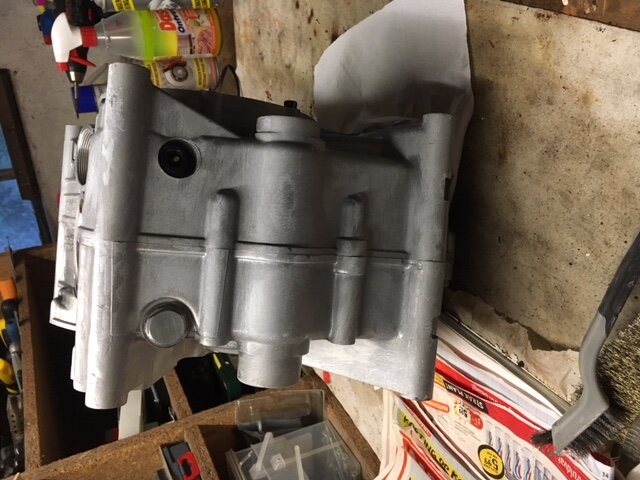

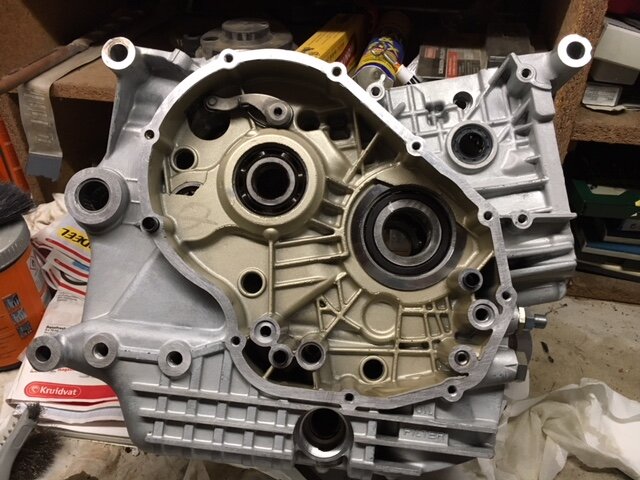

I hope these are good enough to be able to recognize the MY.

Regards,
Jacco

stiglarsenDK

jakepeewee wroteI hope these are good enough to be able to recognize the MY. Regards, Jacco

Hi Jacco

Do you have the oil drillings on both vertical and horisontal ?

If yes, they are 01 or later...

Just took a look at my 00 and 01 cases... no major differences .. but check drillings as a start

jakepeewee

stiglarsenDK wroteHi Jacco Do you have the oil drillings on both vertical and horisontal ? If yes, they are 01 or later... Just took a look at my 00 and 01 cases... no major differences .. but check drillings as a start

You gotta help me a little more here. What exactly am I looking for? Where do I find those drillings? I read about those drillings before but didn't understand where to look.

stiglarsenDK

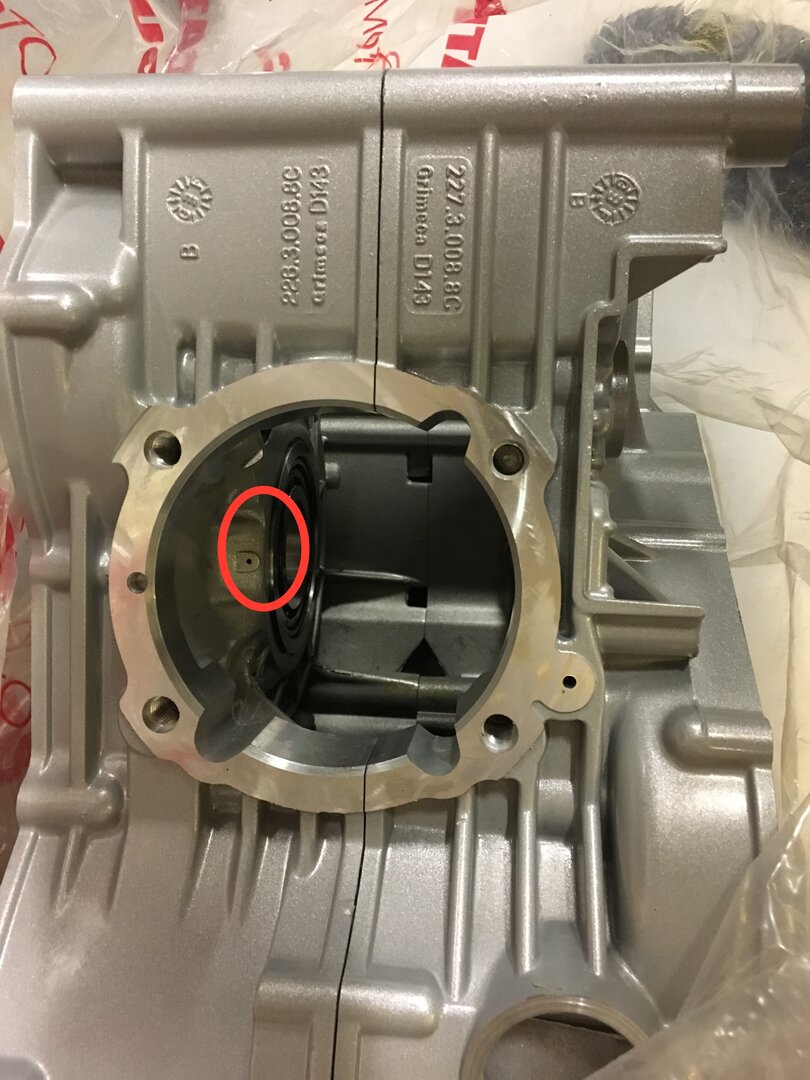

2001 cases

Here you go...

this is a 2001 set... these drillings are done for both cylinders

yours ?

jakepeewee

I just see a drilling in the horizontal cilinder, not in the vertical one. So before 2001?

stiglarsenDK

jakepeewee wroteI just see a drilling in the horizontal cilinder, not in the vertical one. So before 2001?

Yes, belive they are .. ;-(
