Sp5 exhaust headers

Jack888

Hi can anyone advise me on the diameter of the original sp5 exhaust headers?? Also photo of bike if possible

Ta Jack

stiglarsenDK

Jack888 wroteHi can anyone advise me on the diameter of the original sp5 exhaust headers?? Also photo of bike if possible Ta Jack

SP (2?) 3,4,5 Headers
Pipe : 45 mm
Exit : 50 mm

Canister 50mm all the way

Later versions vertical / rear pipe has CF heat shield studs..

Jack888

stiglarsenDK wroteSP (2?) 3,4,5 Headers Pipe : 45 mm Exit : 50 mm Canister 50mm all the way Later versions vertical / rear pipe has CF heat shield studs..

Thanks mate, That's helpful,
Are the 3, 4 and 5's all exact same or slightly different (interchangeable)?

stiglarsenDK

Jack888 wroteThanks mate, That's helpful, Are the 3, 4 and 5's all exact same or slightly different (interchangeable)?

Interchaneable : YES, front and rear section from SPs can be interchanged..

Exact same ... No, some are missing studs for CF shield (vertical/rear section) and holes for exhaust gas analysis (both sections)

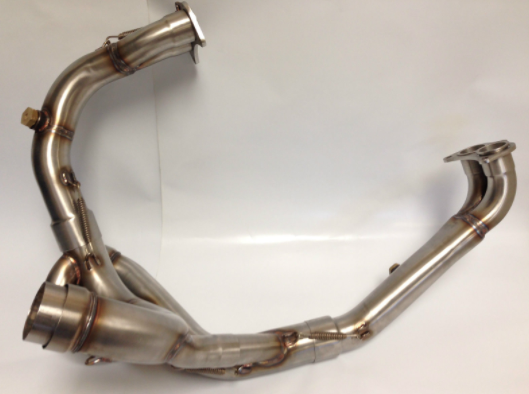

I belive the GIO GA MOTO can be interchanged as well (see foto of this aftermarked set) This one has better passage @ the joint section ...

Jack888

stiglarsenDK wroteInterchaneable : YES, front and rear section from SPs can be interchanged.. Exact same ... No, some are missing studs for CF shield (vertical/rear section) and holes for exhaust gas analysis (both sections) I belive the GIO GA MOTO can be interchanged as well (see foto of this aftermarked set) This one has better passage @ the joint section ...

perfect thanks again for the info, I'm just looking at what options I have as I'm not wanting to go and knacker up low to mid range power, Trying to decide what to replace my small dia strada pipework with

stiglarsenDK

Jack888 wroteperfect thanks again for the info, I'm just looking at what options I have as I'm not wanting to go and knacker up low to mid range power, Trying to decide what to replace my small dia strada pipework with

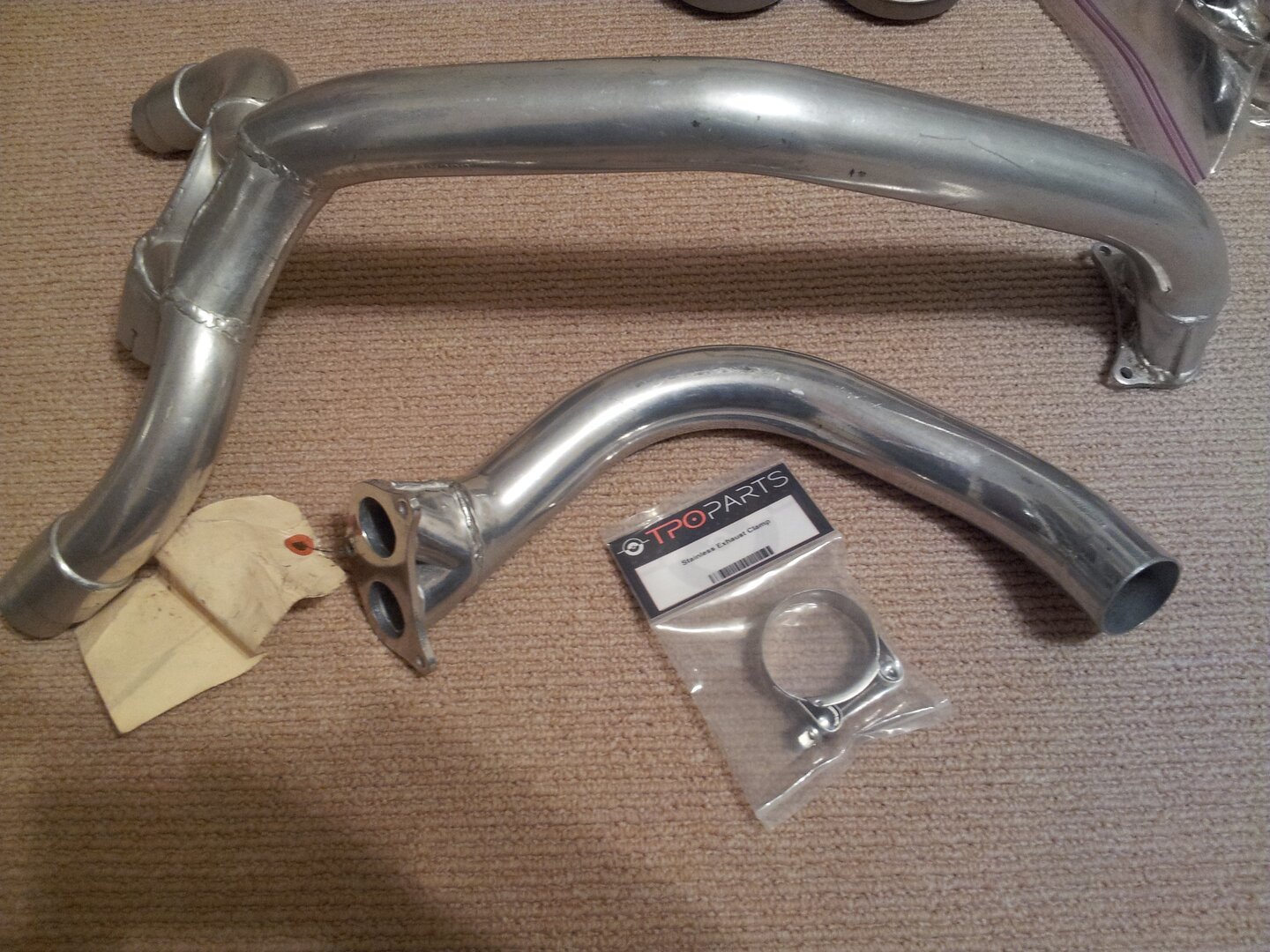

These headers from SIL MOTO comes up from time to time... new or used... (500-800 EUR range)
Think they are good value for money

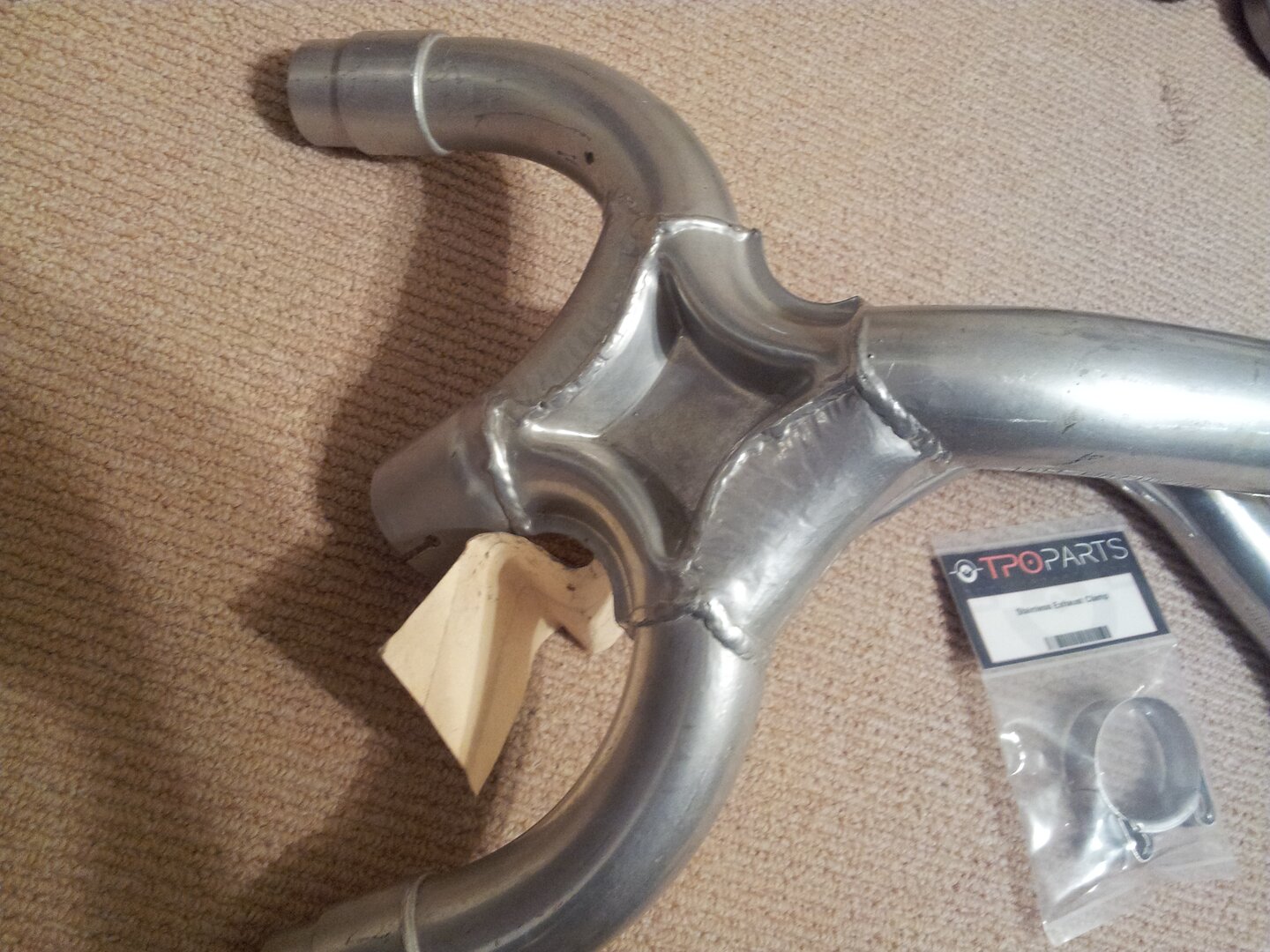

OEM collector cut open .. pic 2

MitchB

I have a set of header pipes

Bought these - from someone here I believe - a few years ago. I got them for an 851 I sold over two years ago.

I don't think they are Giaco Moto nor are they spaghetti type, but they are indeed 45 mm diameter. They are ceramic coated in silver and are as new otherwise.

I'd be happy to sell them. $400.00 and I'll cover shipping in the US.

Contact me .

stiglarsenDK

MitchB wroteBought these - from someone here I believe - a few years ago. I got them for an 851 I sold over two years ago. I don't think they are Giaco Moto nor are they spaghetti type, but they are indeed 45 mm diameter. They are ceramic coated in silver and are as new otherwise. I'd be happy to sell them. $400.00 and I'll cover shipping in the US. Contact me .

If they have 50mm header connection ? they are very close to the SP5 style .. yet after marked of some sort..
