WTB 91 851 headlight support frame

Ducal

G'day looking for the cockpit framework [ headlight / fairing I think ] for a 1991 851 for a friend if anyone can help. He bought a basket case and the radiator and this frame were missing.

Any help would be appreciated

Rudy

radiator

I have a radiator for sale.
When interested mail to info@duc-only.nl

Ducal

Righto thanks mate I have forwarded your contact

Ducal

1991 Headlight frame still wanted. Please reply here or direct to Anth at Corse Motorcycles in Perth.

Whitto1

Headlight frame

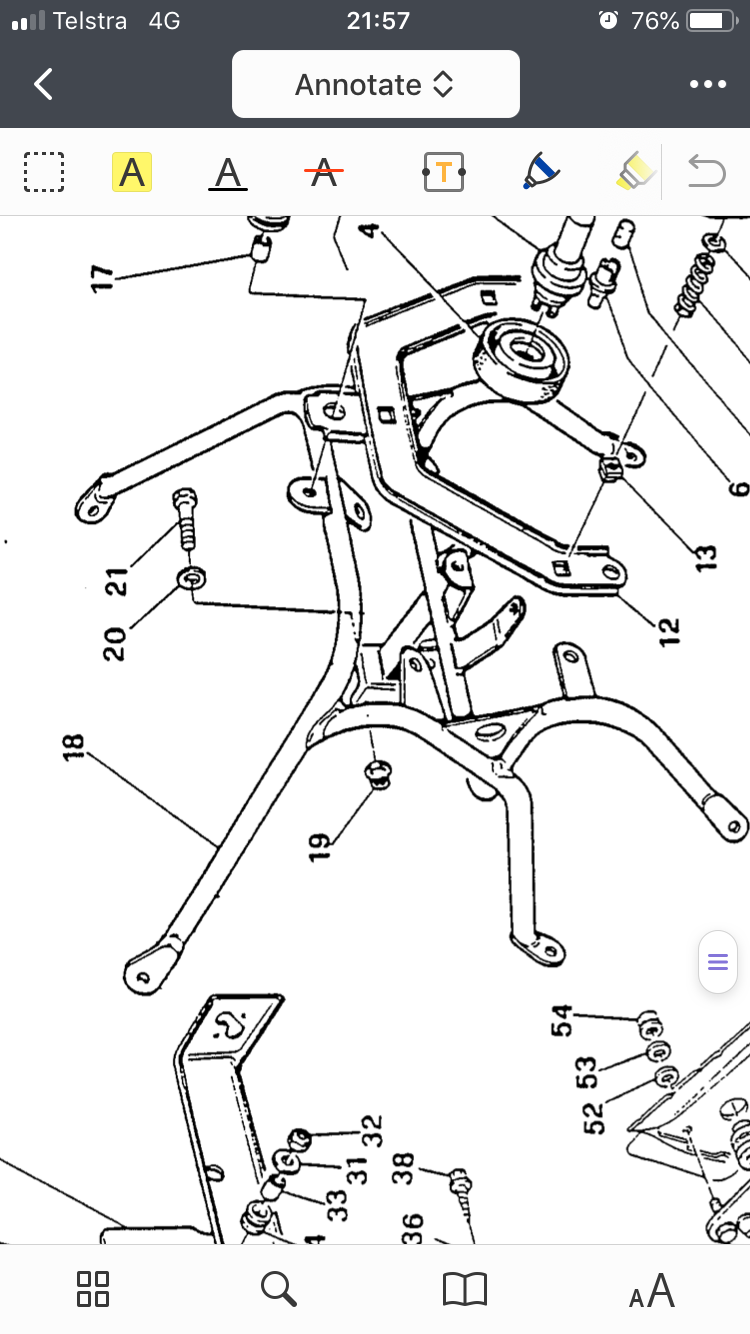

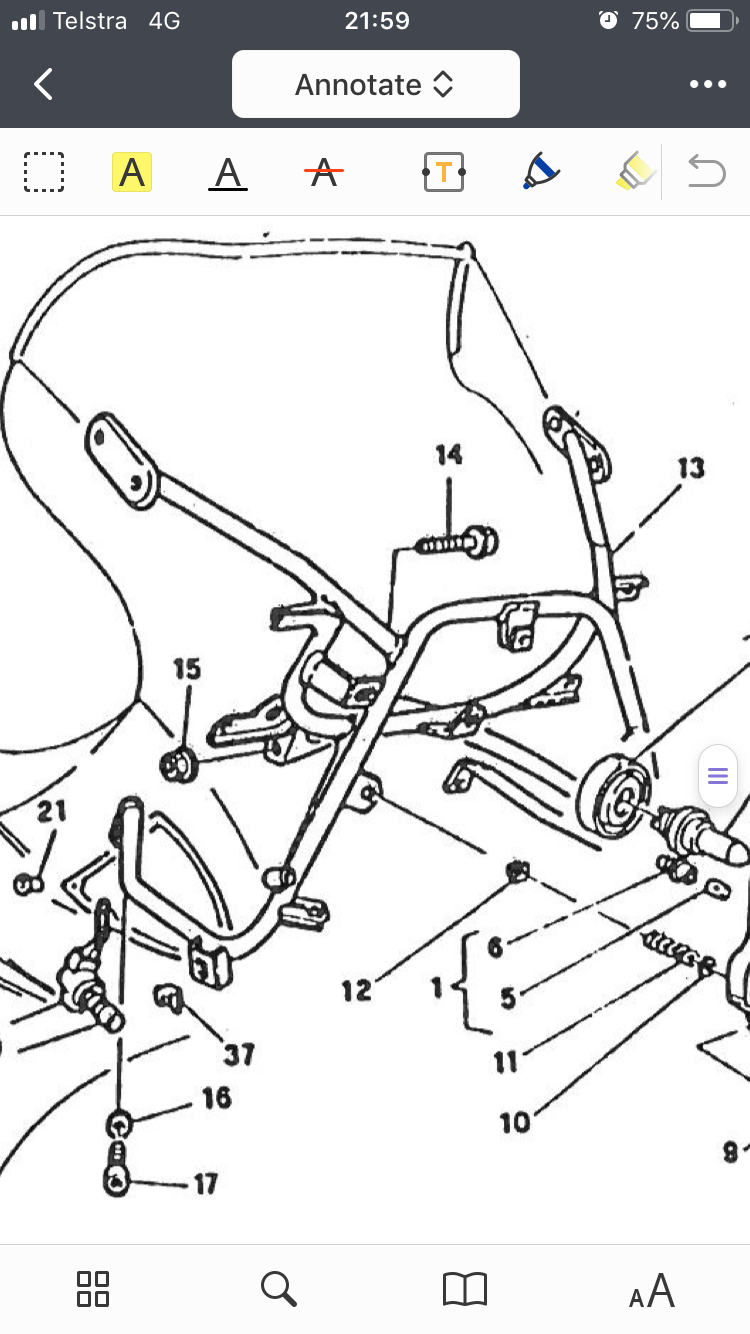

My book shows the frame #82910231DA for the '94 Strada 888. How do you tell the difference?

griff851

Whitto1 wroteMy book shows the frame #82910231DA for the '94 Strada 888. How do you tell the difference?

First one is 88 second is 92. Part no’s 82910231A and 82910231D.
The 90 one has rings welded on to side to hold the ram tubes.
I have a 90 race alloy one that also has ram tube holders. No idea of its or the 89-90 part number
The 88 race alloy one appears to be 82910021A
That’s pretty much all I have on front subframes if that helps.

Whitto1

frame,

griff851 wroteFirst one is 88 second is 92. Part no's 82910231A and 82910231D. The 90 one has rings welded on to side to hold the ram tubes. I have a 90 race alloy one that also has ram tube holders. No idea of its or the 89-90 part number The 88 race alloy one appears to be 82910021A That's pretty much all I have on front subframes if that helps.

Thanks: the project 851/? was missing the frame and the replaced one is the later style. The fairings are also a work in progress to get them to align but needs to be tweeked to get them to fit........
