Help with these.

surfking

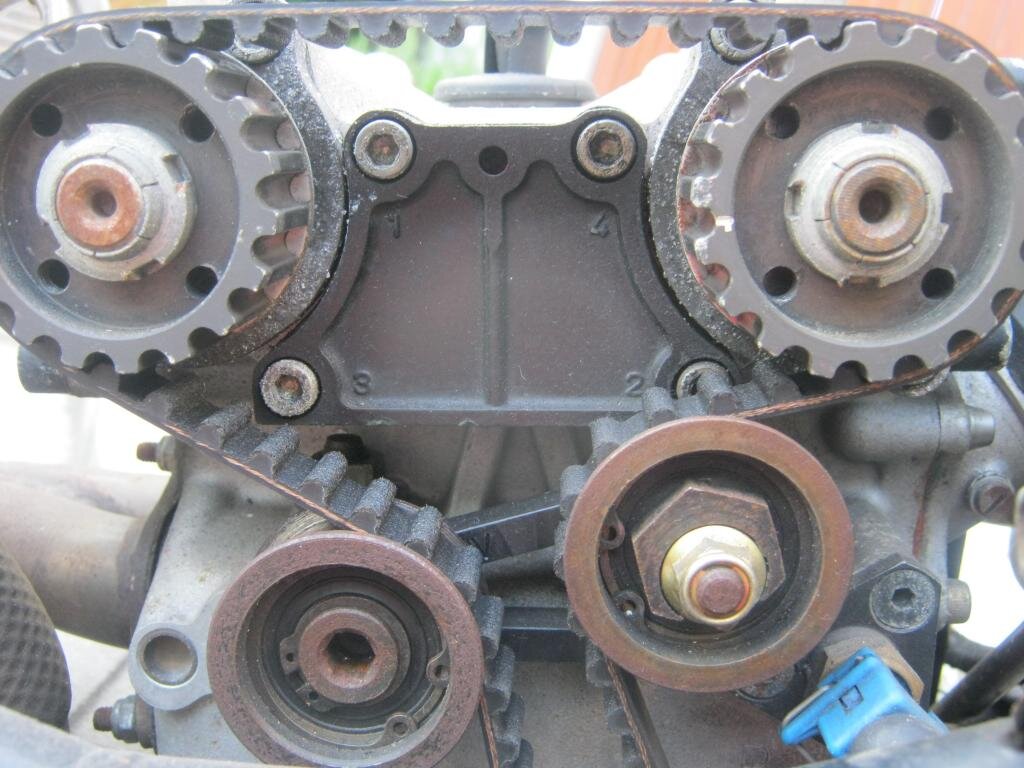

If any one can help, has for sale etc looking for a pair of these covers.

Regards

marvin

What engine. I have quite a few from desmoquattro's

surfking

marvin wroteWhat engine. I have quite a few from desmoquattro's

To go on the 888

marvin

I'm sure that I have some. Let me check and get back to you.

marvin

Sorry didn't have time to look today. but I'm sure I have them.

griff851

I've got a pair of grey ones. I think they are for an 888. The rear is slightly modified to fit under the RR tank. See what Marvin turns up first.

BABA

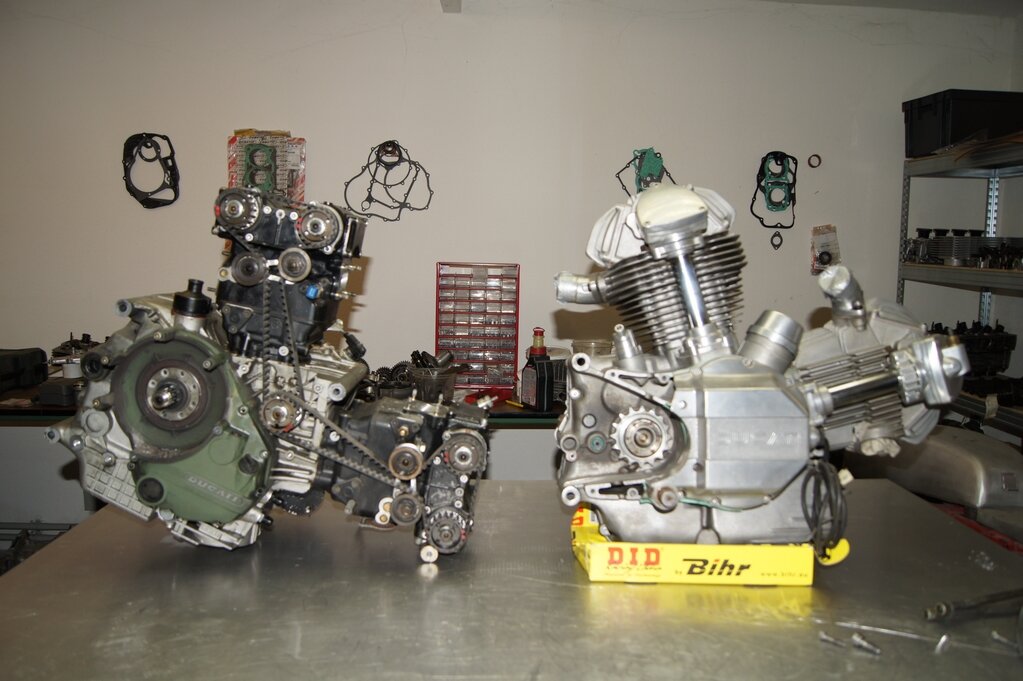

These are 851 engine's version (machined to cut the rear belt cover part)

888 version is slightly different (here std uncutted)

The left side part was also used on the belt side with a plug screw on 888 R to replace this part.

surfking

Hi Baba

So not a part number then? Just what teams did?

Nick

BABA

R91 was delivered with standard and uncutted black road parts (24710061A).
When you see cutted parts, it is not a "special" part made for race bikes (except magnesium version), it is just a modified road part (as I did for my Racing 91).
It was made by the factory or team/tuner directly (it's very easy to do, you just have to have a milling machine).
Even for magnesium parts, the mould was the same as the road part, and only material injected was different.
Sometimes you find uncutted magnesium parts for sale too.
They were in magnesium only on Factory bikes at the begining (and probably on some customers bikes if you pay for it).
They were already machined in 1988 on Factory bikes, but still in aluminium, not magnesium.
It seems on pictures that they used magnesium parts first on the last version of 1990 factory bikes (the first version with higher exhaust pipes and X ram air in carbon fibers, appeared for Monza 90),
R93 had 24710701A parts. On the scheme, it looked that they were uncutted too.
But probably they used a previous drawing to illustrate the catalog. On pictures of R93 assembled in the factory, they were already cutted.
They were in magnesium in 93 on customers bikes.
I'm not sure how it was on R92, I had no pictures enough detailed to see if they were machined and in magnesium or aluminium (I haven't the catalog parts to compared references too).

griff851

I misunderstood, thought you wanted belt covers. 😄

ajcorse

Magnesium head covers

I have some magnesium covers from 851 Racing for sale. If zou interest then writte me PM or email.

regards Jan

marvin

Now I'm confused. Do you want belt covers or those plate covers?

surfking

marvin wroteNow I'm confused. Do you want belt covers or those plate covers?

851 Plate covers, I can machine as per Baba's post.

Thanks Marvin

BABA

So here are dxf file for machining them if you have access to cnc machine 😄

You have the drawing to make a block for fixing the part and the outside line to cut it on the same dxf file.
I gave you the plate and the camshaft cap if you want to cut them too.

Modified parts.rar

12.41KB

marvin

I have a pair ff of a later engine(just like the one that BABA posted. You will have to machine them. They are silver, not black.

You can have them if you want to pay postage. If so PM me your mailing address (I may have t but not sure)

marvin

I just found a set of 851 heads that I forgot I had. They have those covers on them too. Just like the ones in your picture. Either will work. Your choice.

surfking

Thank you everyone as luck would have it I sourced some less than 10 miles away.

Baba, thank you for the files, I'll see what the local engineering shop can do.

Thank you again everyone.

Nick
