Corse dash

surfking

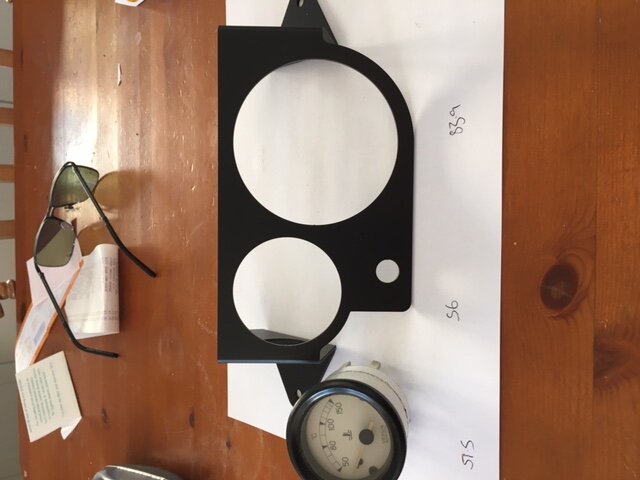

Got a repro dash as pictured but can anyone confirm the sizes, I only have temperature gauge from road bike but no tacho, however the hole fot the temperature gauge appears to be to big.

Was there a different one for race bikes, and can anyone tell me what the size of a race tachometer? I thought it would be same as road version which I think is 80mm.

Any help greatly appreciated.

stiglarsenDK

surfking wroteGot a repro dash as pictured but can anyone confirm the sizes, I only have temperature gauge from road bike but no tacho, however the hole fot the temperature gauge appears to be to big. Was there a different one for race bikes, and can anyone tell me what the size of a race tachometer? I thought it would be same as road version which I think is 80mm. Any help greatly appreciated.

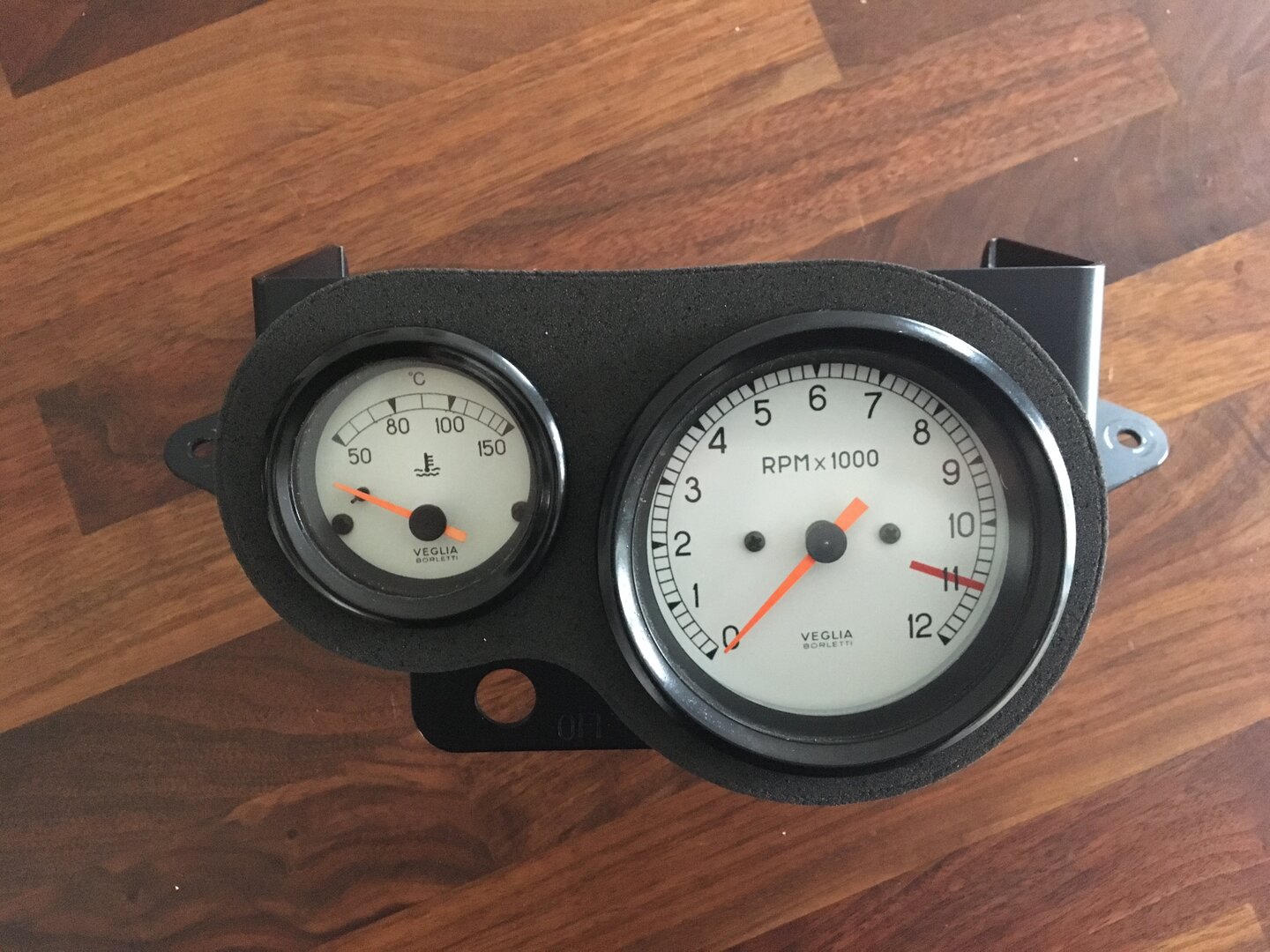

Hi, See my post few days back...

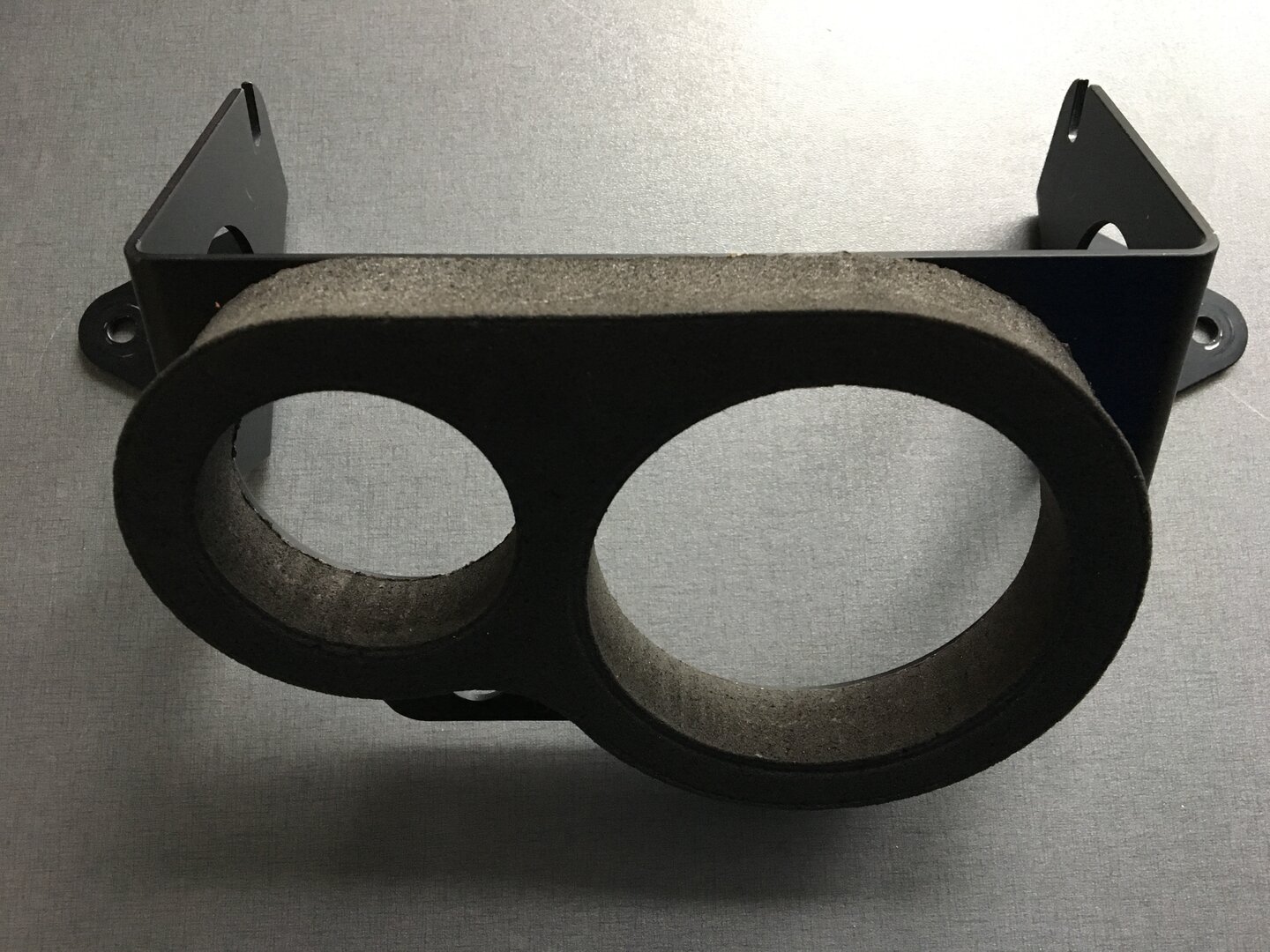

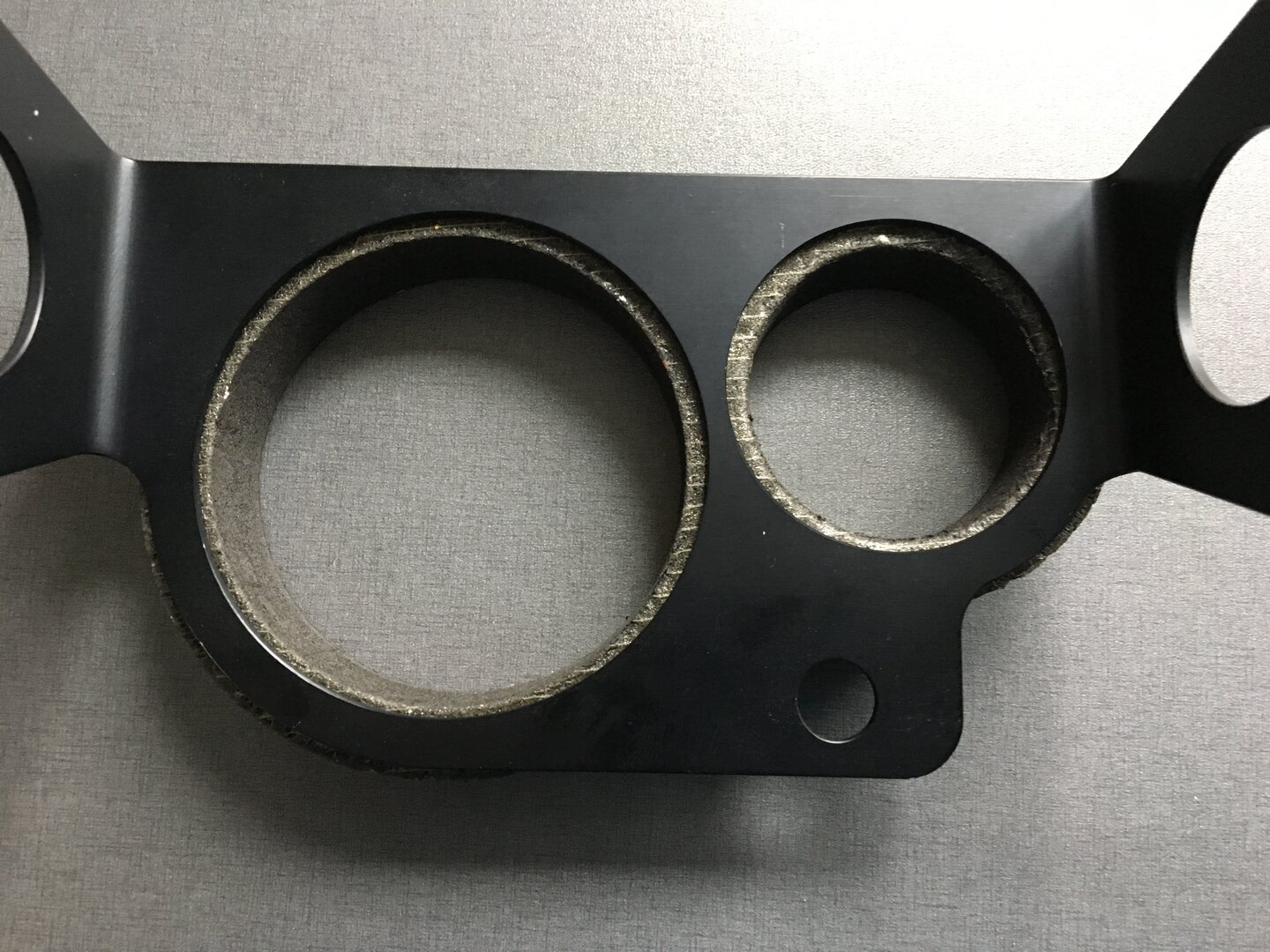

You need the sponge frame ! (Road and race temp gauge same one)

Hope this clarifies , can measure if you still want ?

surfking

Corse dash

Thanks For the pictures Stig, really helpful. I'll go on the hunt for a foam dash part then.

Thank you

Nick

stiglarsenDK

surfking wroteThanks For the pictures Stig, really helpful. I'll go on the hunt for a foam dash part then. Thank you Nick

Hi Nick...

I don't think you will find one !, but i can send you the outlines and you can cut it out from a 20mm sponge sheet.. ?

The one i have is NOS (its punched out) but not that nice of a finish (Hot wire or a fine saw cut, can do just as nice a part IMO) and for small money...

Stig

surfking

stiglarsenDK wroteHi Nick... I don't think you will find one !, but i can send you the outlines and you can cut it out from a 20mm sponge sheet.. ? The one i have is NOS (its punched out) but not that nice of a finish (Hot wire or a fine saw cut, can do just as nice a part IMO) and for small money... Stig

Yes please Stig.

Thank you very much.

stiglarsenDK

surfking wroteYes please Stig. Thank you very much.

MANUEL DXF ;-)

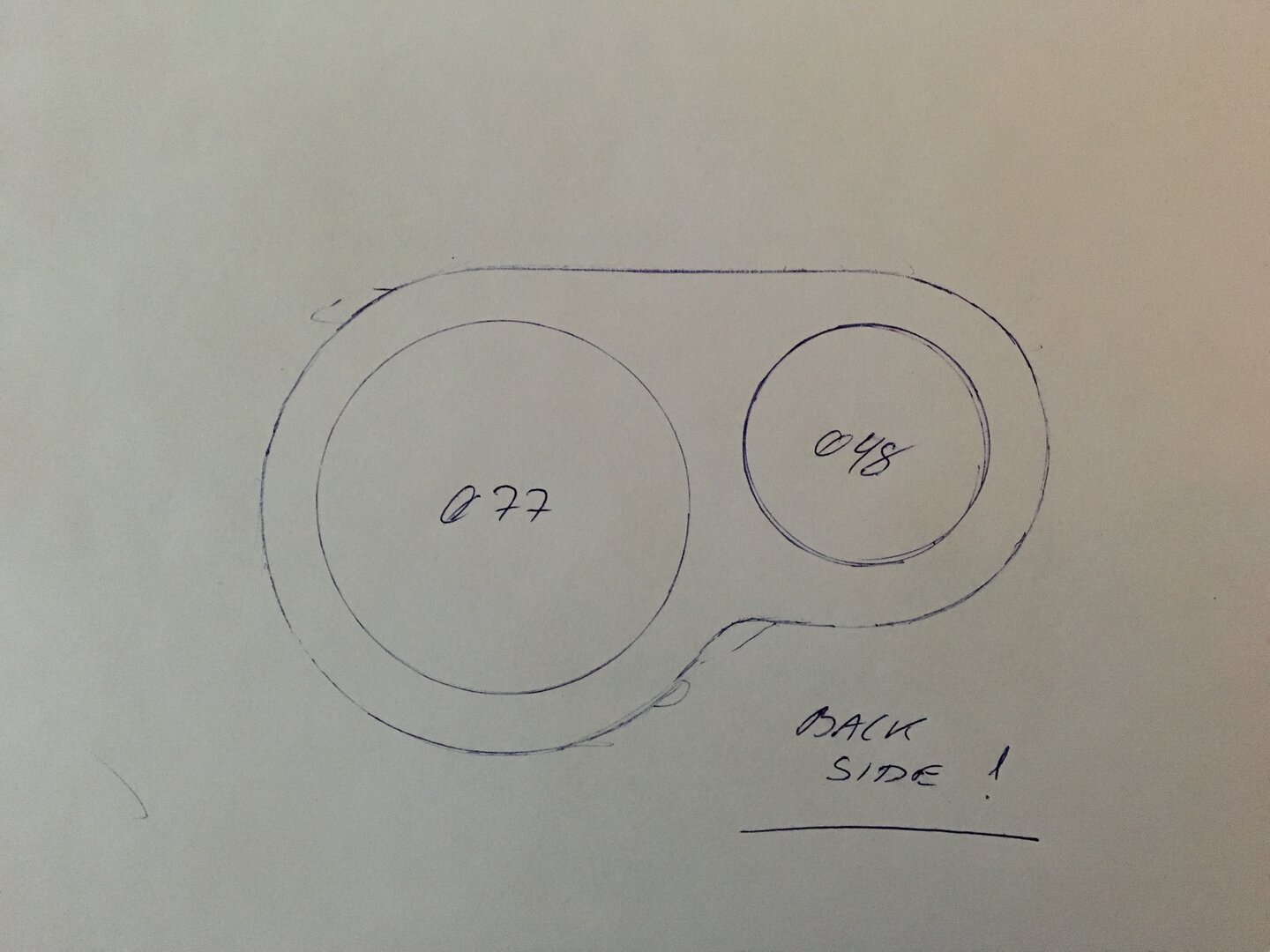

Here the outline... if you print out on paper and ensure holes are about the right size (scale your print if needed)... rest will be fine as well !

Good luck ... lets see/hear about the result :-) .. I have seen some foam sheets on EBAY UK..

Thickness : 20MM

NOTE : OUTLINE IS THE BACK SIDE !!

BABA

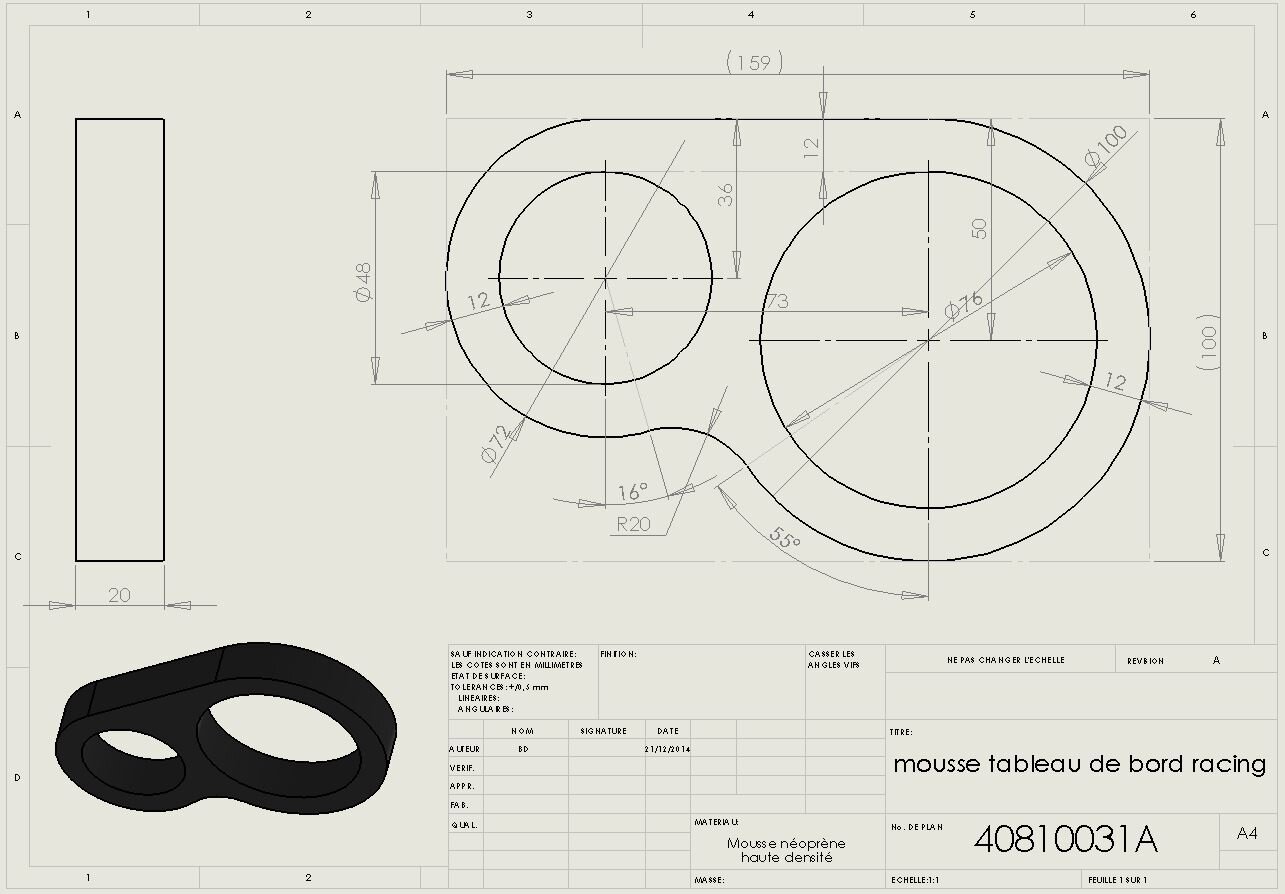

It could be easier with that ;-)

stiglarsenDK

BABA wroteIt could be easier with that ;-)

Thanks Baba, And even better !

Do you have any experience with the foam type ... the original seems like a thermoplast foam.. very easy to damage / deform. (I have been thinking trying some rubber foam, with less deformation tendency (i.e moss type)

BABA

Not at all. Mine is NOS too, as the alloy dashboard.
I haven't try to make another one. I just have redraw it in case of (and thinking that it could be usefull for someone else).

D4RKO

Can anyone tell me where to get a corse repro dash like this ?

surfking

Racing dash

D4RKO wroteCan anyone tell me where to get a corse repro dash like this ?

https://www.bursievolution.com/en/supporto-strumentazione-racing-ducati-851-888.html
