Early CF tank on later 888 Frame

stiglarsenDK

Hi

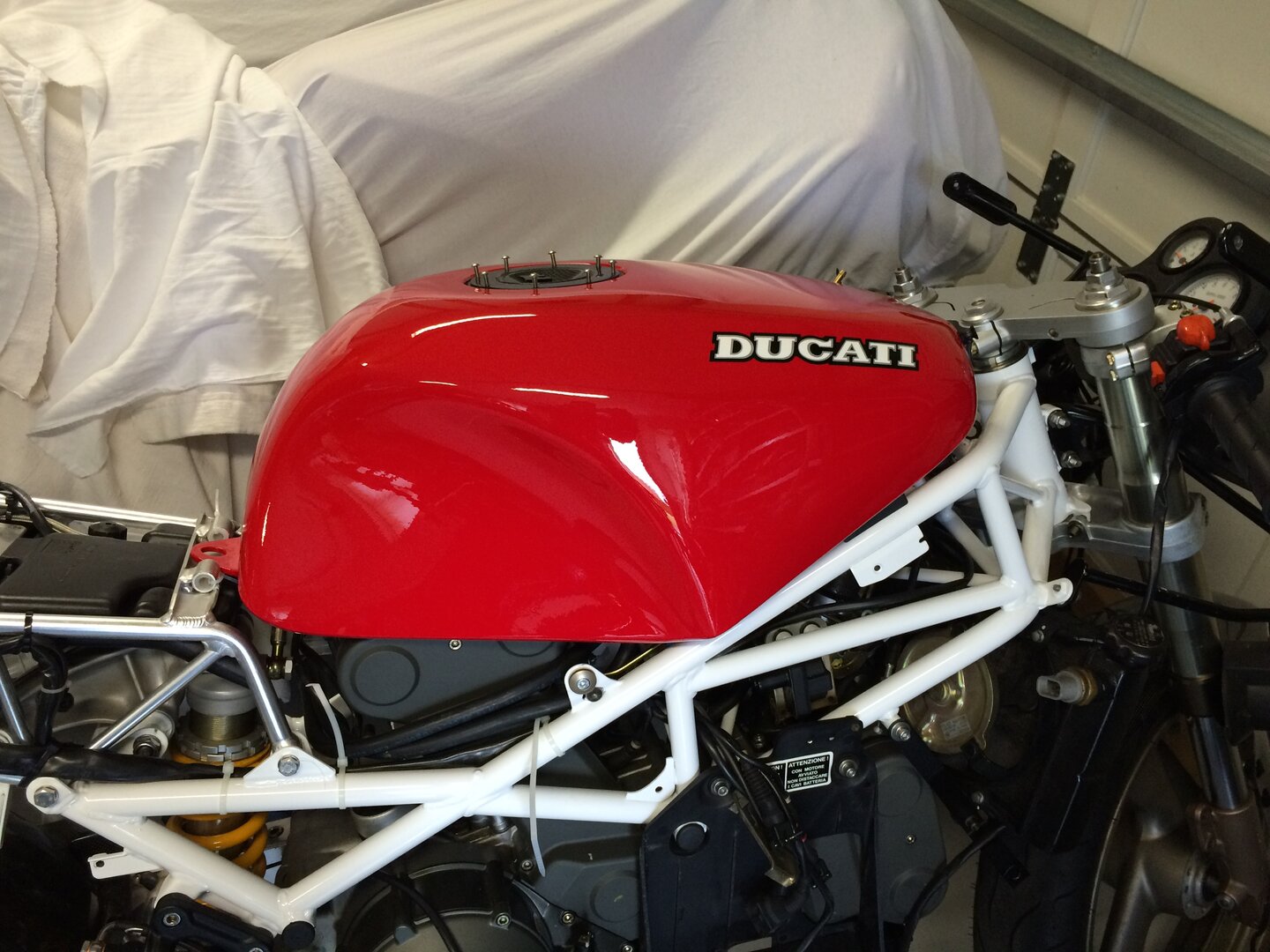

Found this beautiful early 91 CF NOS tank, and plan to use it for a 888R main frame/sp4-5 Alu rear frame..I wonder if a flip tank conversion / hinge of some sort has been thought out and done before, if yes it would likely be by some of you gents.
(I will NOT consider cutting/converting the tank it self)

The top side would also need some thinking as i don't have the holes for the tank stubs... i recon that the rubber blocks used on the steel tanks could be double sided...

Should any one of you have a later 888 CF race tank as spare and would consider a trade, I'm interested.

Br Stig

Jasper

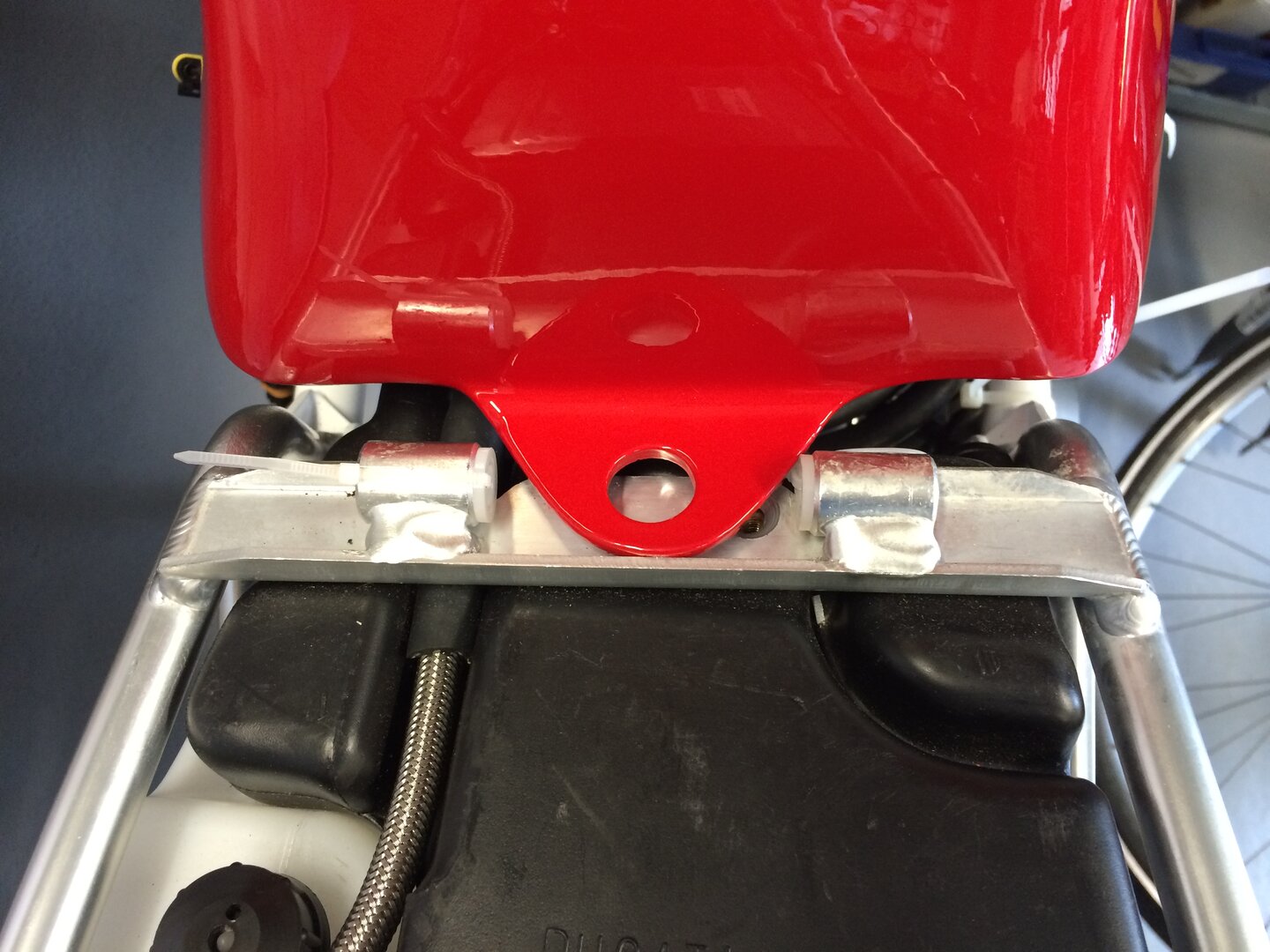

Yes. I have already done this.

stiglarsenDK

Jasper wroteYes. I have already done this.

Thanks Jasper... just what i was looking for... looks great.

How do you prevent rotation/lock the hinge when fliped up ?

what have you done in the front end to lock the tank / sides ways ?

Are you using the rubber straps to keep it down ?

Chees

Jasper

Hi,

I have made an adjustable tank stay to keep it up. I have the corsa tank, so have the bands at the front. This is under the tank.

MarkT

Very nice work Jasper-------

adie851

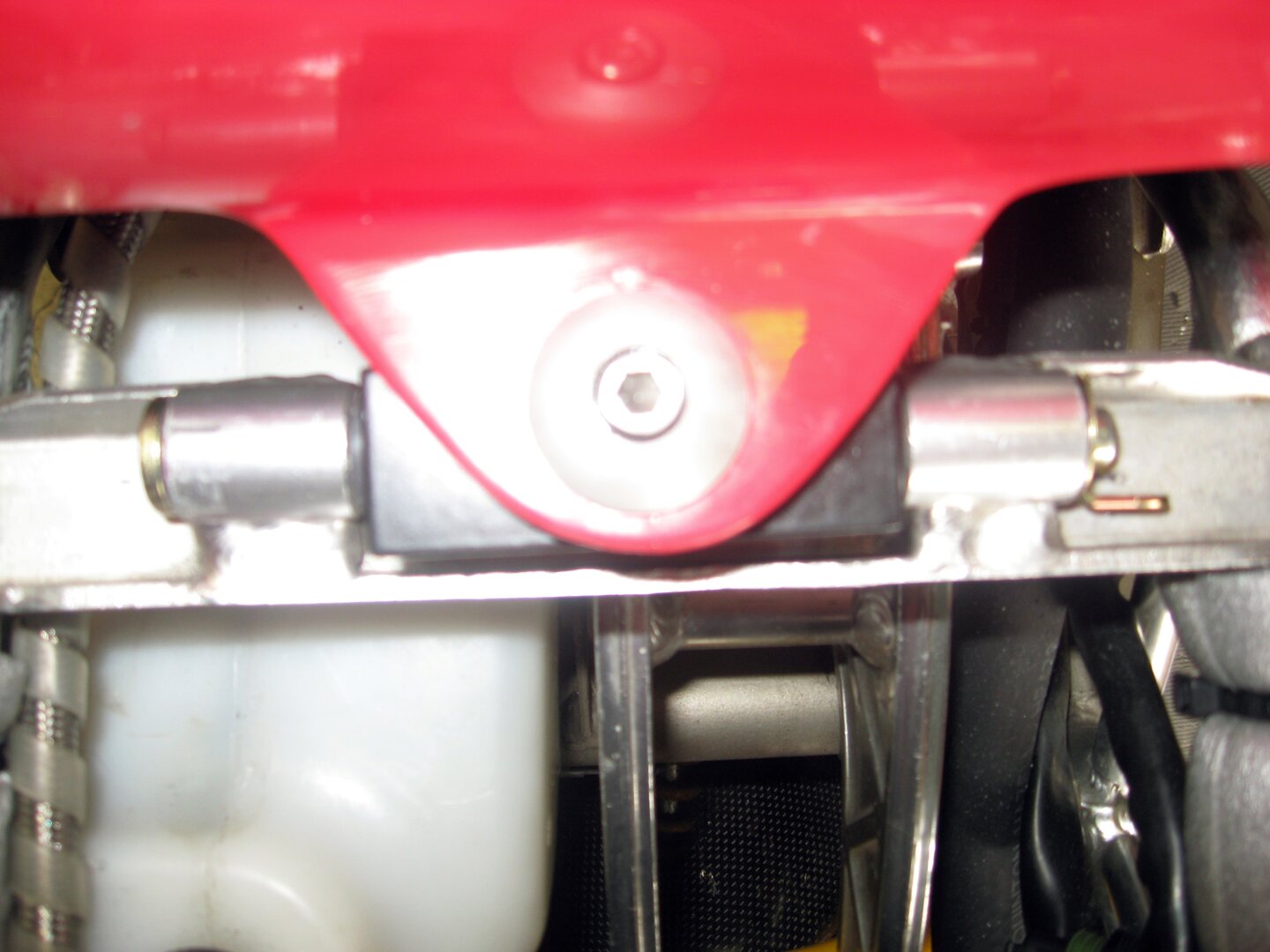

That looks neat mate, whats the material you've used to make the block for the tank to rest on at the rear mount ?

Cheers , Adie

adie851

Hi Jasper,

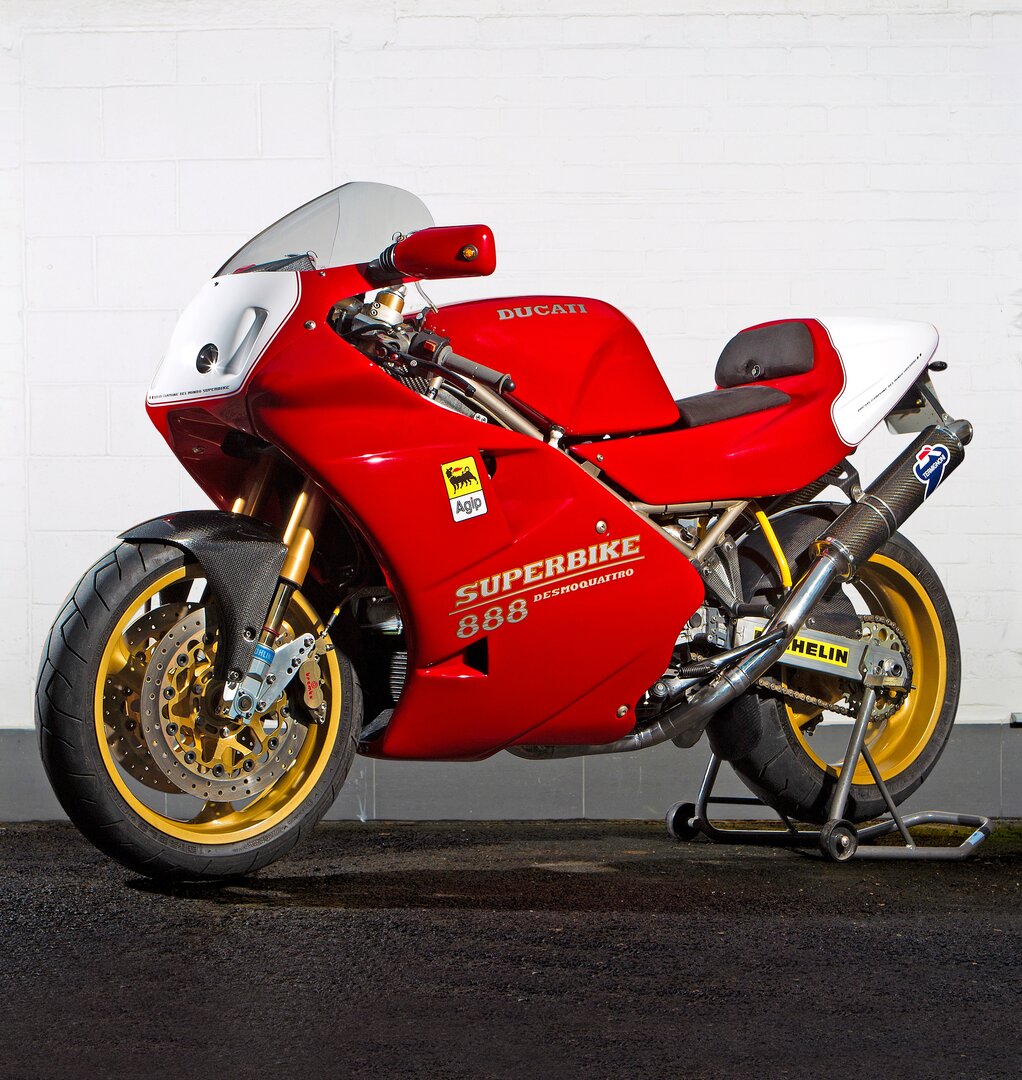

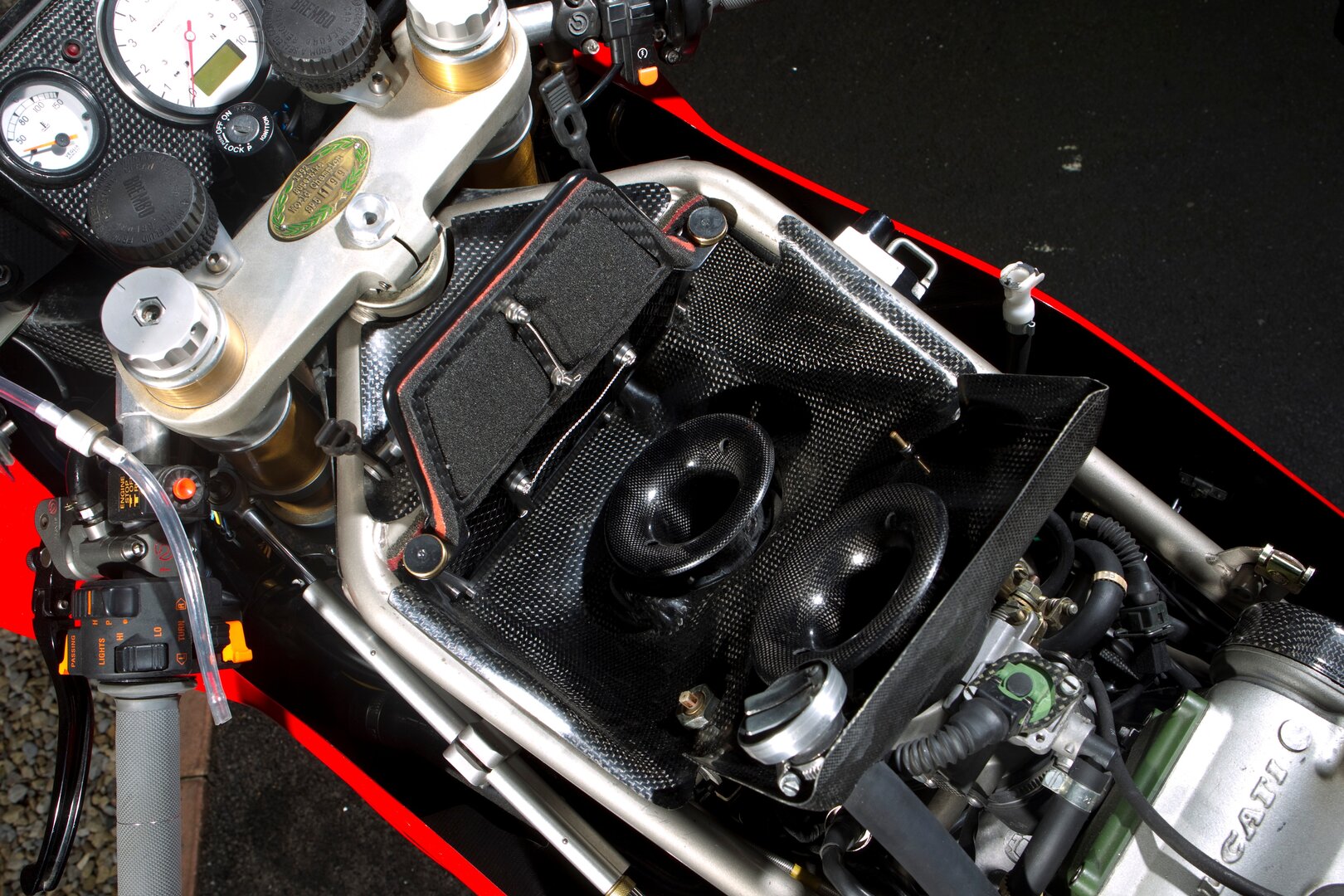

Is that the SP5 in its latest mode....looks cool..... , I like the fork leg adjusters on top of the Ohlins legs. Are the yokes magnesium...... ? like the airbox too mate , would that fit under a strada tank... ?

Cheers ,adie

dudlington

Strig

I,m sure some suitably thick double sided tape under the tension from the fixing bolt will be enough to stop it rotatiing.............however if I was doing it the fixing tab would sit in a recess from the rotating block to stop it rotating (Plus the double sided tape). Still a nice idea though.

Jasper

adie851 wroteHi Jasper, Is that the SP5 in its latest mode....looks cool..... , I like the fork leg adjusters on top of the Ohlins legs. Are the yokes magnesium...... ? like the airbox too mate , would that fit under a strada tank... ? Cheers ,adie

Yes mate. Yokes are Mag. And airbox will fit under strada tank.
