Rolling frame?

Jafa

Is there a bracket arrangement available that attaches to the frame so one can bolt the swing arm on and have a rolling frame with no motor?

Phil911

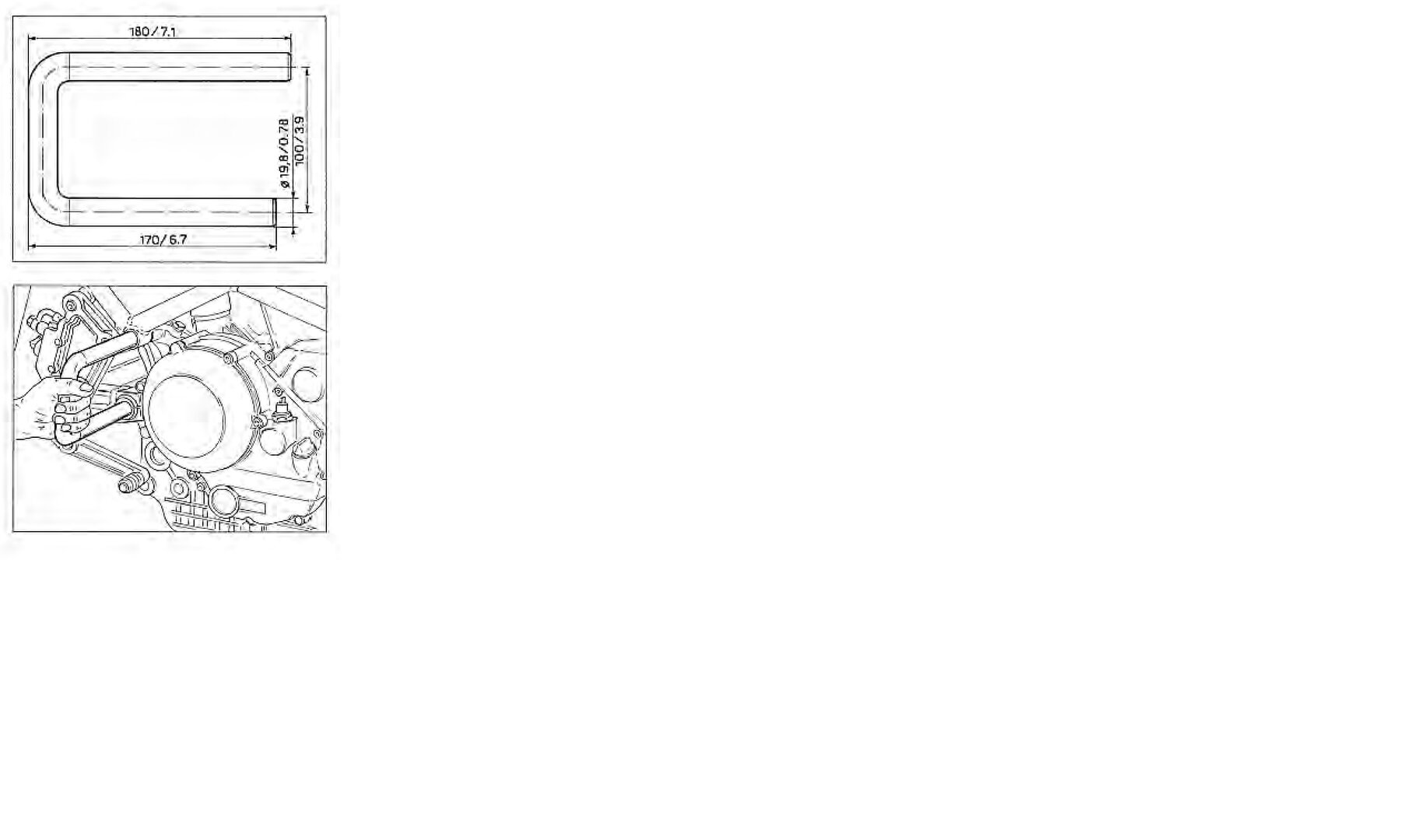

Might be helpful !!! ...

stiglarsenDK

Phil911 wroteMight be helpful !!! ...

Jafa, have been thinking along the same lines, a need engine block "dummy" as well

Phil, intersting thingy you have found there, does it work with 1 on each side ? (ever seen one)

Any one have found the way to make a rooling Chsssis ?

STIG

surfking

Somebody was doing one, it was an elongated triangle may even have been cycle cat.

Nick

Speedmade

Made by Speedymoto

http://www.speedymoto.com/products/t...-service-tool/

I've used one. They work pretty well.

But I've found that you can get a set of used cases off Ebay for pretty cheap now.

Jafa

Thank you Mr Speedmade 😄 Exactly what I am after.

marvin

I made a pair that attach to the foot peg brackets ('92 and onward frames). Works great.

Mr.R

marvin wroteI made a pair that attach to the foot peg brackets ('92 and onward frames). Works great.

Any chance of a pic' of those please Marvin?

Steve R

marvin

Mr.R wroteAny chance of a pic' of those please Marvin? Steve R

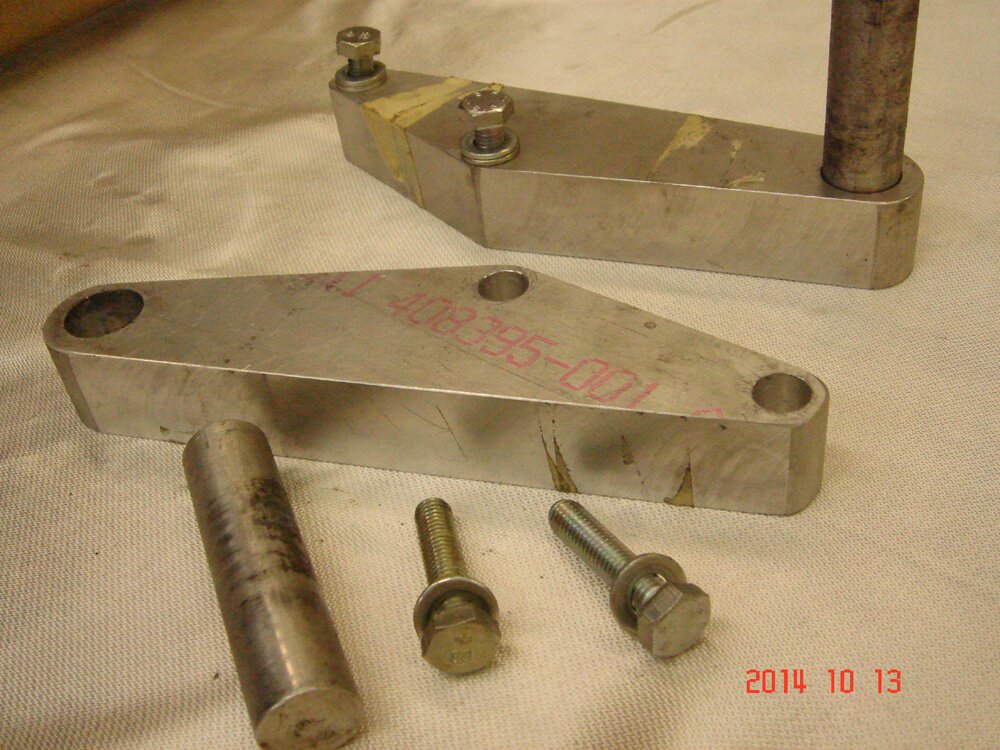

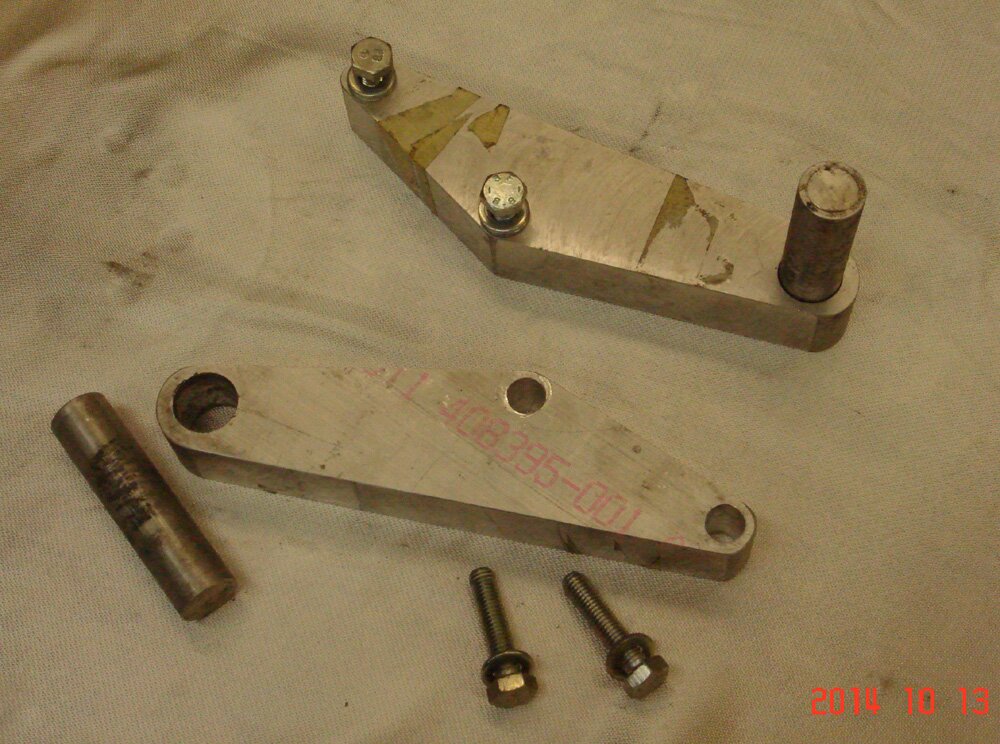

Here ya go. Please excuse the dried up masking tape, etc.
bolt to footpeg brackets, slide pin in swingarm while removing swingarm pivot shaft, remove engine.

Mr.R

Thanks Marvin.

Steve R

brad black

marvin wroteHere ya go. Please excuse the dried up masking tape, etc. bolt to footpeg brackets, slide pin in swingarm while removing swingarm pivot shaft, remove engine.

i made some from angle, you have to do one side at a time with it half falling apart. mine have both ss and m/888 footrest bracket holes from memory now.

stiglarsenDK

marvin wroteHere ya go. Please excuse the dried up masking tape, etc. bolt to footpeg brackets, slide pin in swingarm while removing swingarm pivot shaft, remove engine.

Hi Marvin

This is a briliant idea ! Excelent thinking, never seen it before... (i wish i had come up with that one :-) Thanks for Sharing

stiglarsenDK

stiglarsenDK wroteHi Marvin This is a briliant idea ! Excelent thinking, never seen it before... (i wish i had come up with that one :-) Thanks for Sharing

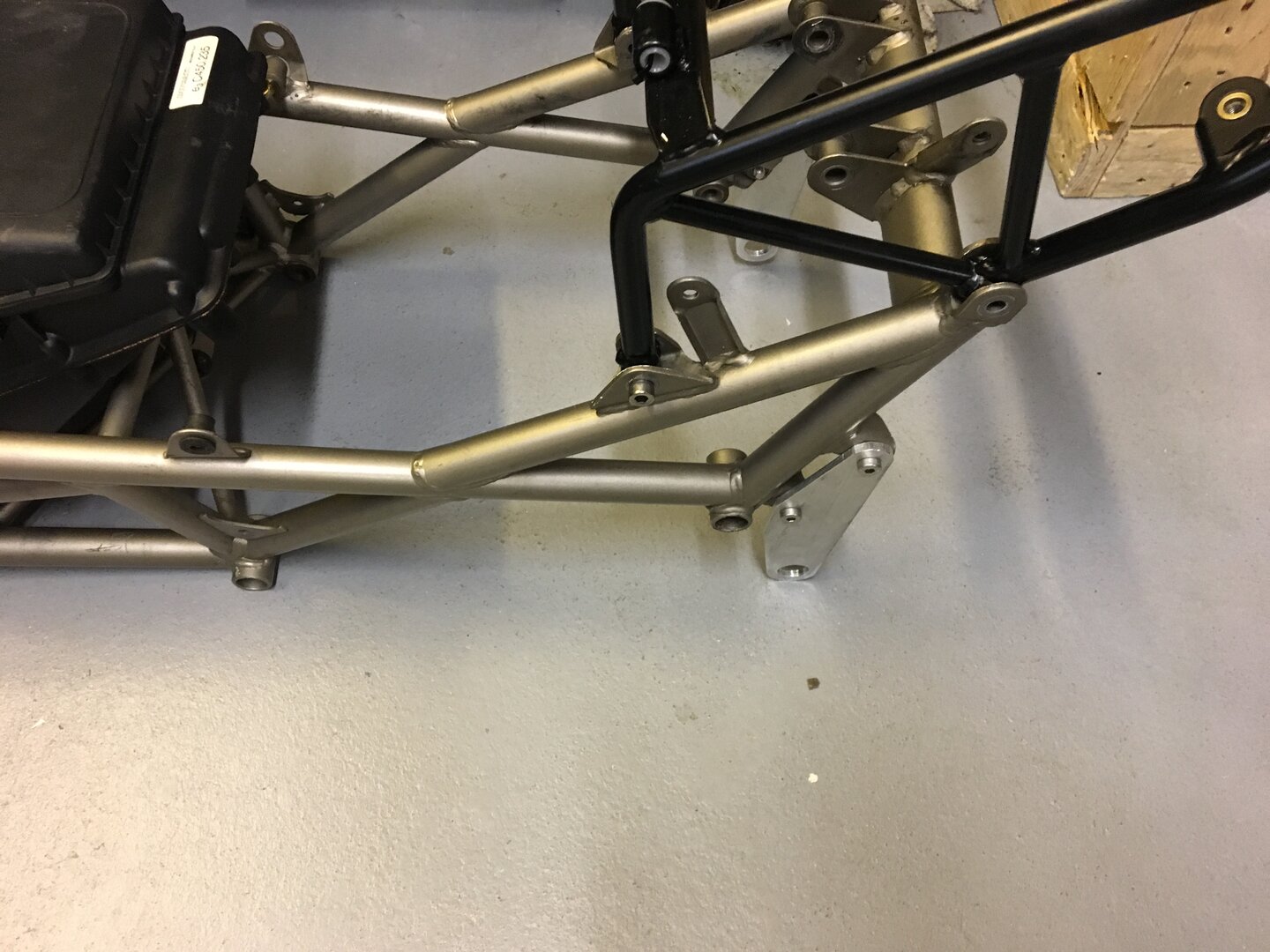

Working on a new frame up project, with no engine ready yet ...

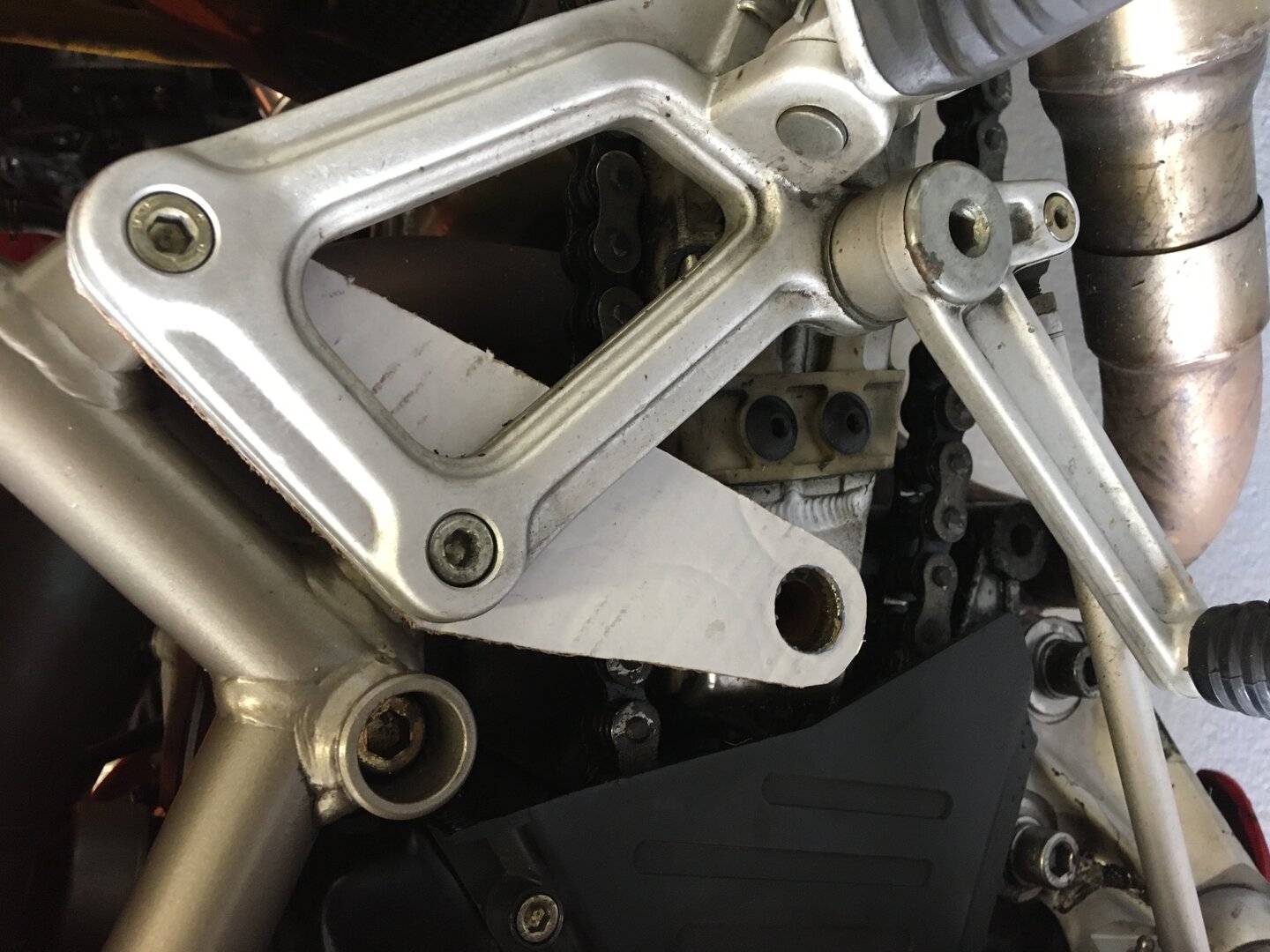

Did a set of "Marvins" rolling frame brackets from a 6 mm ALU frame profile while having an evening coffee.. You do NOT need CNC to do those... a x 20mm hole, 2 X 8mm holes ... some sawing + filing Volia !

stiglarsenDK

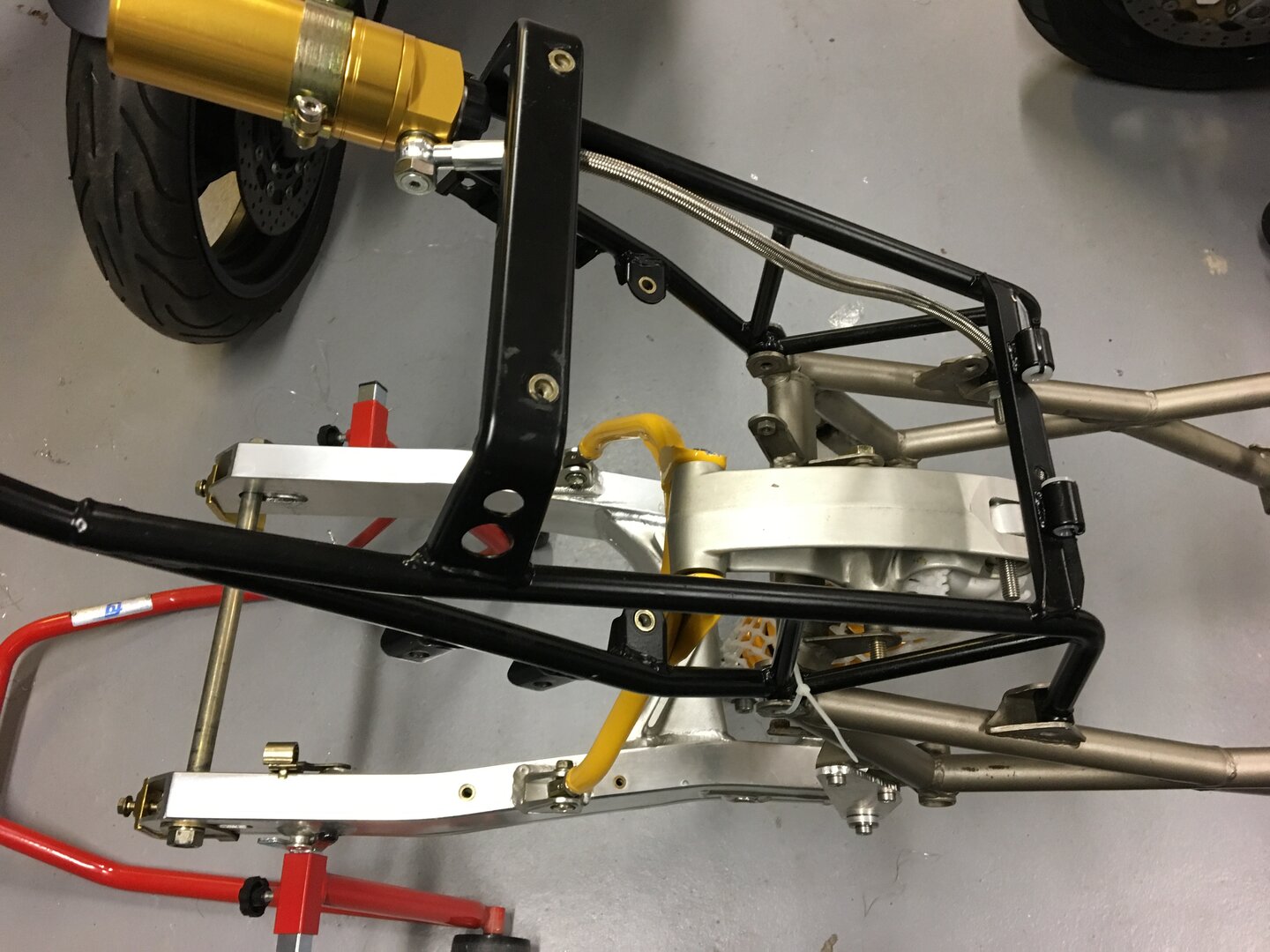

Got it rolling..

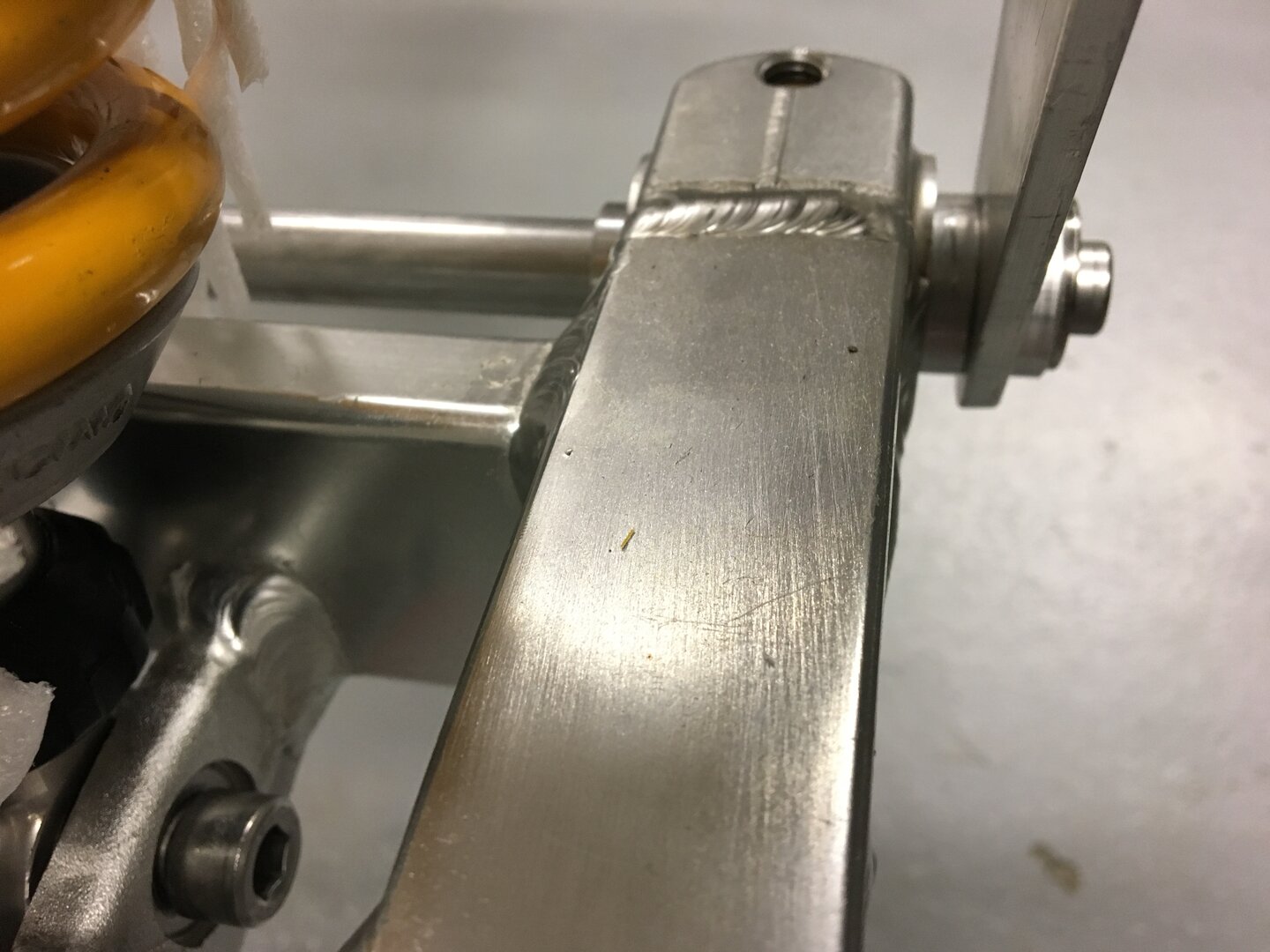

Got a few ALU bushings, ALU spacers and an ALU axel made tonight : Frame is "rolling"...

Easy parts to make and easy to assemble.

seven4nineR

Nice work! Loving the black subframe, by the way, looks really sharp.

stiglarsenDK

seven4nineR wroteNice work! Loving the black subframe, by the way, looks really sharp.

Black rear sub frame is from SPO (made in steel) yet same geometry as SP4/5 and 93/94 racing in ALU.
