frame project

duc904red

Thought some of you might be interested
Making a 851/888 frame from T45 will be sifbronzed and nickel plated
Will be 2/3rds of the standard weight

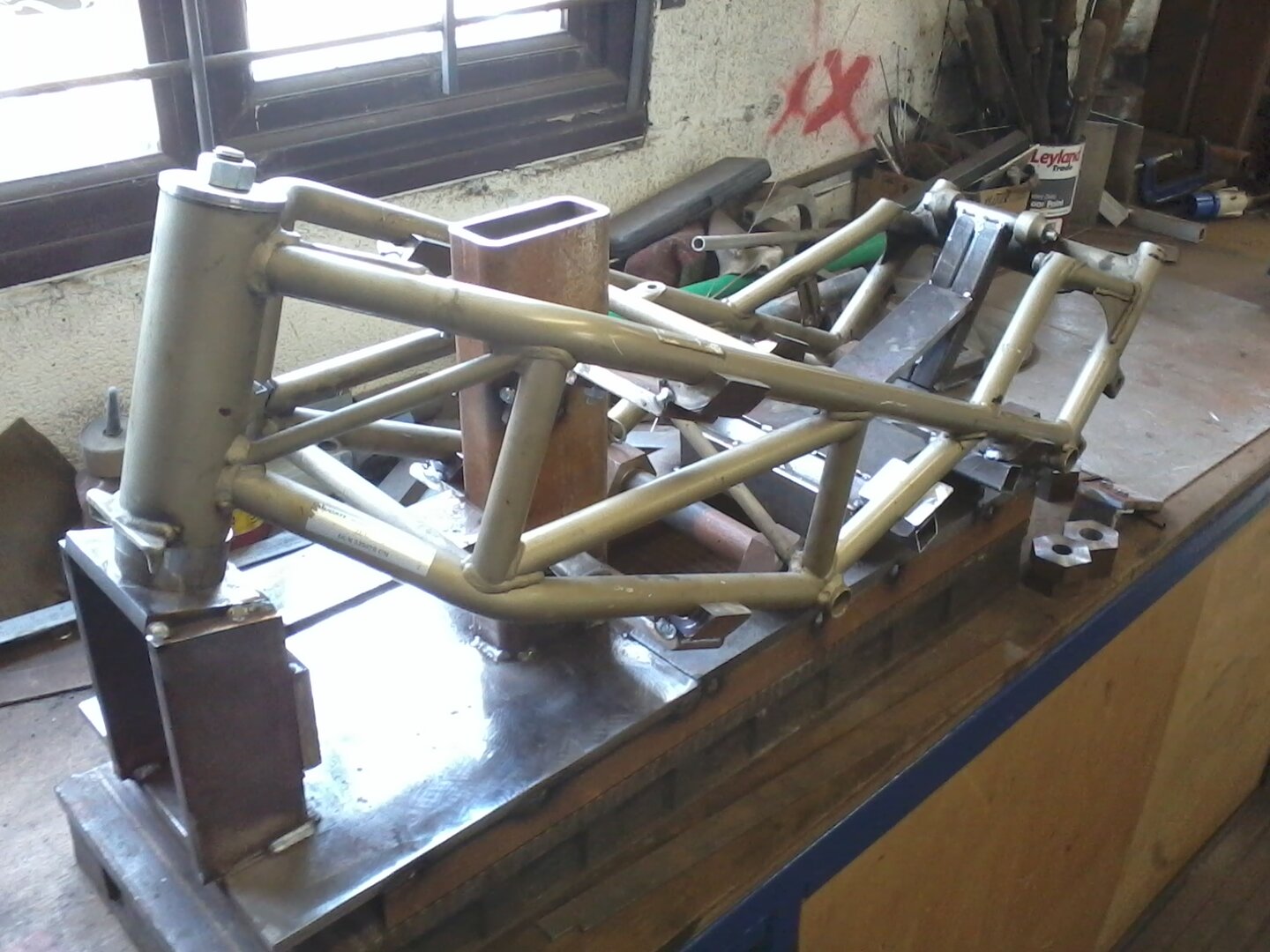

Also reverse engineering the monster framie back into an 888 frame

M

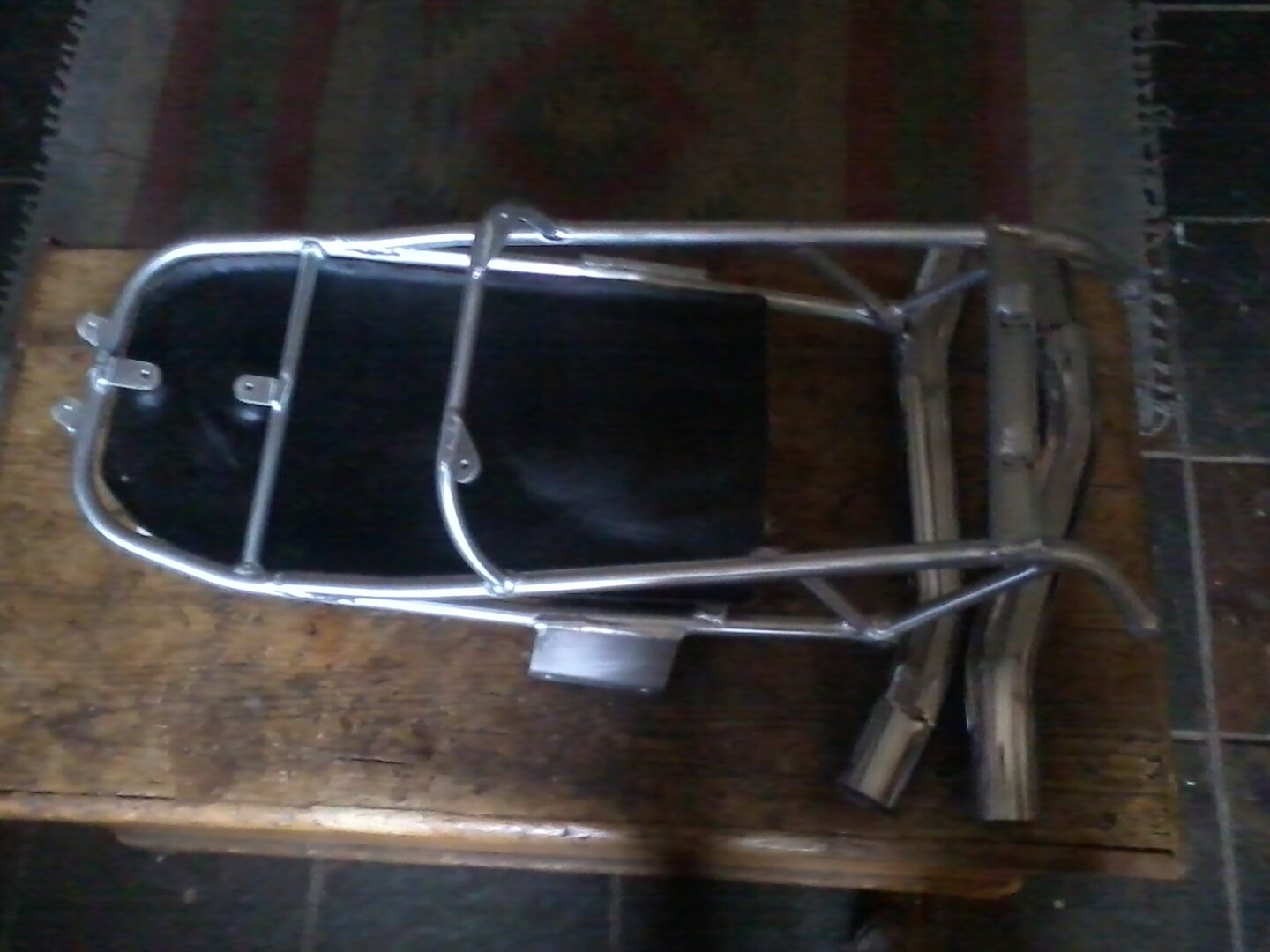

Still making the front and rear subframes in alloy:

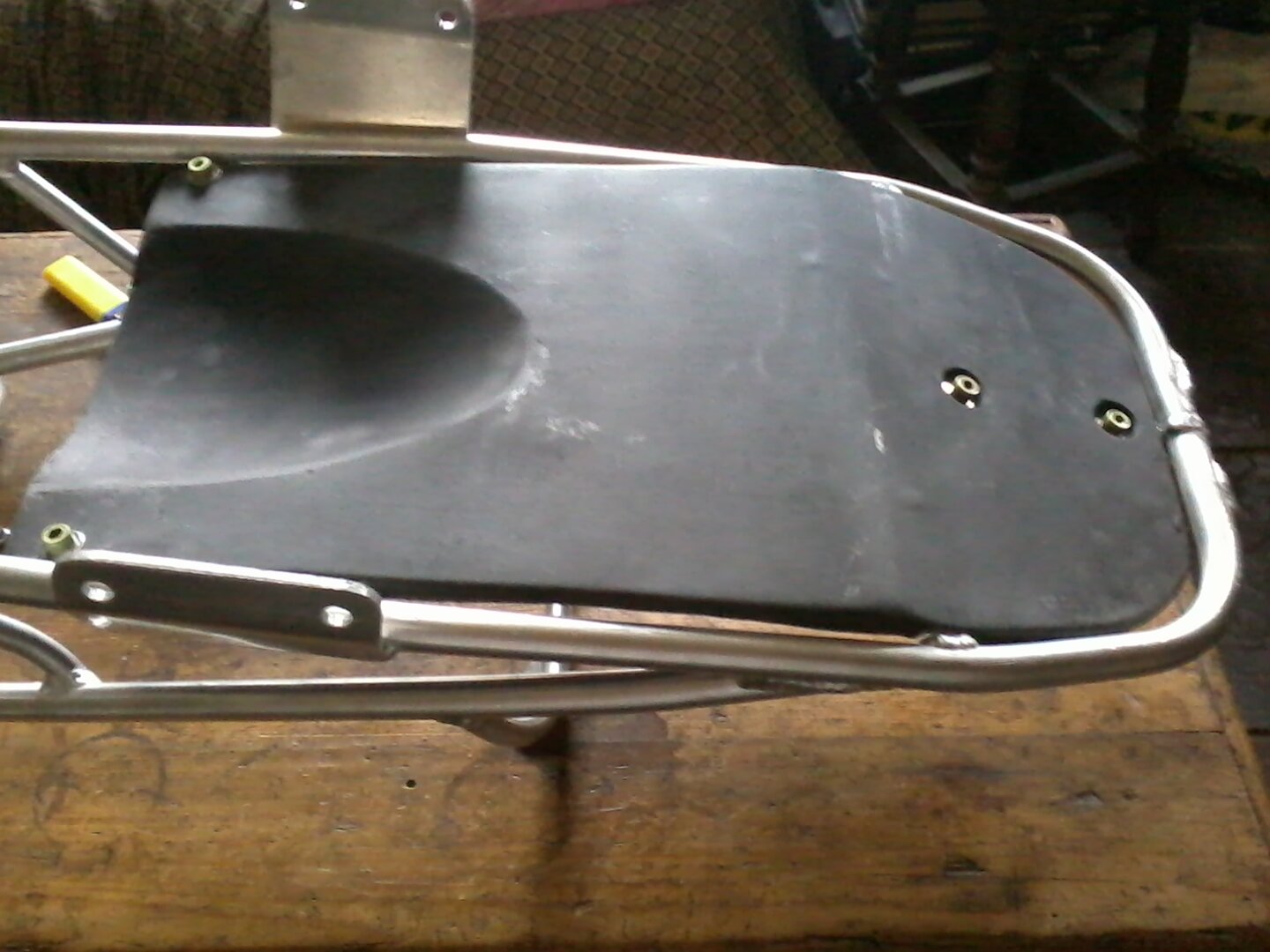

Doing a fibreglass undertray
Regards Steve Bm

MarkT

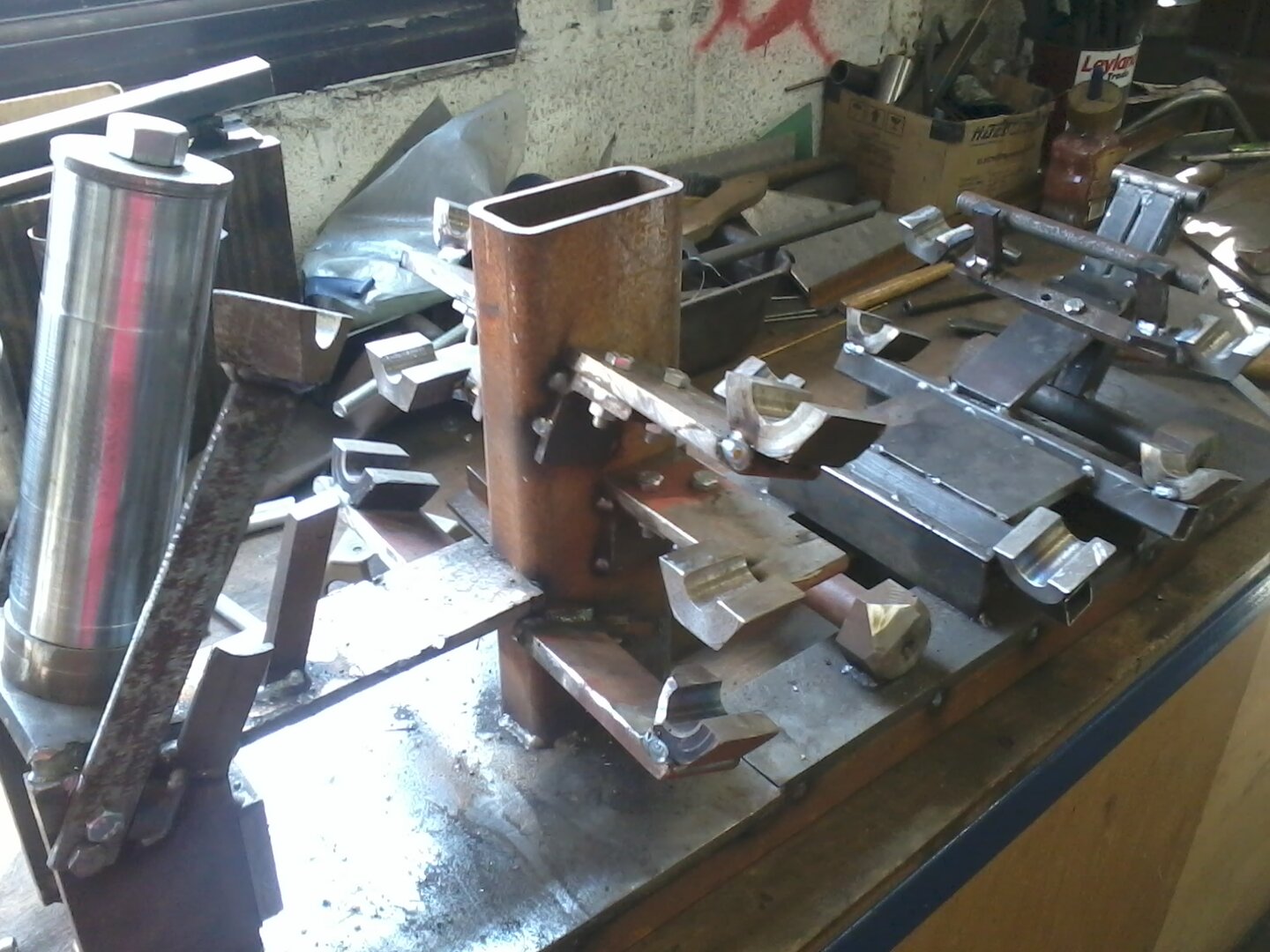

Nice frame jig!

duc904red

MarkT wroteNice frame jig!

Thanks Mark

Regards Steve B

pablopirate

900 SS Frames????????? Ohhhhh go on!😉

hauge

Nice work!
keep posting!

griff851

Way cool.

duc904red

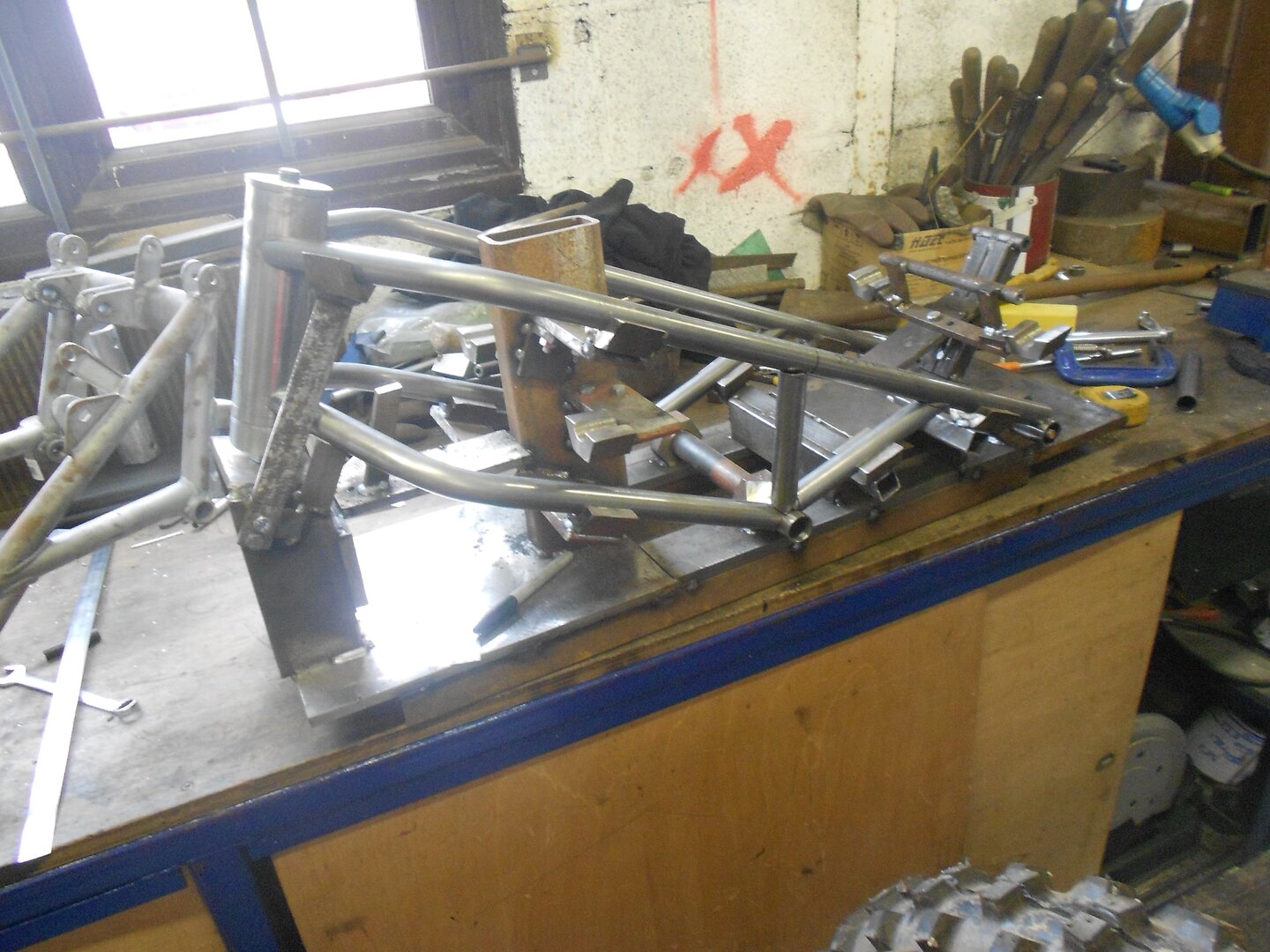

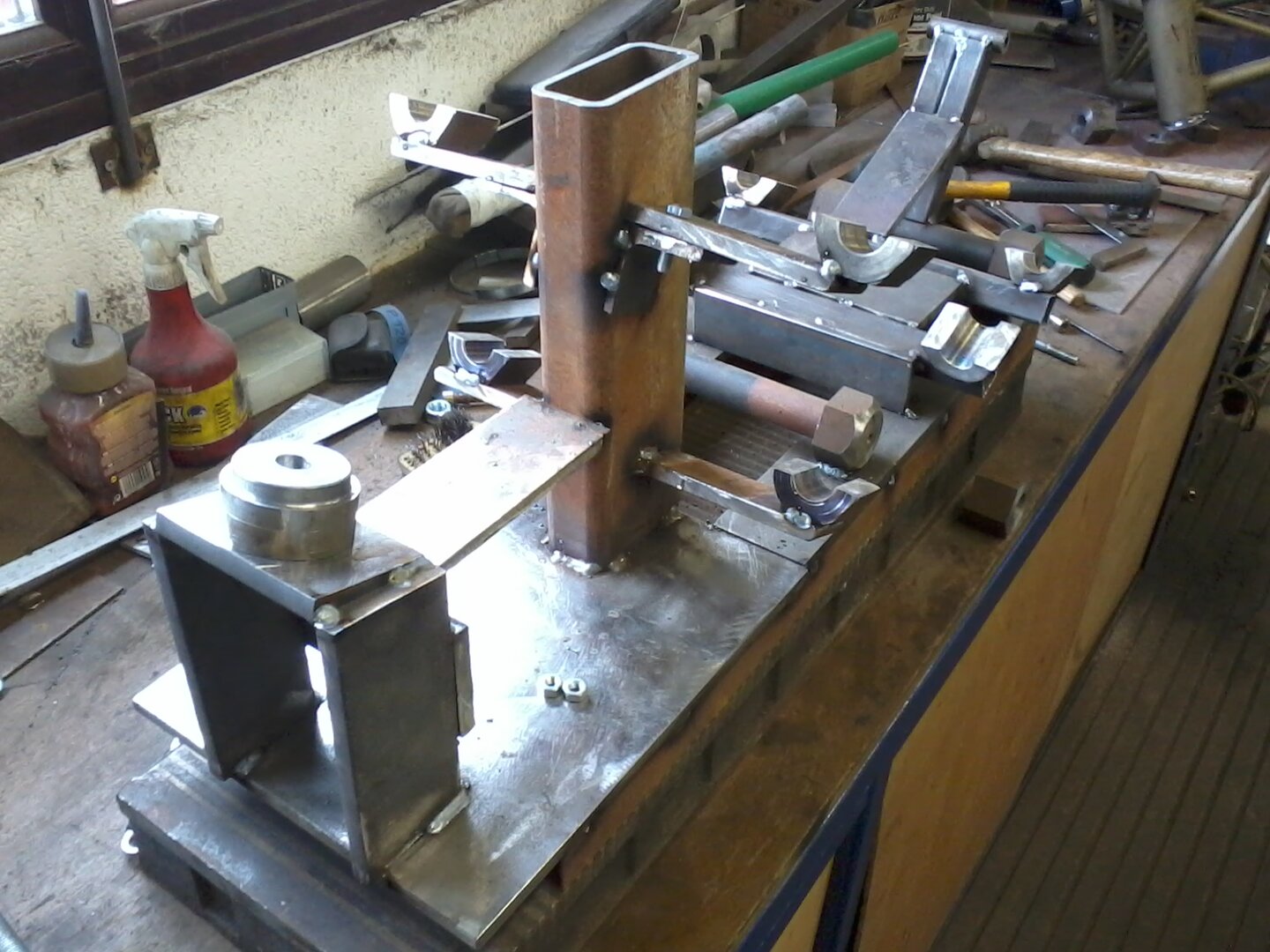

Some progress jig now done

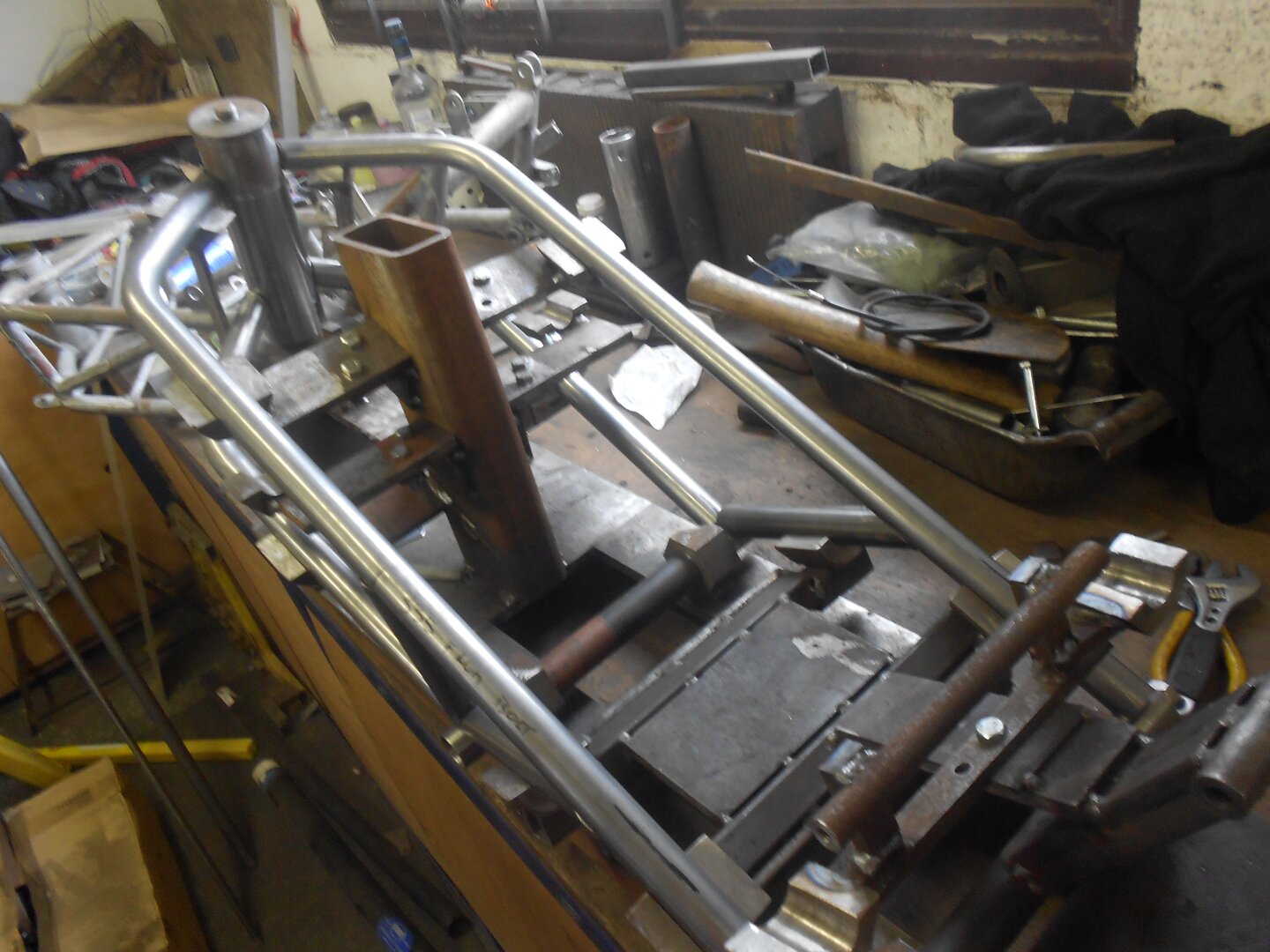

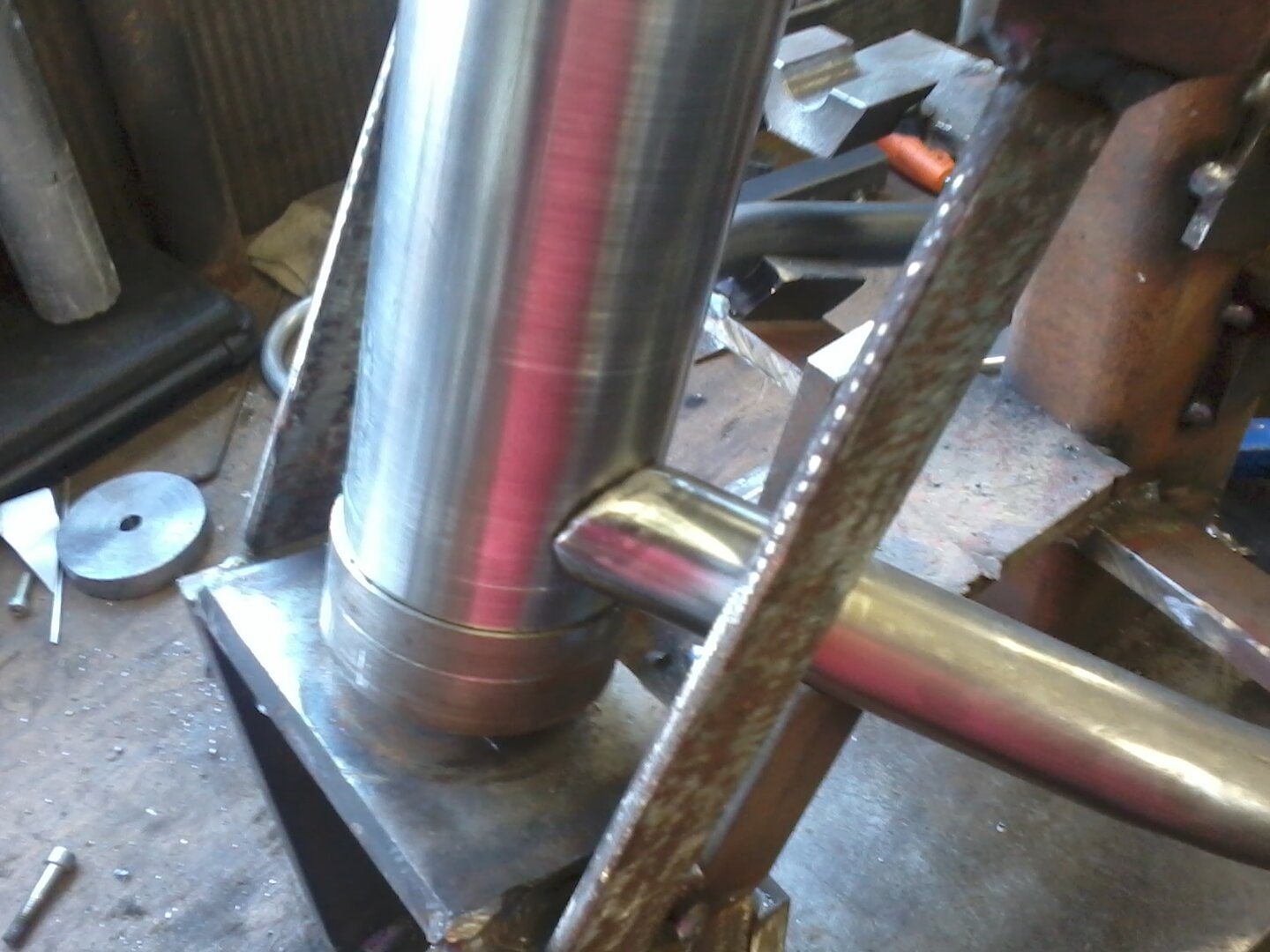

First tubes in place

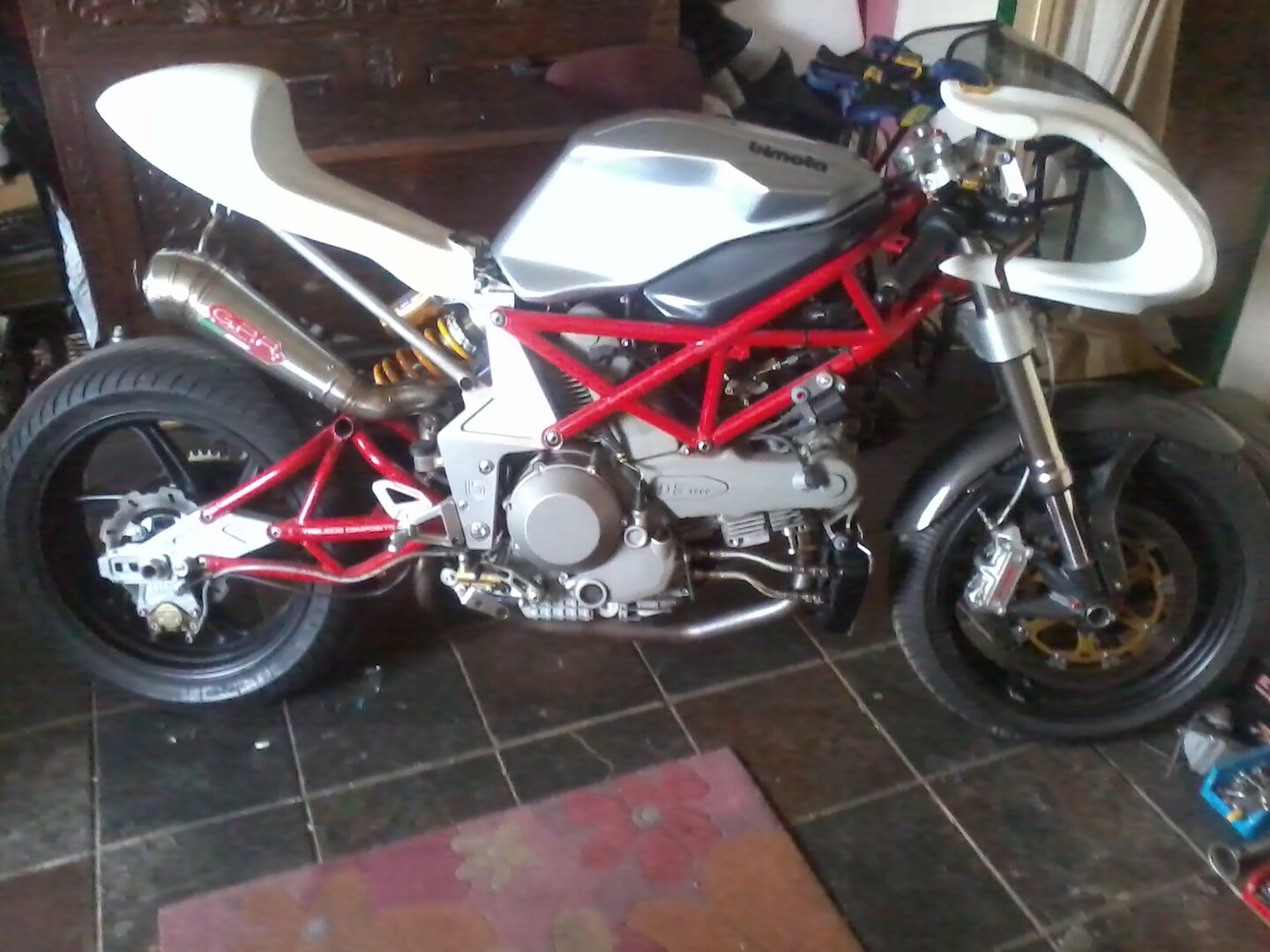

And a pic of the other project for Pompy
Regards Steve B

trogg888

Tubular belle

That's one tight little number 😎that you're doing for Pomps. Does it run as well as it looks Steve ?

duc904red

Should run nice
It's very light and has a 1000ds motor
Regards Steve B

griff851

Oh aren't we just having fun in the shed then. I know a bloke here that use to weld Harris frames back in the UK, to build for them you have to do a coarse. Neil was telling me the teacher was good, really good almost total perfection. His secret, a little ritual not unlike a japanese tea ceremony, but with welding gear before every job. Picturing the weld as he went through. It puts your head in the right place. I love it, very zen. Go Zen or go home I say.

PS I am the worlds second worst welder. I think I'm marginally better than my cat at it.

duc904red

Progress report

hauge

Nice!
picture is a bit small though

duc904red

sorry about that will take a proper camera to my workshop tomorrow
Regards Steve B

duc904red

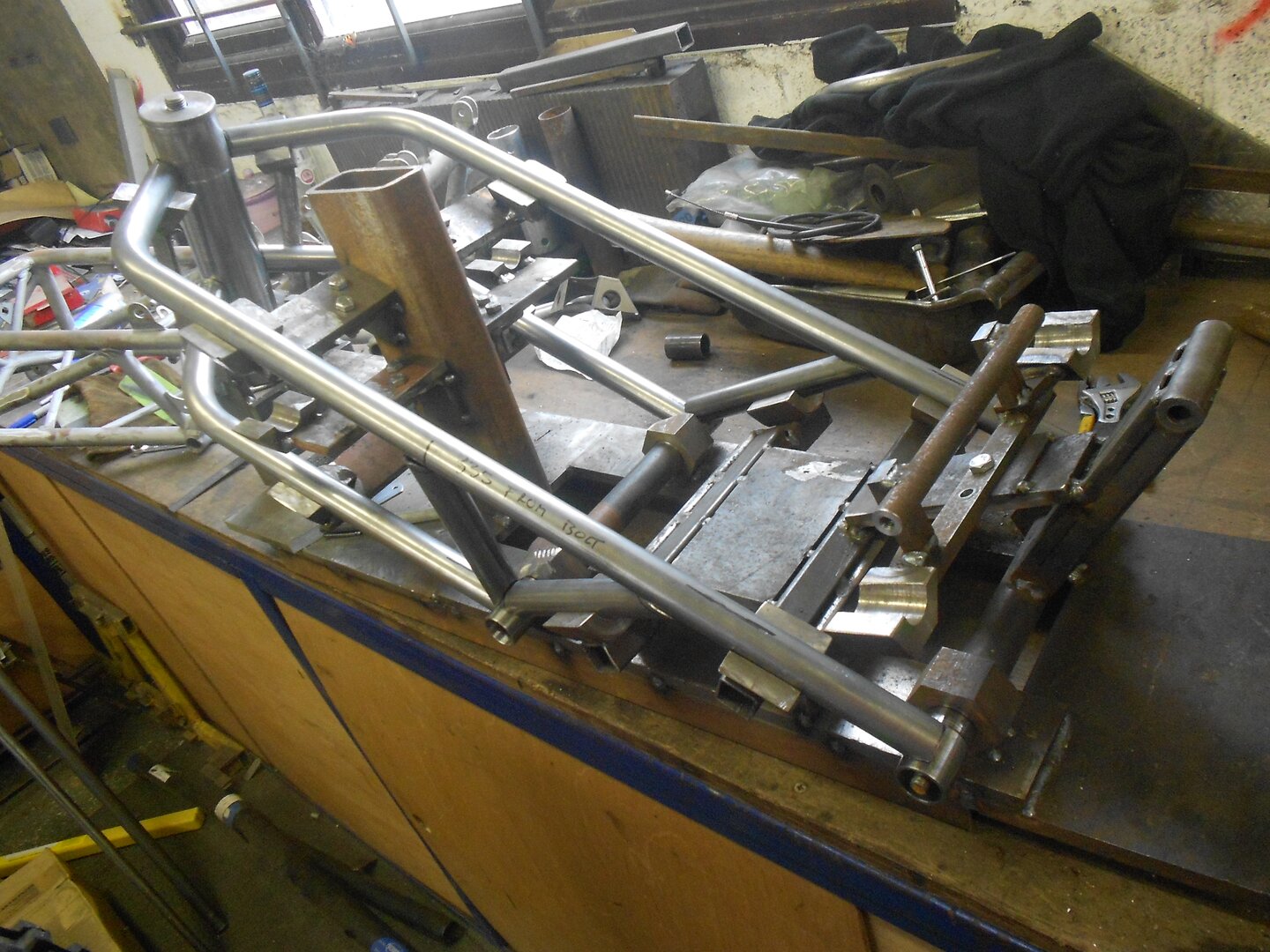

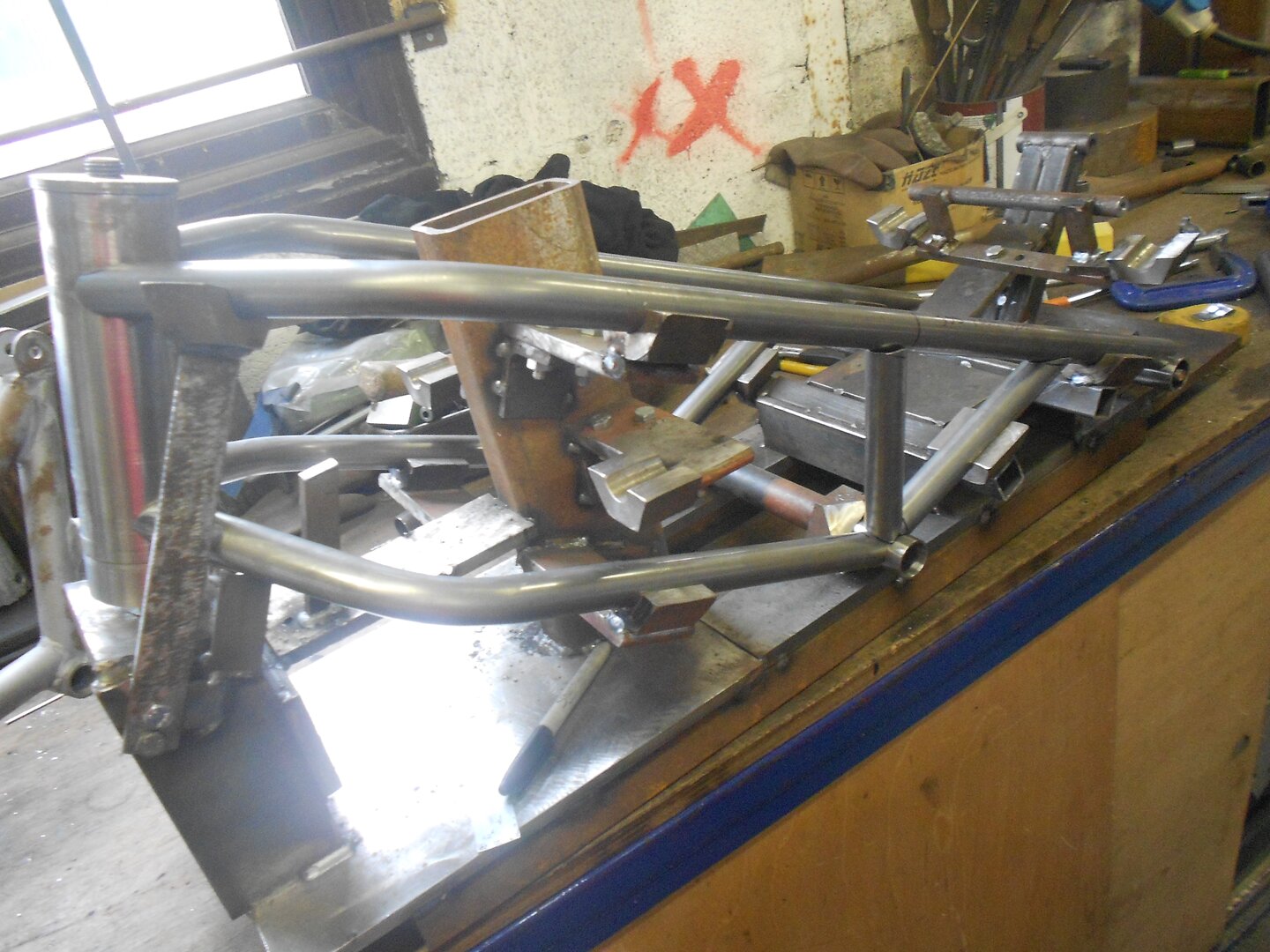

Hi chaps better pics as promised
regards Steve B

duc904red

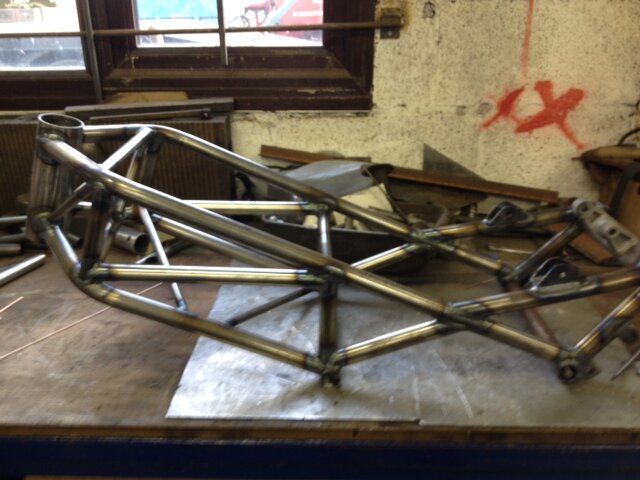

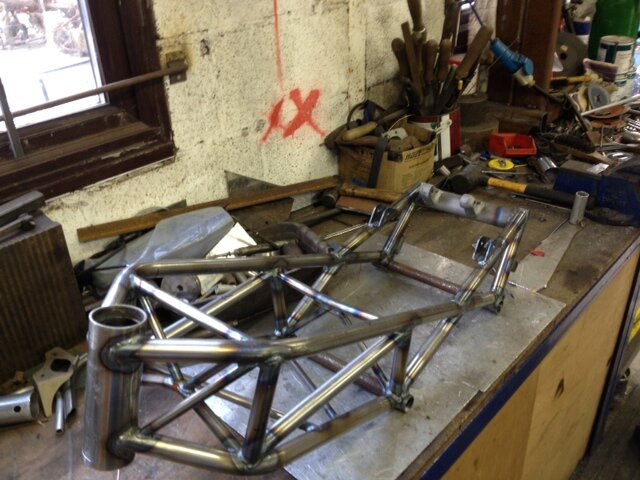

Nearly done

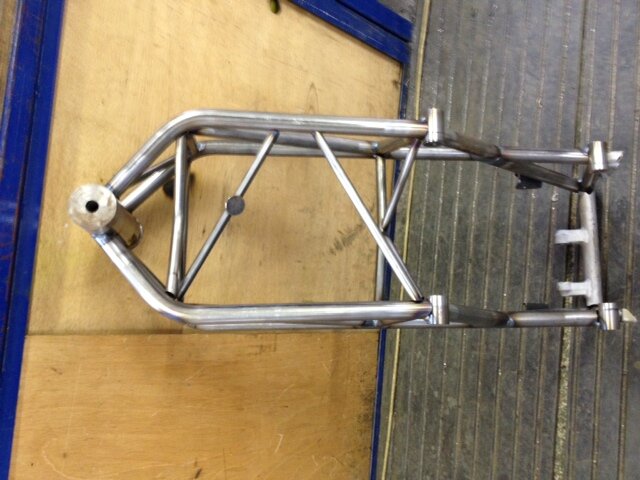

Tigged together
Regards Steve B

hauge

Nice, Steve!
Any close pics on the welds?

(tight arse I am...)

duc904red

Will put some up soon
Regards Steve

motobob1000

some beautiful fab work, keep it up, steve

duc904red

Hi hope no one minds me posting this
brand new TIG welded 888 frames will be £1500 with a certificate of newness(for registration purposes)
can also do frames with the corsa gusseting and fixed or removable brace
can also do 851 style frame with the mitred joints near headstock
regards Steve B

duc904red

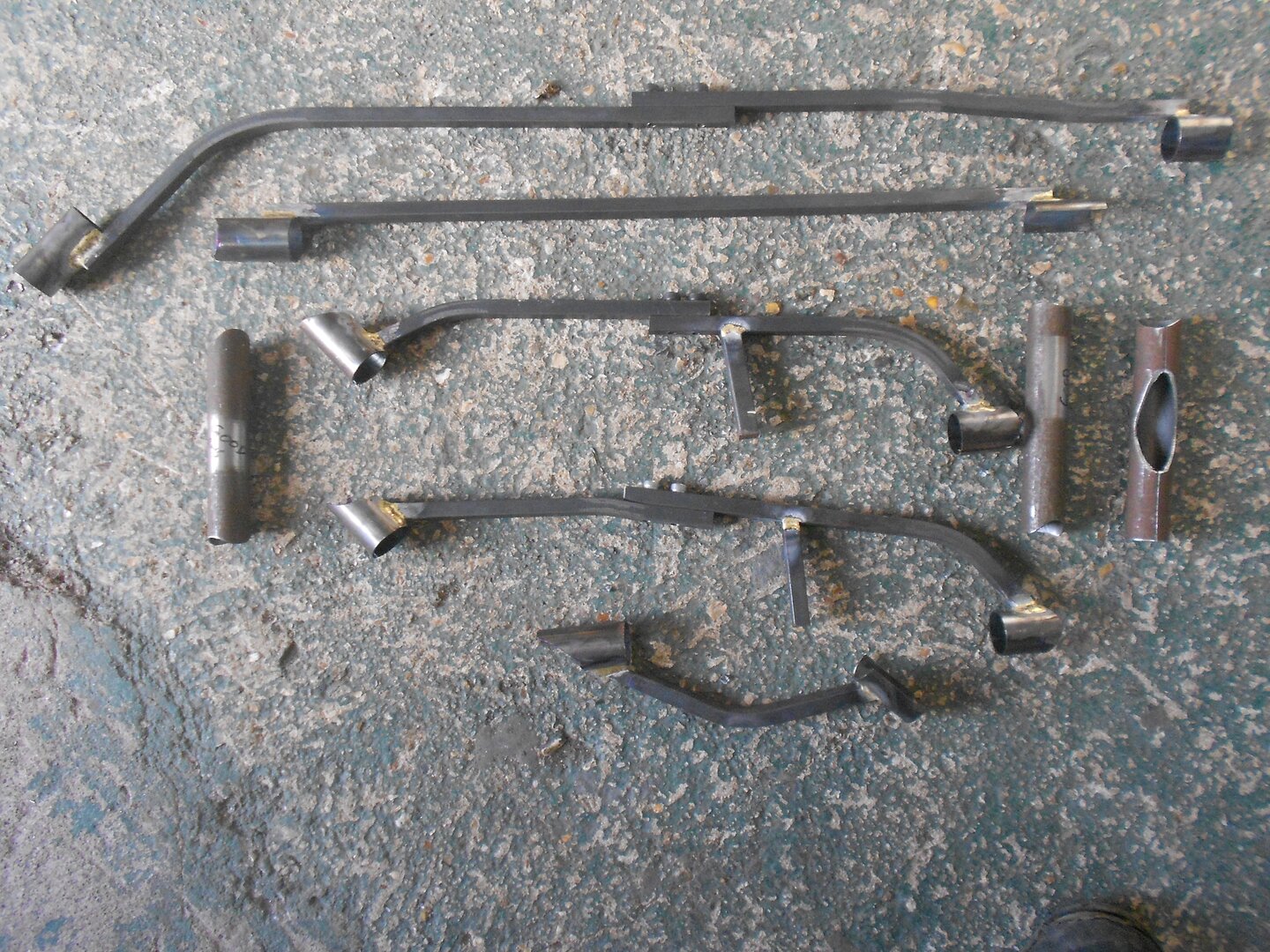

Hello just finished making to bending and profiling jigs for the frames
regards Steve B
