Corse wiring loom

Tony_Ducati

Forgive my naivety, but does such a thing exist?

Is there a wiring diagram?

I am shying away from a Strada loom from my project.

I'm an Elec. Engineer - nothing will frighten me!

Mr.R

Yes there are such looms, they changed over the years as the bikes developed, later Corse models mounted the ECU etc in the nose of the fairing, which isn't practical if you want to run a headlight.
You'll probably find a diagram in a Corse handbook/manual.

Steve R

Tony_Ducati

Mr.R wroteYes there are such looms, they changed over the years as the bikes developed, later Corse models mounted the ECU etc in the nose of the fairing, which isn't practical if you want to run a headlight. You'll probably find a diagram in a Corse handbook/manual. Steve R

Of "corse" ... but having searched this fine tome and discovered nix, can you suggest another avenue?

What's a fucking headlight?

Mr.R

Jasper,
Sent me a CD a while back that has almost all of the 851/888 manuals, parts books etc on it, maybe he can point you in the right direction.

What's a headlight?
Well it's a bit like the OEM unit on the 851/888's only a real one actually works, the Cibie Z beam on my old Bevel is more than twice the light on either of my 851's.

Steve R

desmo57

There is a wiring diagram in every 851/888 corsa parts manual.

MarkT

Tony-

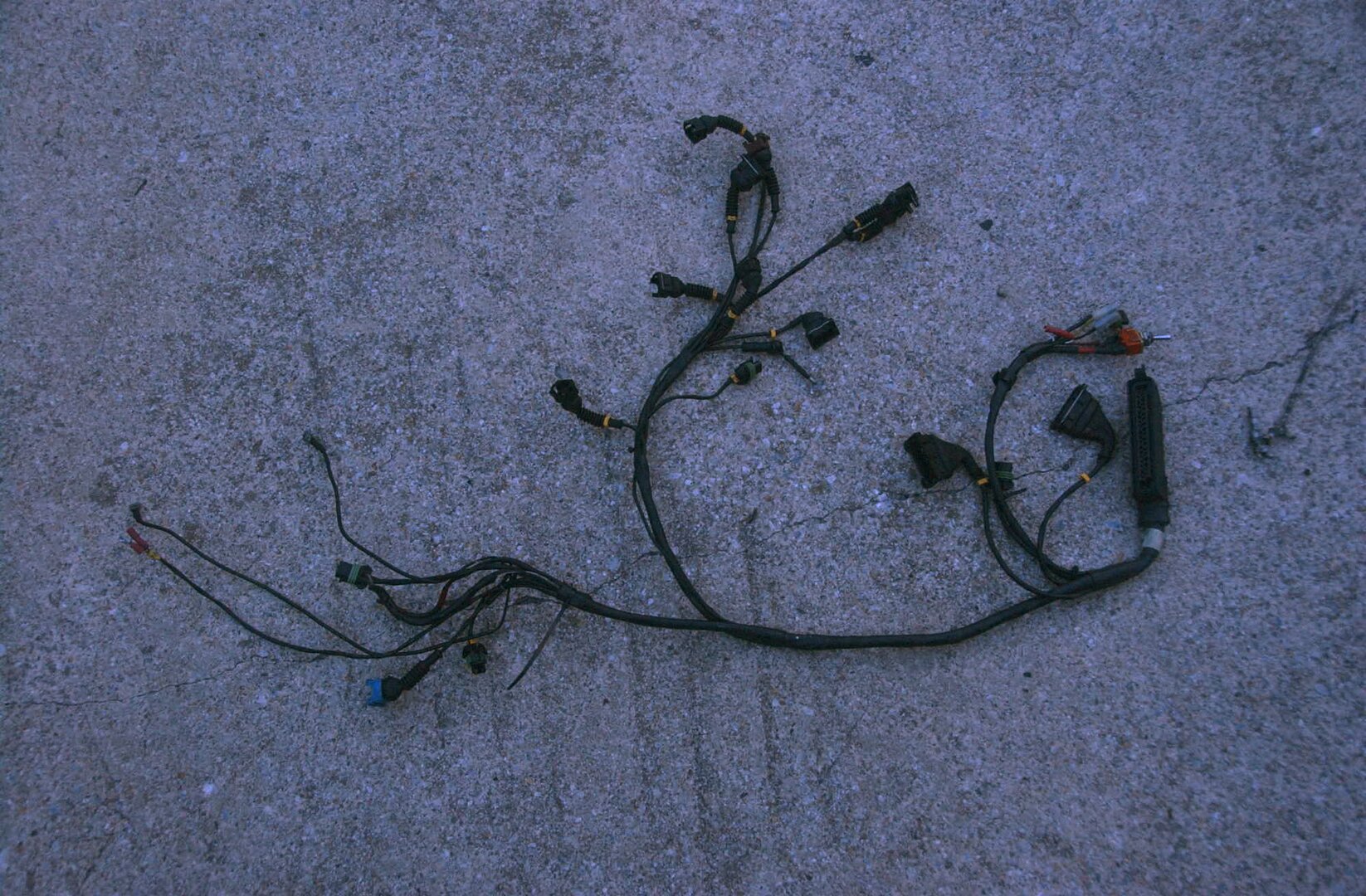

Here is a picture to go with the wire diagram--You can pull most of the connectors off of your existing street loom

Tony_Ducati

MarkT wroteTony- Here is a picture to go with the wire diagram--You can pull most of the connectors off of your existing street loom

Excellent!

SPS

Hey Tony I have a copy of the 851 Superbike Racing parts catalog for my Corse if you want to send me an email address I'll shoot it over to you. It appears to have a pretty detailed layout of the Corse loom if you need it.

Tony_Ducati

SPS wroteHey Tony I have a copy of the 851 Superbike Racing parts catalog for my Corse if you want to send me an email address I'll shoot it over to you. It appears to have a pretty detailed layout of the Corse loom if you need it.

Many thanks.

tony@beveltech.net

wgsvintage

Any chance of scanning that parts manual into the files section? Those are such good reference tools.
Bill

SPS

sent. Hope it helps

SPS

wgsvintage wroteAny chance of scanning that parts manual into the files section? Those are such good reference tools. Bill

posted. enjoy

wgsvintage

Very nice scan, didn't even need to squint at it. Thank you!
Bill

Tony_Ducati

Bargain??

desmo57

Bargain? Not at all!
