3D printing parts

Bridgland

You may well know that I have been recreating and printing parts for a while and thanks to Jasper and DucatiDad, I have been loaned a couple of parts to recreate.

So everyone knows, I like a challenge and 3D design is still a learning curve for me, so is 3D printing, but I am having fun and s doing it, so I thought I would share some of what I have been up to.

FYI, this takes me a long time, anywhere from a few days to a week or more, to design and test print as part. I don't have a 3D scanner as they are ludicrously expensive, so any part loaned me is measured by hand (and eye, when curves are involved) and reproduced as faithfully as possible.

I am not touting for work as I have a full time job looking after an EMEA technical team in the IT world, so this is a hobby, but I am always up for a challenge - it just may take a while!

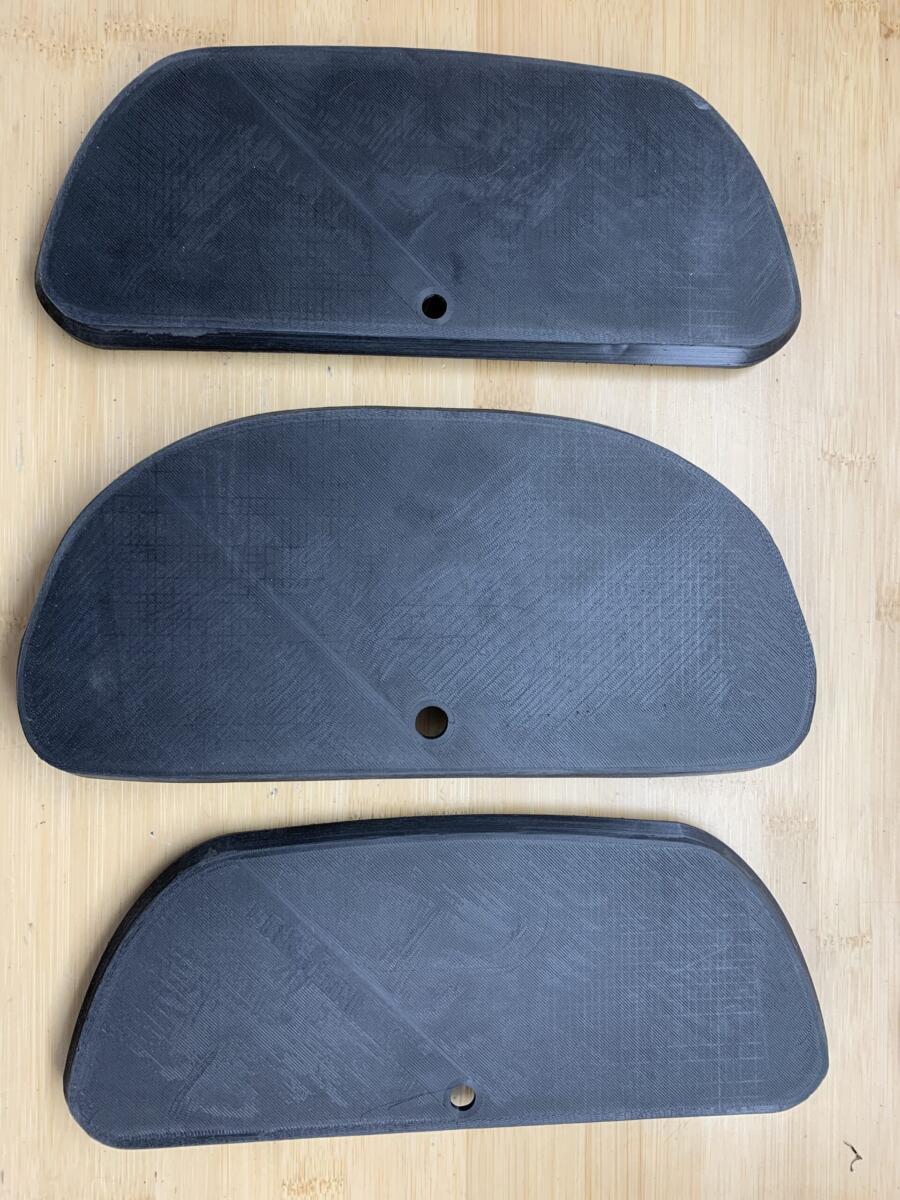

Single Seat Bum Pads (Middle one is for SP3)

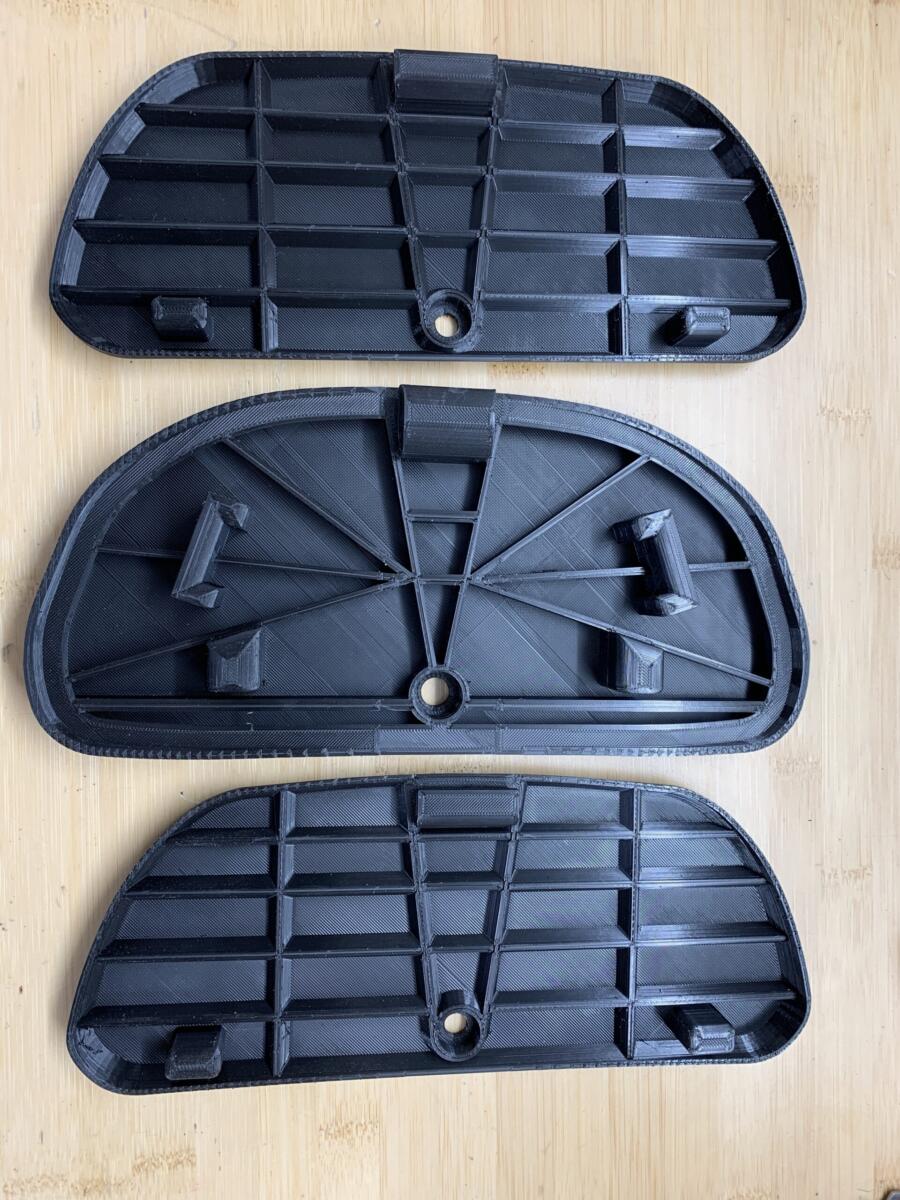

SPO/4/5 Single seat base plate.

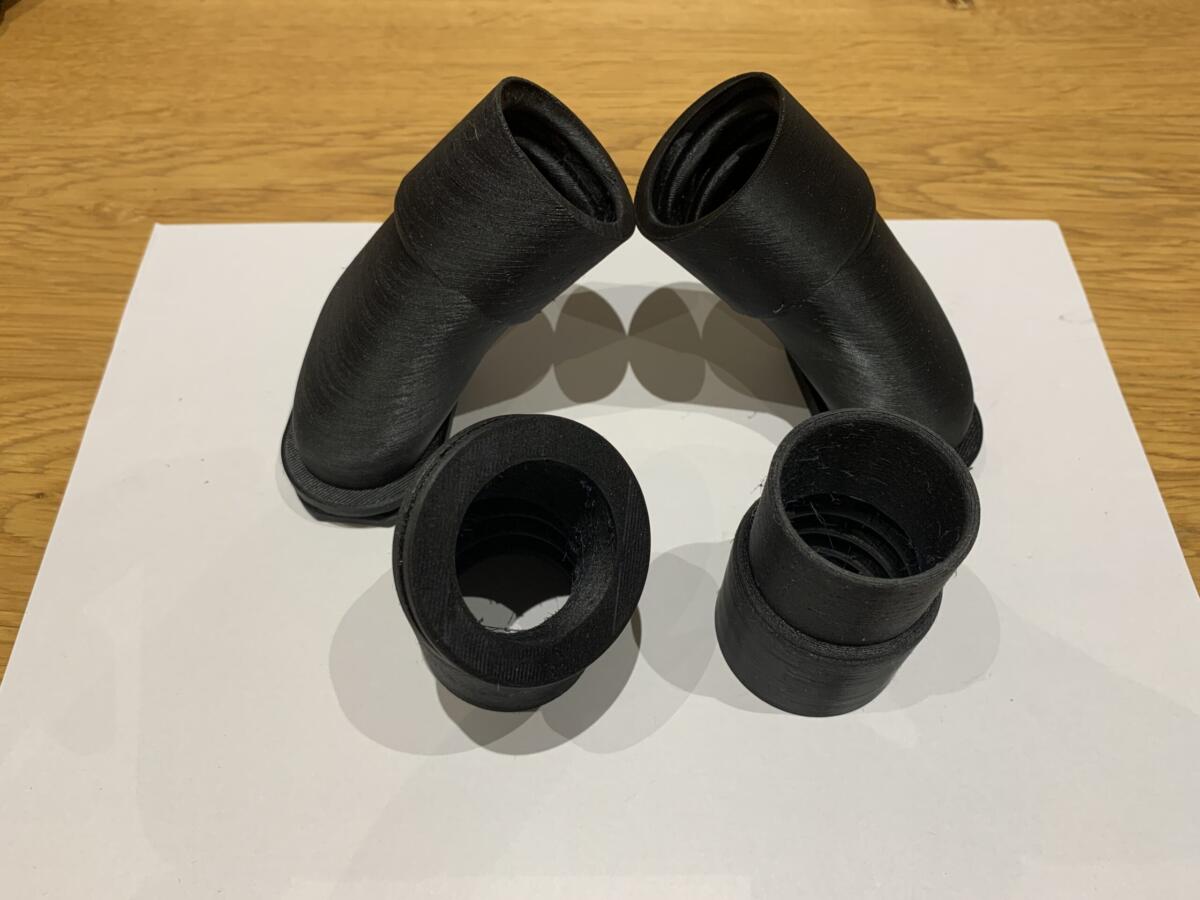

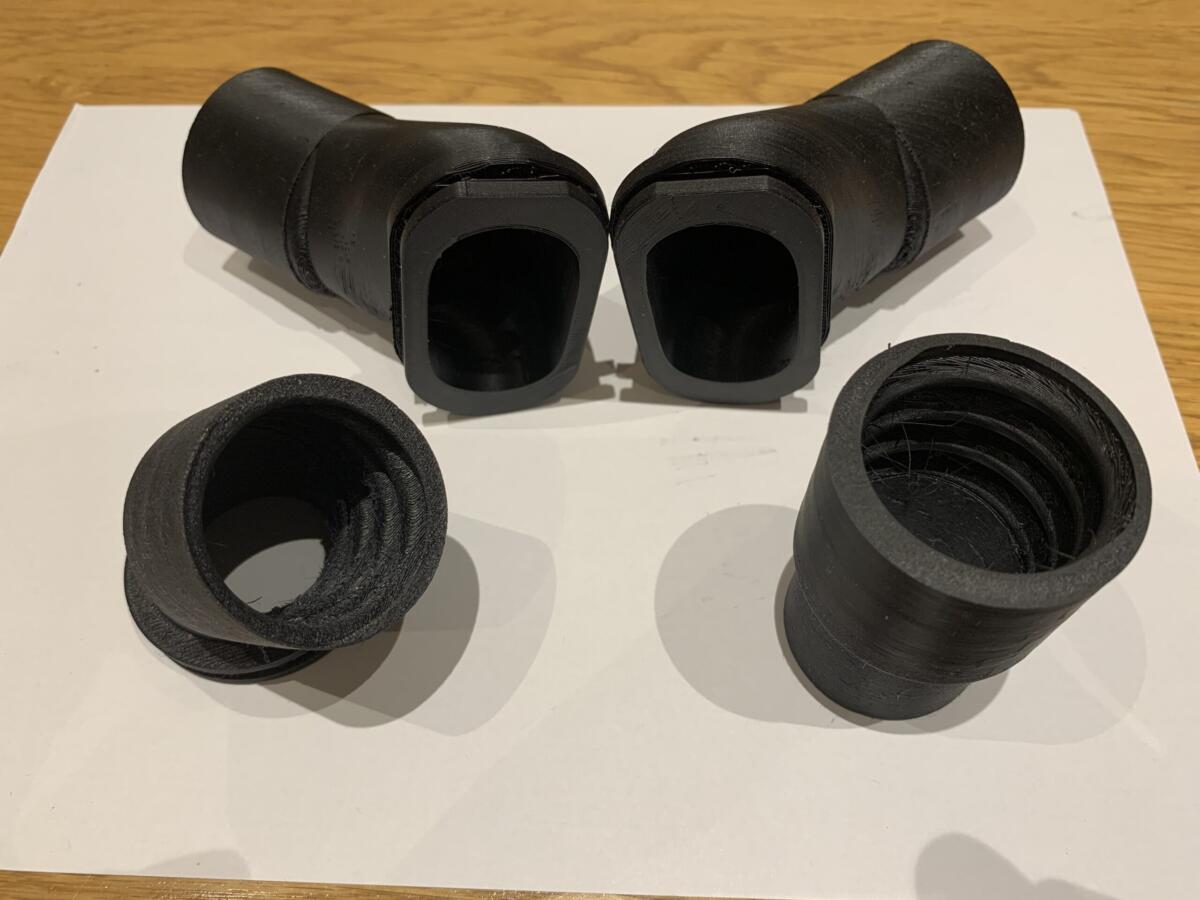

Rubber Air Duct connectors for 1991 to 1994 models

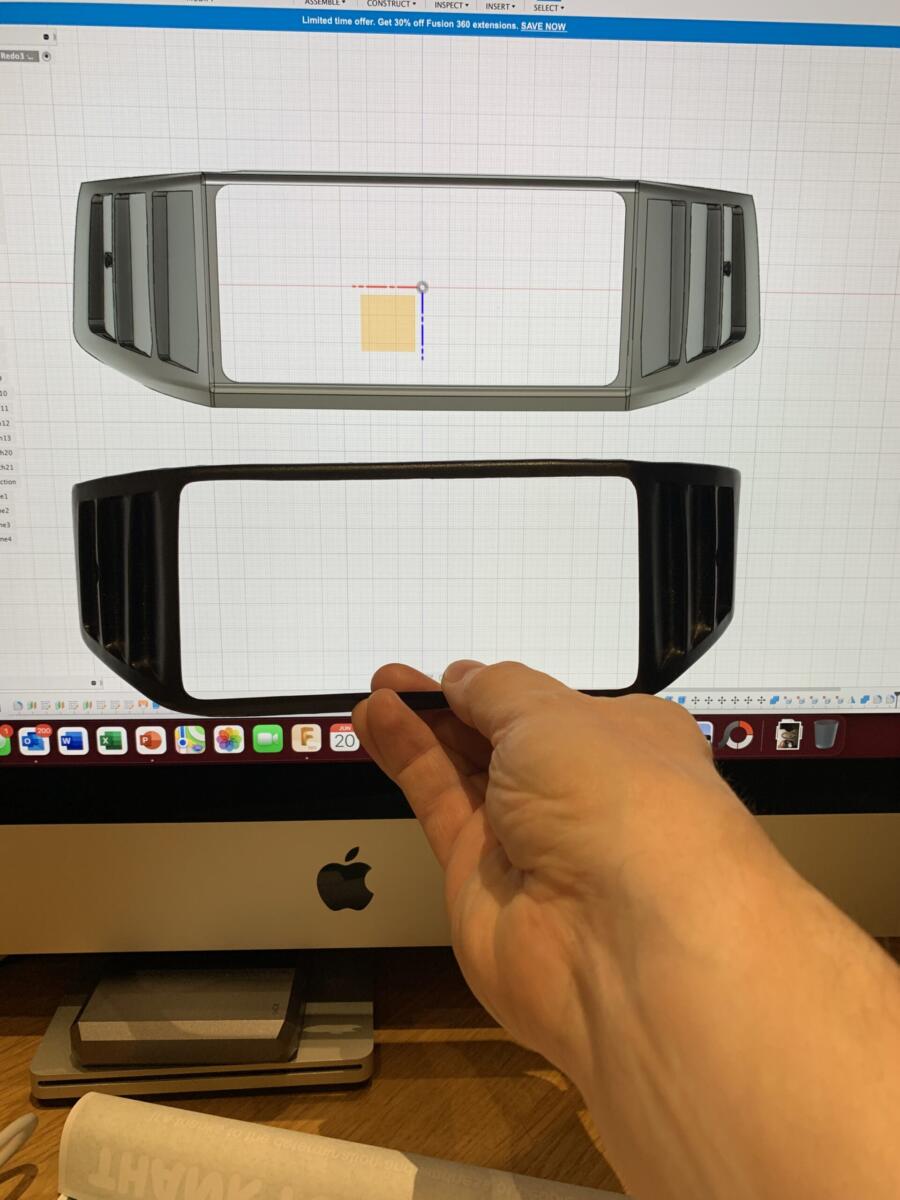

SP2 Rear light surround (the 3D image is pure;y 2D and no perspective, so it looks wrong with the real part in front, but I assure you, it is pretty close!)

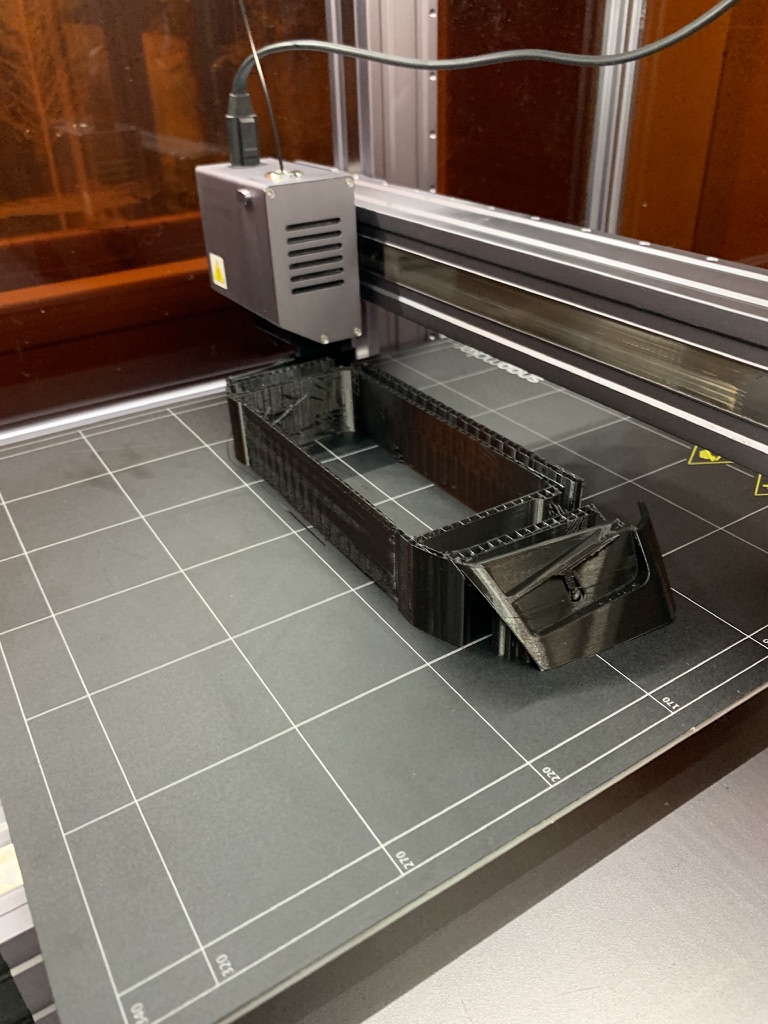

SP2 rear light surround (currently printing)

outtacontrolla

Great effort mate !

tubbylad

Nice work Chris, any chance you can do the dash surrounds?

Bridgland

tubbylad wroteNice work Chris, any chance you can do the dash surrounds?

That will take some doing, especially with the captive bolts....let me have a think about how to tackle it.

ducati dad

Hi Chris, were you successful with the rear light surround ?

Bridgland

ducati dad wroteHi Chris, were you successful with the rear light surround ?

Hi Mick,

Sorry for the delay and I still have a couple of tweaks to do to the design, but it means I have to take a few steps back to make the changes stick. Your part is safe and as you gave it to me, but if you want it back now, I am happy to bring it back to you.

Chris

ducati dad

Hi Chris, I was just wondering if you had overcome the difficulty of printing the louvres. Carry on and if I need the part, I'll call you... Mick

Bridgland

3D Scanning now done on a few parts....

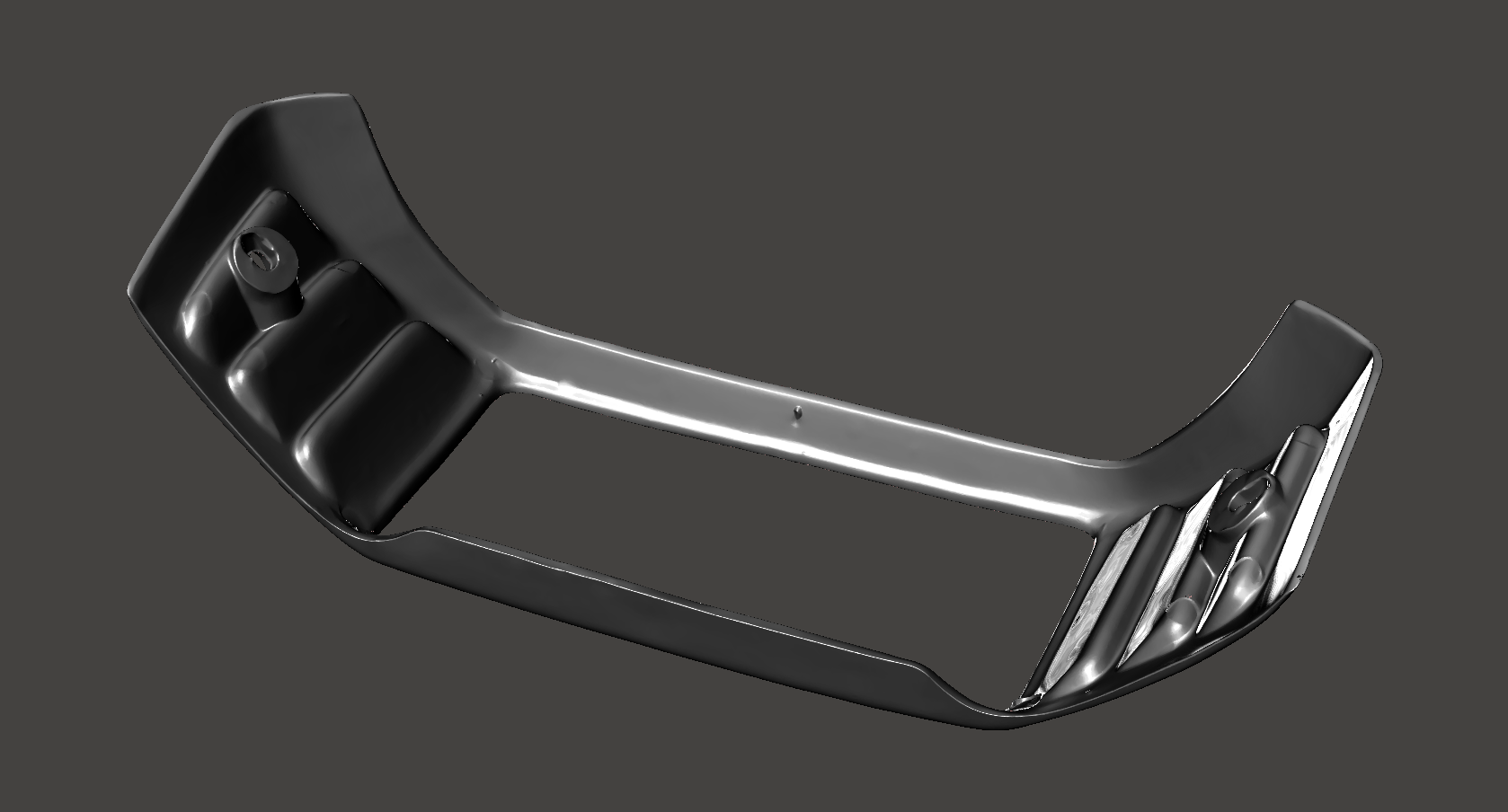

Thanks to DucatiDad for the loan of the SP2/SP3 rear light surround.

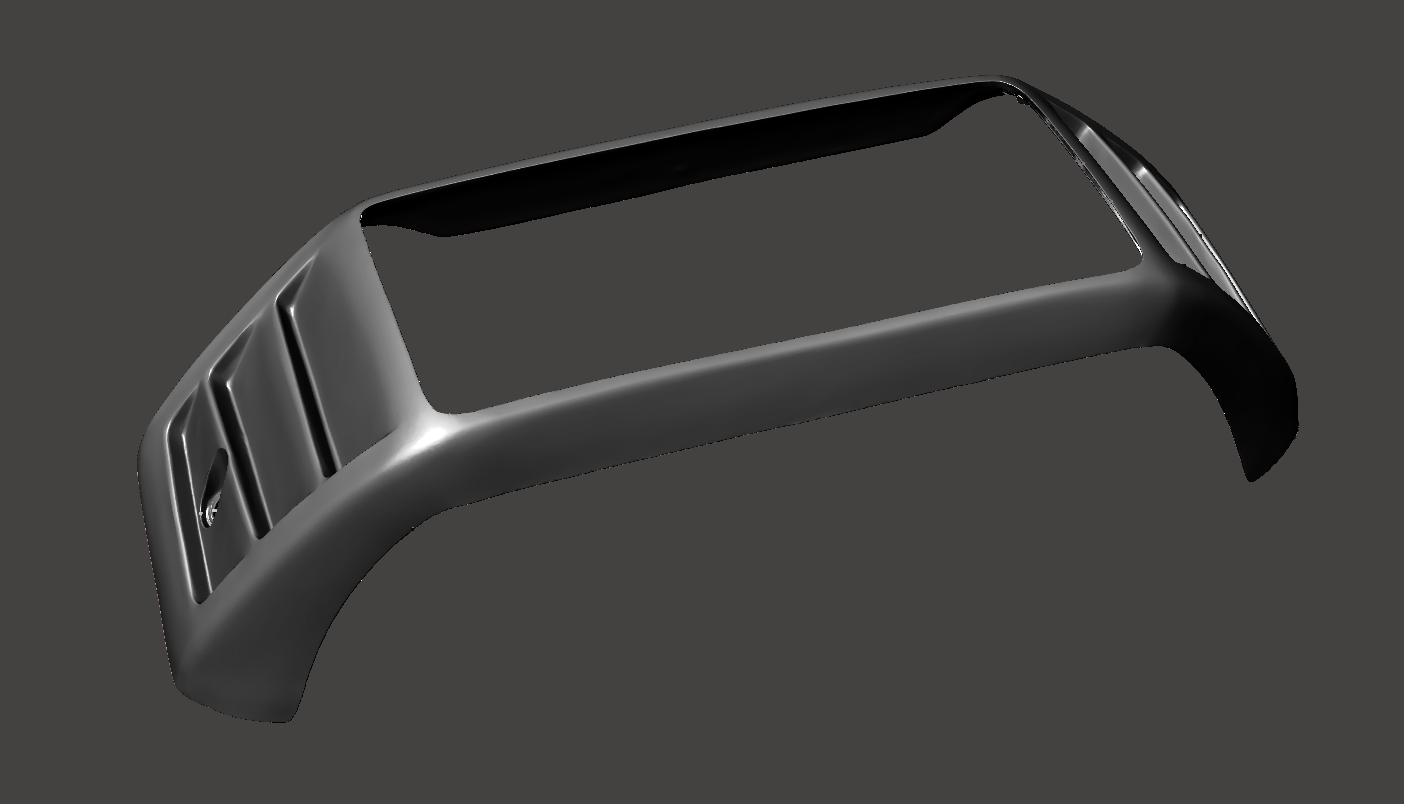

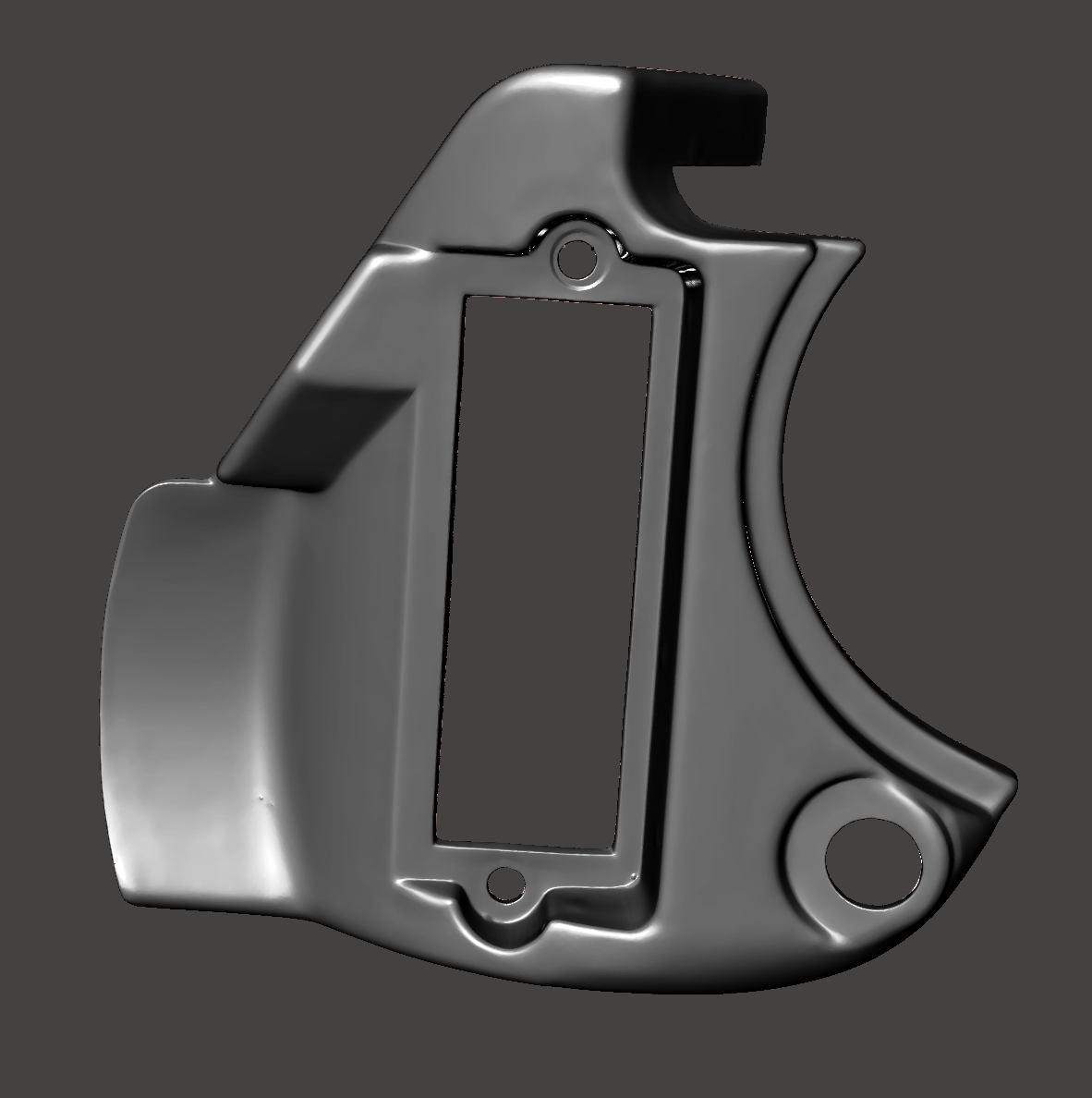

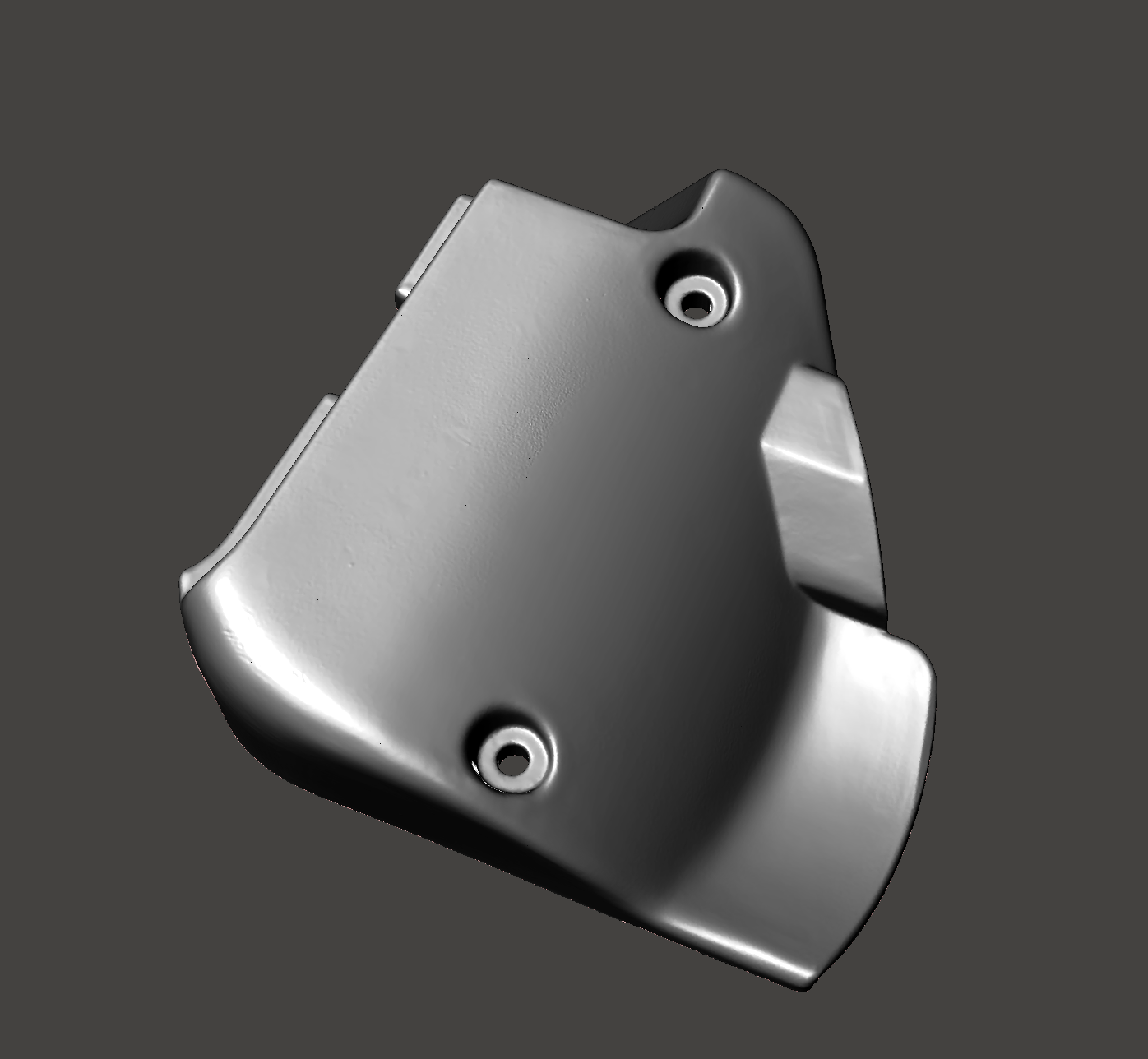

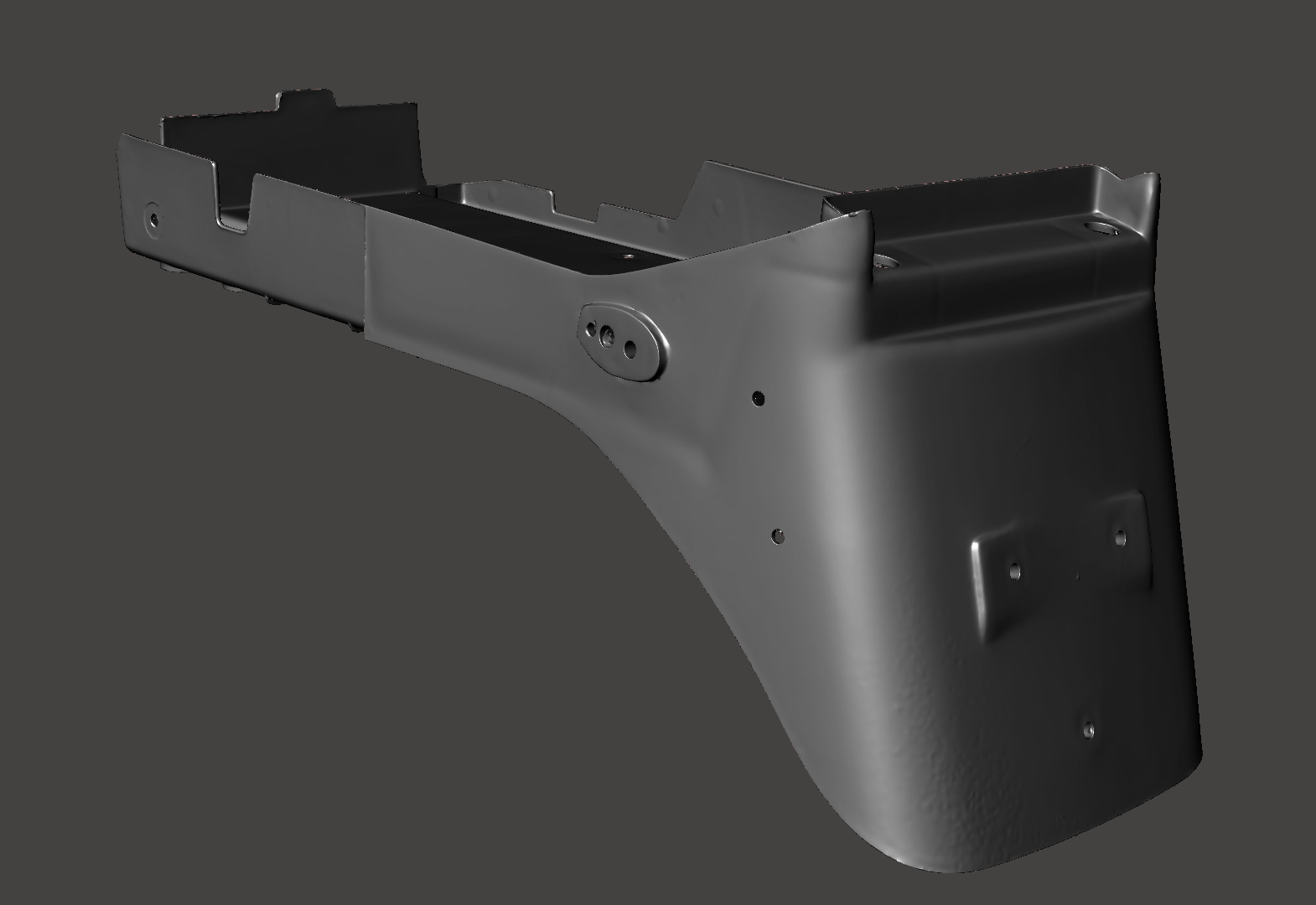

I have now bitten the bullet and got the Undertray and dash fuse and relay covers scanned at the same time professionally and now looking for a company to print some for me.

Let me know if any of you might want some of these bits as I know I can get discounts for a reasonable batch of parts 3D printed (10 or more at a time).

econti

I'd like to say, thank you so much for doing this, just from a standpoint of keeping the bikes alive. Car and bike communities need more people like you
