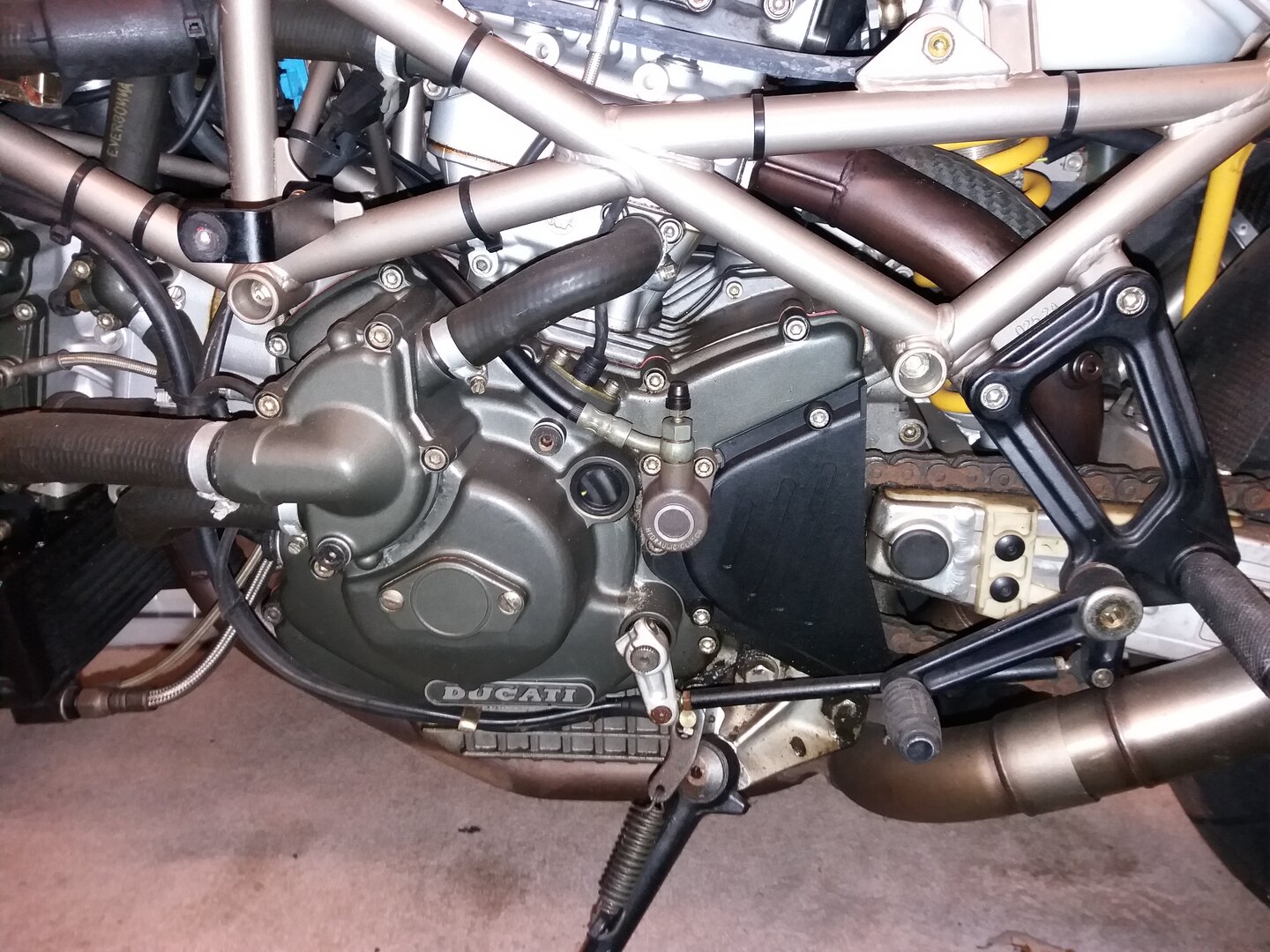

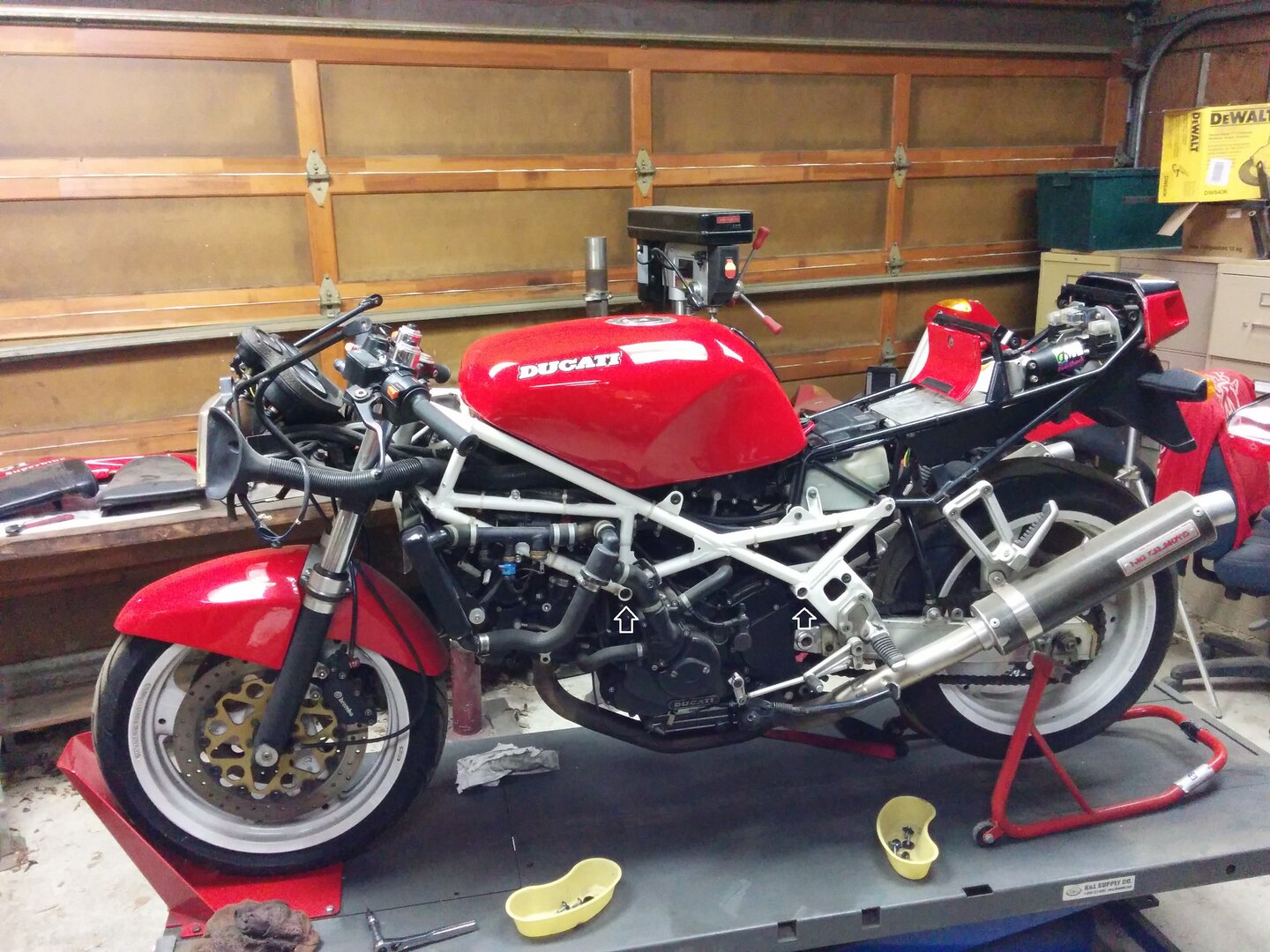

alan.r Hey guys wondering if anyone can help by measuring the frame hole diameter and depth in area shown. Also need to know at what height the different holes are from the ground. I don't have a bike at this time hence my asking for help. I'm buying a lift table and they have an option for a lifting arm that mounts to the frame holes of various bikes. They don't say what bikes, they supply different size sleeves so you have options. The kit is made by K&L Supply.
nalimugmug Hi, SP5 both wheels on the ground: Bike upright. Front lug: 19mm i/d. Depth to top of allen bolt 15.5 mm. From ground to centre of lug 504mm Rear lug: Same as above. From ground to centre of lug 480mm Hope this helps-stay safe Bob
