888 fuel pump and filter

johnboy888

Hi All,

In a bit of a bind, a long way from home with a dead fuel pump, I don't have a workshop manual etc handy, so I need part number (walpro ?) For the pump and diagram of how to connect pump and filter etc. Also what's the white plastic filter like thing in the tank on left side, it seemed to have only one tube going to it ?

Any and all help appreciated.

Thanks
John

Mr.R

Can't help with the Walbro part number, but the white plastic thing is a "degasser" to take the air bubbles out of the returning fuel.

Steve R

griff851

johnboy888

Thanks Griff, but that Bosch one looks a bit different to the Walbro one in that it does have the mesh pickup end sticking out a bit, does that matter ?

Also, do you know anywhere where I can get on in Gold Coast / Brisbane area off the shelf without paying Ducati dealer priced ?

Thanks
John

griff851

Hi John, sorry forgot you have the 888, that link is for the big crinkle edge 851 pump.
An Mx5 pump is very similar, it has spade connectors, I have one in the RR tank. If you have the ability to crimp on spade connectors it's too easy. As it's really just a standard injector fuel pump it will have been used on some car. Perhaps try taking it to Bursons or repco and we what they have. Worst case is a little wire crimping job. You might want go all out and actually get the proper spade connectors plug to fit the pump. I couldn't be arsed and the fuel tank hasn't exploded when I turn on the key yet.
Check your hoses for cracks and deterioration while your there. Gates do submersible hose but it's not cheap. An alternative is red chemical resistant hose from Tony Powell. Way cheaper. The truck world use it for diesel. I soaked a bit in fuel for a week to see if it turned to shit and it didn't so I used it. Just an option to consider.

brad black

i bought 50m of the gate stuff a few weeks ago. nowhere near as expensive as it used to be.

johnboy888

Thanks everyone, I was panicking a bit as the bike is going ona transport truck on Tuesday, but I have since found out that the trucking company don't start bikes they are moving, so I can take my time to source a replacement pump.

Also, I will need to replace the green O ring on the fuel filler, can anyone tell me the part number for that ?

Thanks heaps !?
John

Mick_ducati_888

Hope this helps

Please check out my video on 888 fuel pump replacement

https://youtu.be/l6tLS90wHbg

ducati dad

For the green O ring, try 88640111A

Steben

Hi Mick
I was just about to post a link to your video, it's a great help. I've just bought an 888 and one of my checks was a torch in the tank after watching your video , cheers. Mark

Whitto1

Parts

Have you tried Arthur at Desmo HQ in Byron Bay for the ring? 66856316. The 916 pump also is supposed to fit with the smaller rubber mount. Ring pt 886400111A
Ill check the Bosch and Walbro numbers in the morning.

Also, I will need to replace the green O ring on the fuel filler, can anyone tell me the part number for that ?

Thanks heaps !?
John[/QUOTE]

johnboy888

ducati dad wroteFor the green O ring, try 88640111A

Thanks, picked one up at local Duck dealer, at a surprisingly reasonable price.

Cheers
John

flinty

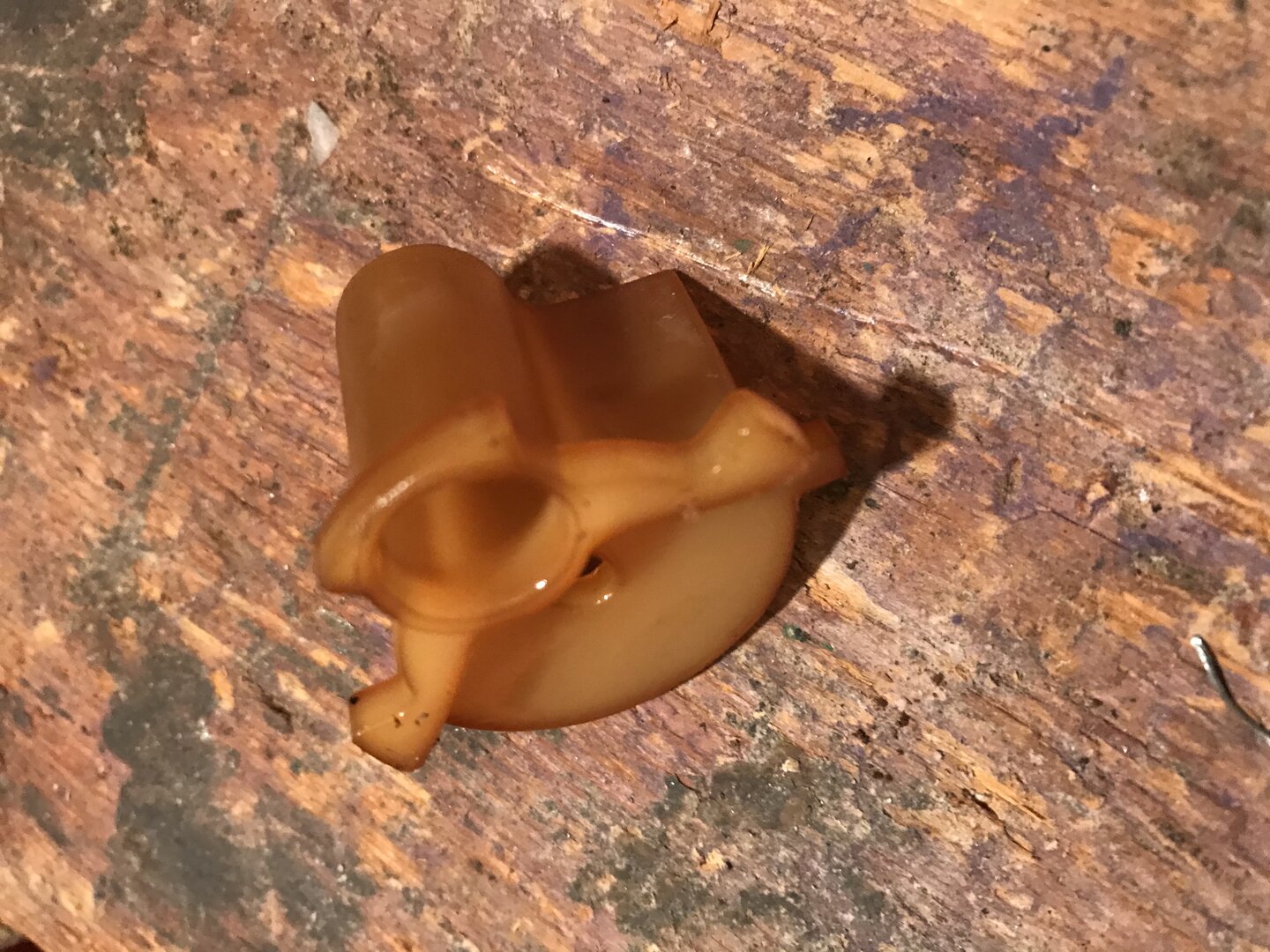

anyone recognise this little fella? part of the 'degasator'? does the degasator even dismantle into separate parts? found in the bottom of my 888 fuel tank, everything looks ok, so its got me puzzled..

thanks
Gavin

johnboy888

Taking the opportunity of a long weekend to strip down my tank, but I'm stuck with removing the degasser.

Can anyone tell me how to detach the degasser ? Do I just pull harder, or is there some trick with the black metal clip things ?

Any help appreciated.

Thanks
John

johnboy888

flinty wroteanyone recognise this little fella? part of the 'degasator'? does the degasator even dismantle into separate parts? found in the bottom of my 888 fuel tank, everything looks ok, so its got me puzzled.. thanks Gavin

That doesn't look anything like my degasser, not sure if it come apart yet, and I'm yet to get mine out of the tank.

Cheers,
John
