Some front subframe measurement help, please.

PTwo

Hello,
My front subframe isn't true. I believe the left mirror/fairing mount is off. Can someone please measure the distance from the RHS frame mount to the rearmost mirror/fairing mount, on the mating face/outside? The frame mount is a slot so maybe measure from the bottom of the flange that the slot is in?

Thanks!
Peter

stiglarsenDK

PTwo wroteHello, My front subframe isn't true. I believe the left mirror/fairing mount is off. Can someone please measure the distance from the RHS frame mount to the rearmost mirror/fairing mount, on the mating face/outside? The frame mount is a slot so maybe measure from the bottom of the flange that the slot is in? Thanks! Peter

Hi peter, I'm quite sure left and right is 100% symmetrical.. I'll check mine

PTwo

stiglarsenDK wroteHi peter, I'm quite sure left and right is 100% symmetrical.. I'll check mine

Great! Thanks for the help. Symmetrical, yes, but I don't know which side of mine is correct! That measurement would really help

stiglarsenDK

PTwo wroteGreat! Thanks for the help. Symmetrical, yes, but I don't know which side of mine is correct! That measurement would really help

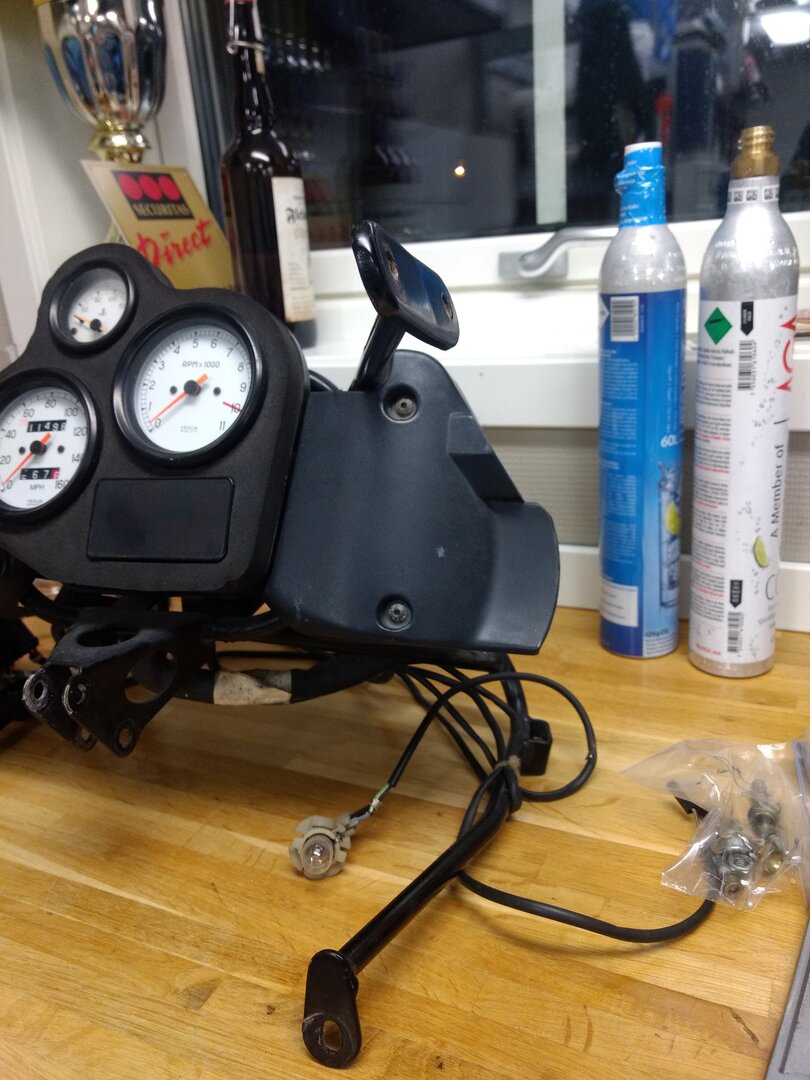

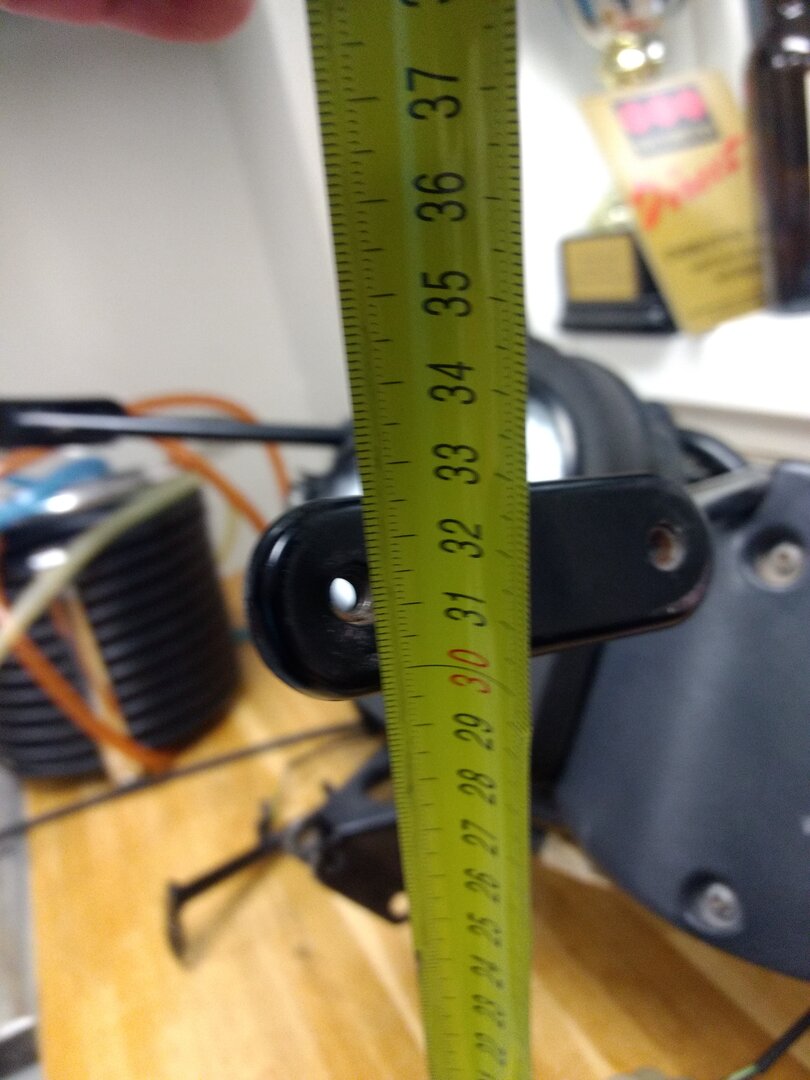

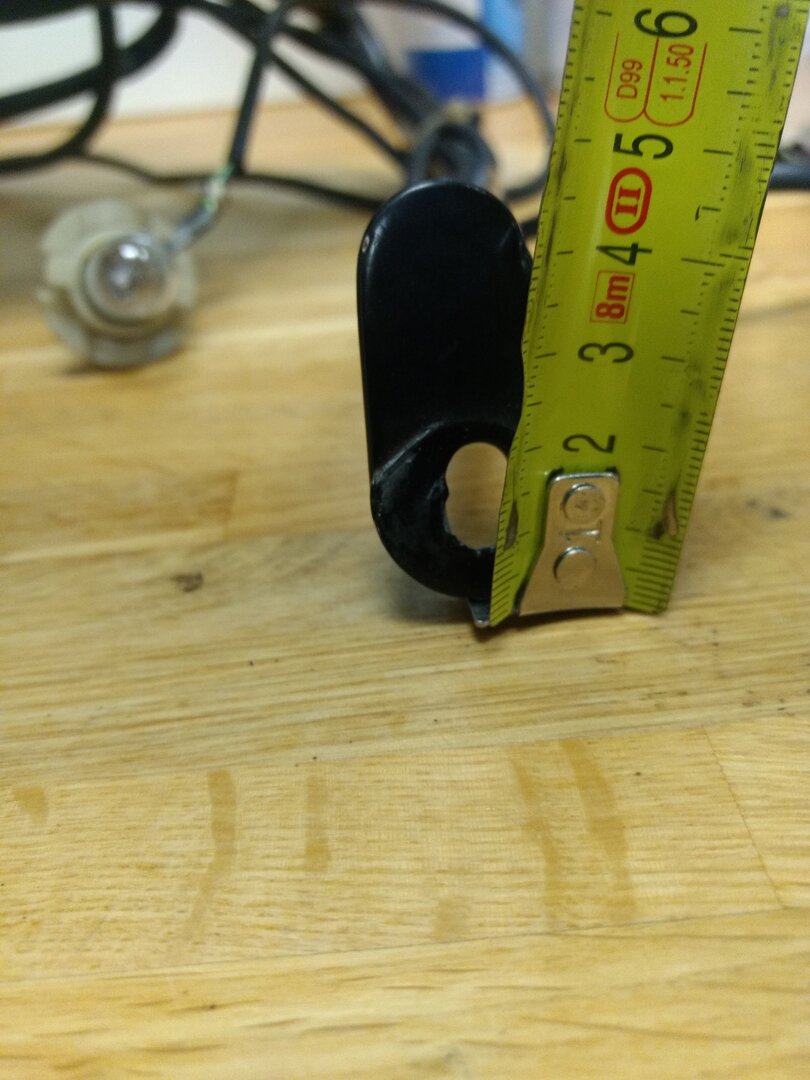

Hi Peter , i messsure 300 mm on mine ... both sides :-) i have meassured a few units

PTwo

stiglarsenDK wroteHi Peter , i messsure 300 mm on mine ... both sides :-) i have meassured a few units

Great, thanks. Just to be sure, the 300mm was between what and what? Best to confirm before I start bending...

Thanks,
Peter
